Forums >> Revit Structure >> Technical Support >> Roof Help Back Slope, Top Chord Extension
|
|
|
active
Joined: Fri, Sep 24, 2010
35 Posts
 |

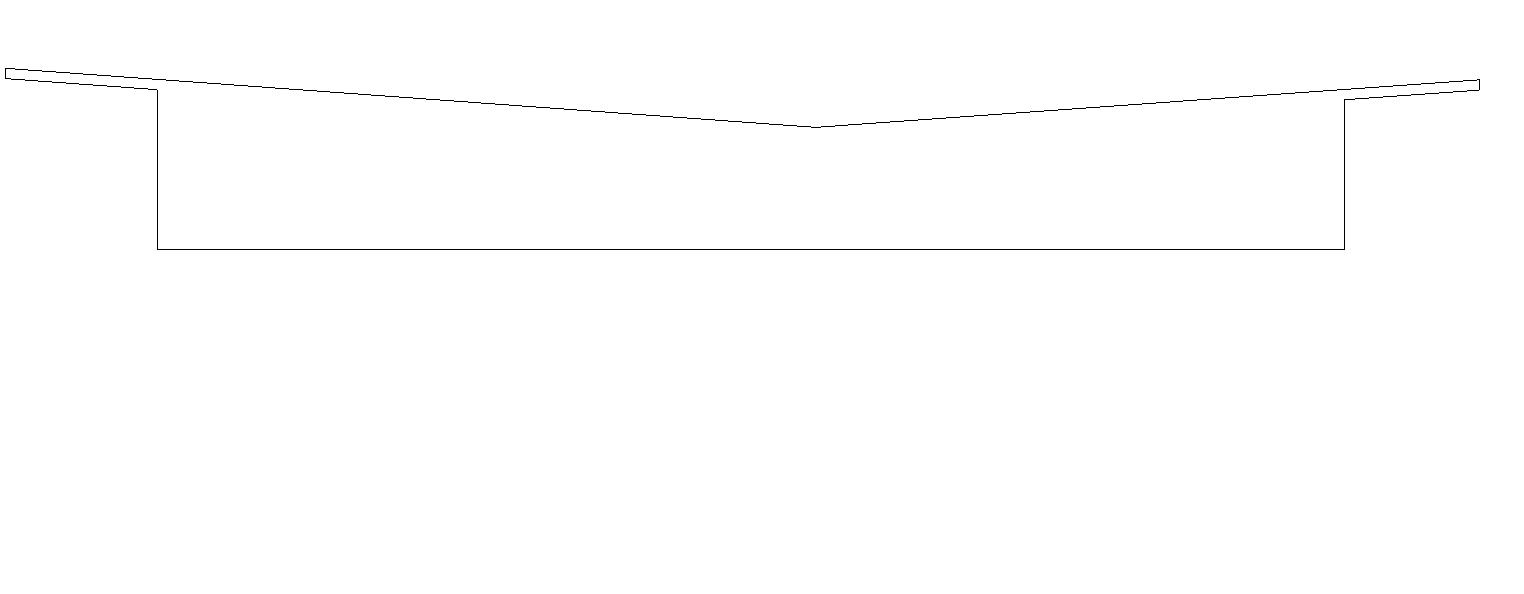

How do I make a roof profile as shown on the attached? Roof by Extrusion will not allow a closed loop. I made the top chord with extrusion and vertical openings. But that won't work with the depth as shown, because I need the heel height to follow the wall jogs.
Edited on: Fri, Jan 28, 2011 at 5:35:17 PM
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |

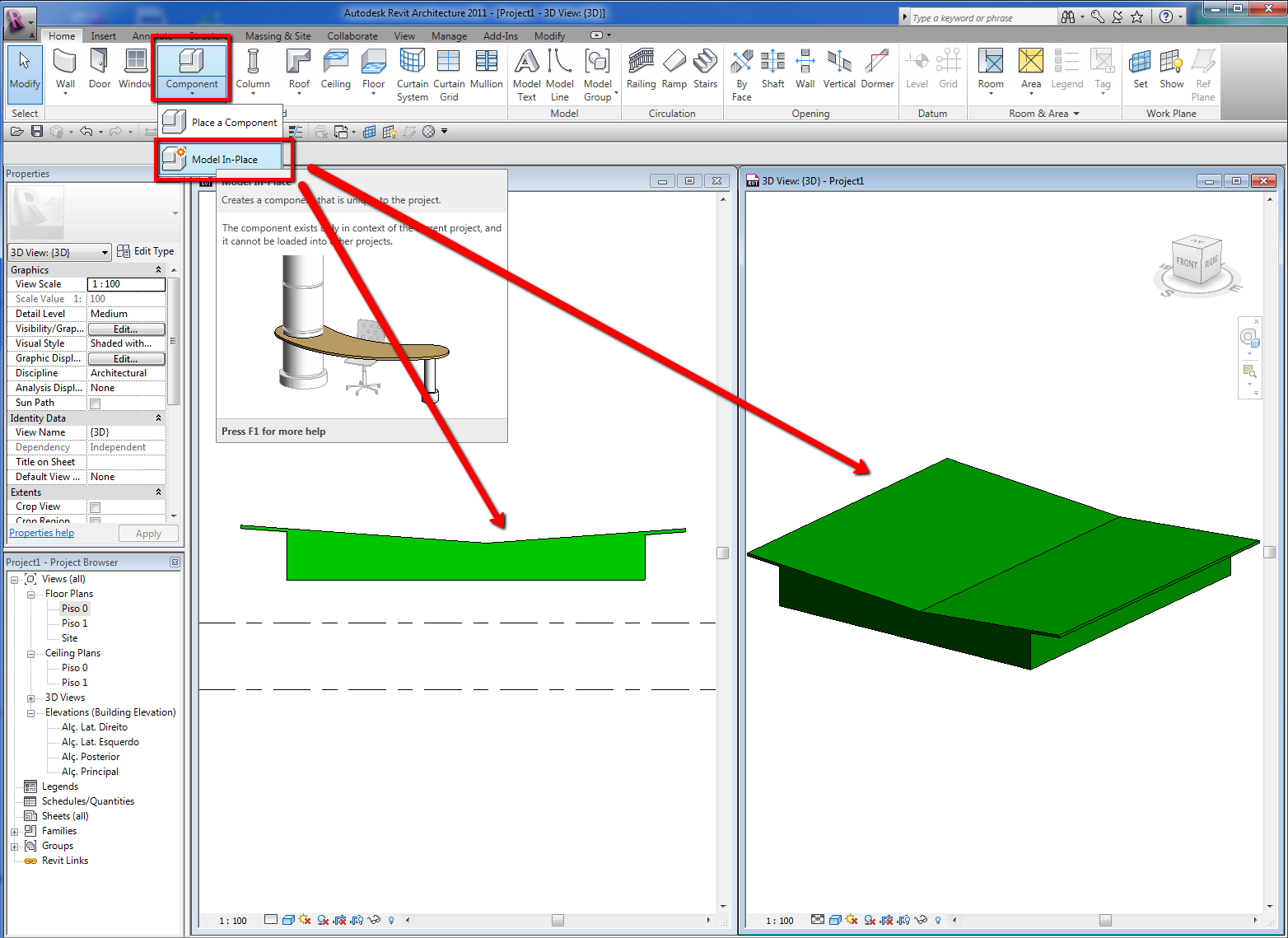

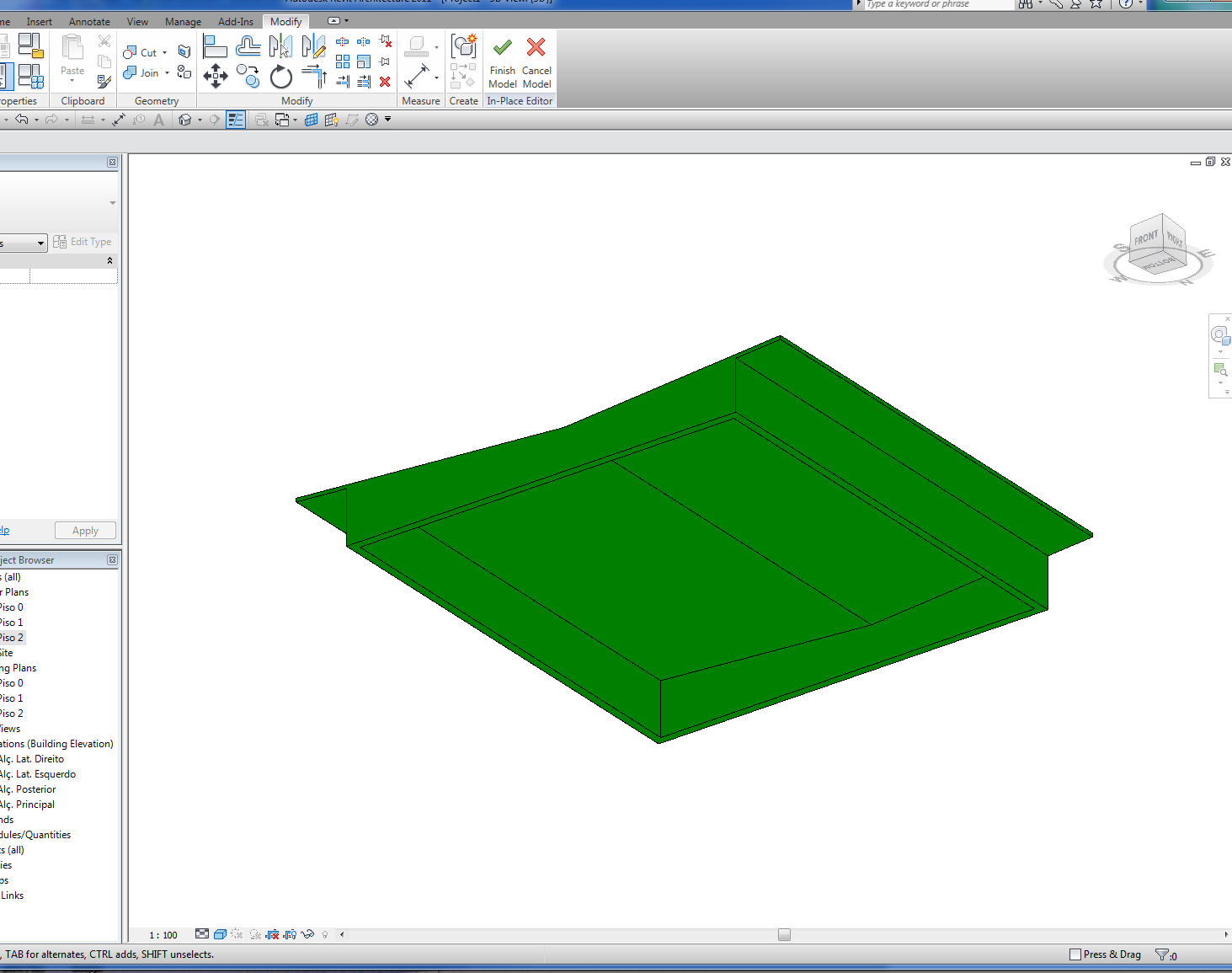

use the Create "In-Place" category "Roof" Watch the video: http://screencast.com/t/DdOqeBEVk
Edited on: Sat, Jan 29, 2011 at 7:02:59 AM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
