Forums >> Revit Building >> Technical Support >> Joining Roof By Extrusion

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jan 28, 2011 at 8:35:25 PM | Joining Roof By Extrusion

#1

palladio1234


active

Joined: Wed, Jan 6, 2010
99 Posts
5 Stars: 2 Votes

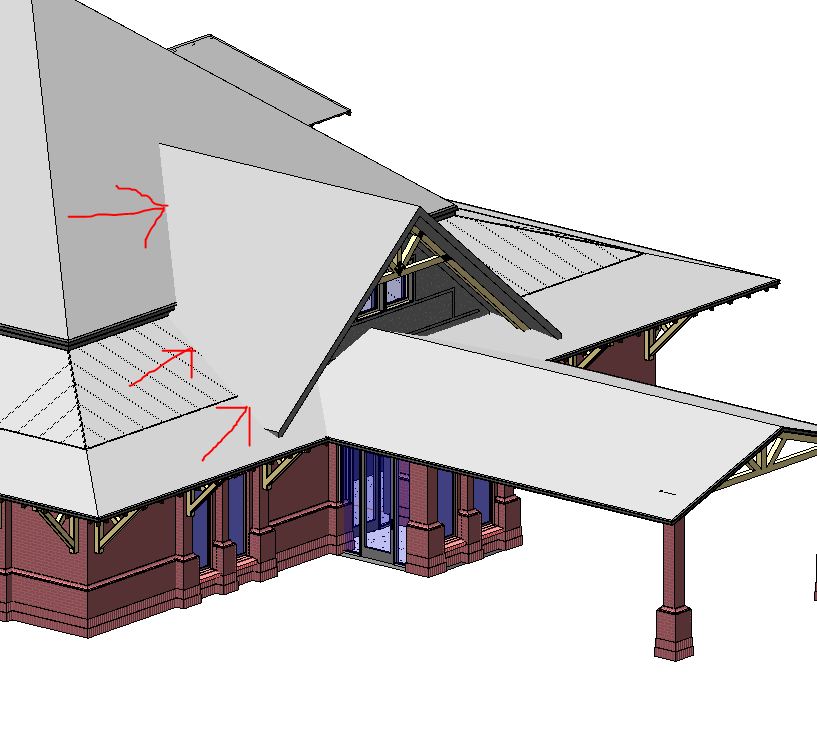

I cant seem to join the "roof by extrusion" into the two "roofs by foot print."   I can join the "roof by extrusion" to the top "roof by footprint"Crying10"/12" slope).  When I try and join the roof to the bottom "roof by footprint" (4"/12" slope) it says "roof cannot be joined."



 I tried going into section and creating a void roof extrusion to try and cut the roof geometry to fit the appropriate roof slopes (kinda like you would in conceptual mass), but it says "there is a circular chain among references."



 Any help would be much appreciated because I am trying to get my sections looking correctly and not have these "roofs by extrusion" jutting into the attic space used for storage.



Attached Images


This user is offline

View Website

Sat, Jan 29, 2011 at 12:16:46 PM | Joining Roof By Extrusion

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Watch the video: http://screencast.com/t/2L4RvpUyVk0k

Here you have the "roof" so you can take a look.





Edited on: Sat, Jan 29, 2011 at 6:29:08 AM

Attached Files

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Jan 31, 2011 at 2:15:14 PM | Joining Roof By Extrusion

#3

palladio1234


active

Joined: Wed, Jan 6, 2010
99 Posts
5 Stars: 2 Votes


thank you typhoon for that excellent response : )

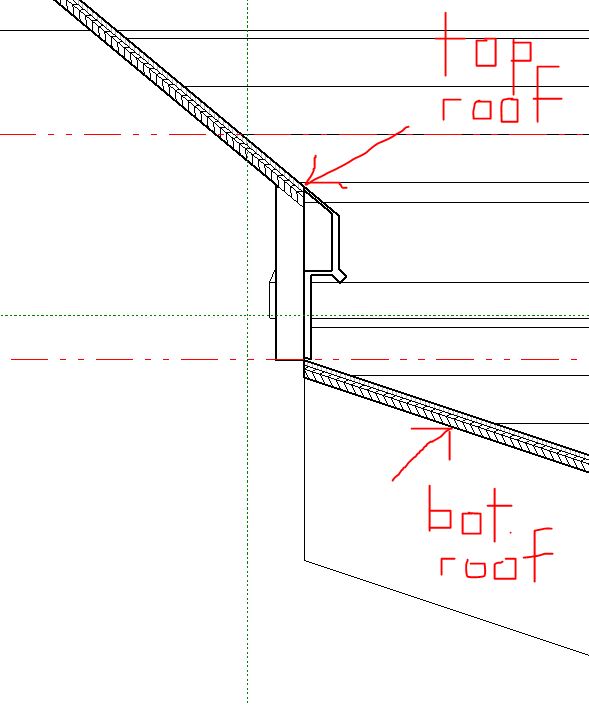

I see in your video how the two roofs can be joined.  The difference with my roof problem is that the bottom roof does not go up and under the top roof.  It stops at the change in roof slope and the top roof begins slightly above the change  in roof slope.  Connecting the two roofs is a fascia board with flashing.  This roof is held up by trusses and the decking lays onto it taking the form of the truss.



Any ideas?



Attached Images


This user is offline

View Website
