Fri, Jan 28, 2011 at 2:23:55 PM | Beam System Rafter Joins

#1

palladio1234


active

Joined: Wed, Jan 6, 2010
99 Posts
5 Stars: 2 Votes

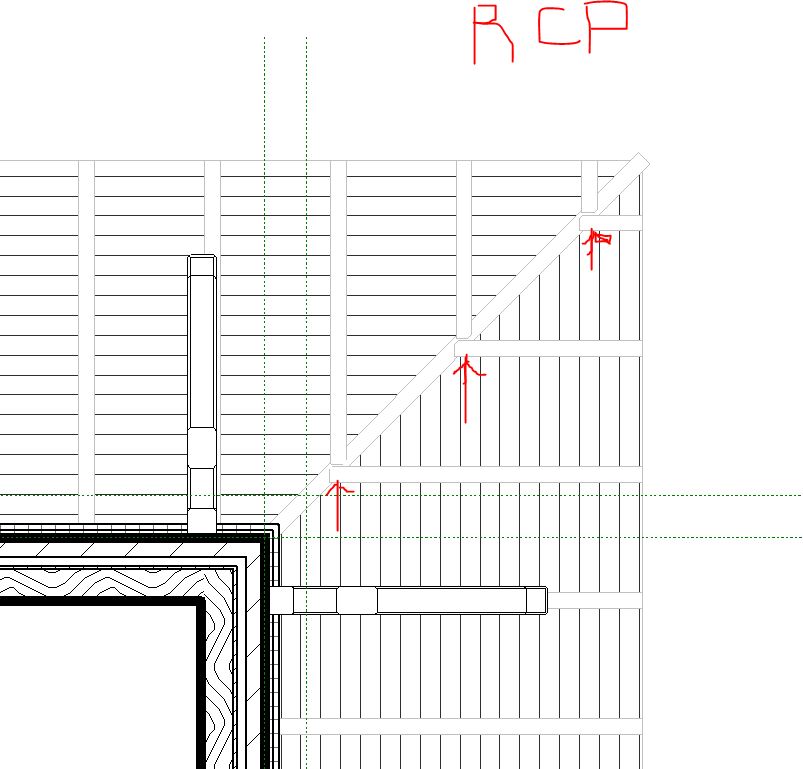

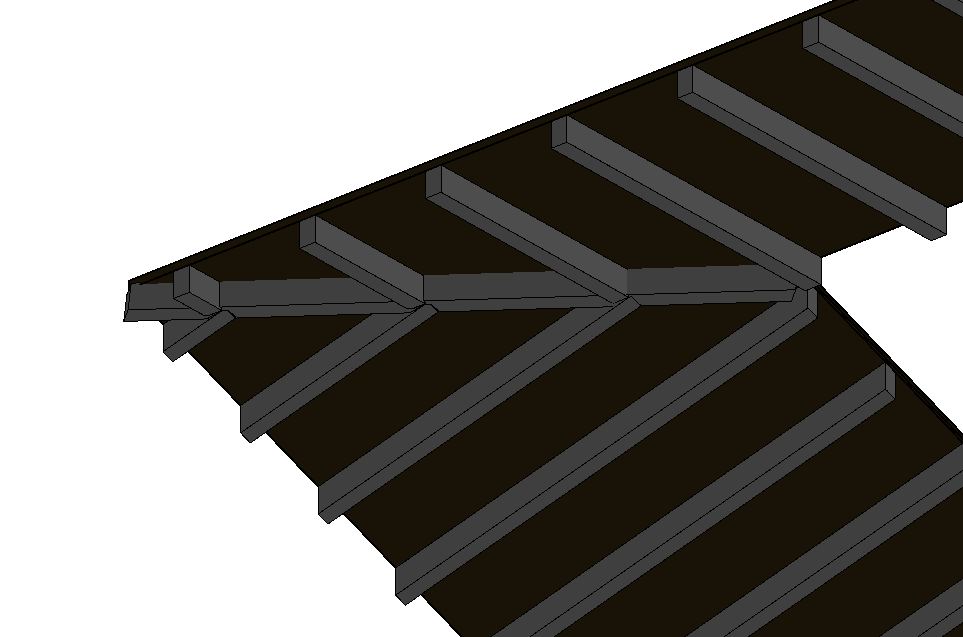

Is there a way to clean up rafter joins from beam systems? If you look at the images attached I am trying to get a clean trim at the rafter intersections.  Can anyone help me with this?  I feel like I am missing something.

Attached Images


This user is offline

View Website

Mon, Jan 31, 2011 at 9:29:34 PM | Beam System Rafter Joins

#2

DeifyMe


active

Joined: Thu, Oct 7, 2010
64 Posts
4 Stars: 2 Votes


the only way i've gotten this to look right is by creating reference planes on each face of the diagonal member and then individually cutting the joing members using "cut geometry".

This user is offline



Tue, Feb 1, 2011 at 6:50:38 PM | Beam System Rafter Joins

#3

palladio1234


active

Joined: Wed, Jan 6, 2010
99 Posts
5 Stars: 2 Votes


Interesting... I will try this.  Thank you for the reply!

This user is offline

View Website

Tue, Feb 1, 2011 at 11:22:59 PM | Beam System Rafter Joins

#4

rudyard


active

Joined: Tue, Jun 27, 2006
58 Posts
1 Stars: 1 Votes


Sorry as this is not a solution but a question, what tool are you making your rafters with?

This user is offline



Wed, Feb 2, 2011 at 10:57:07 PM | Beam System Rafter Joins

#5

palladio1234


active

Joined: Wed, Jan 6, 2010
99 Posts
5 Stars: 2 Votes


I am using the beam system tool for those rafters.

This user is offline

View Website
