Thu, Jan 20, 2011 at 6:44:39 PM | Curved Angled Glass Walls

#1

NickDesert


active

Joined: Tue, Jan 19, 2010
5 Posts
3.5 Stars: 3 Votes


Hey everyone,



I am currently having MAJOR problems with creating curved angled glass walls. I have to build 15 walls which are angled to the same degree as my columns. I have tried creating masses, which I finally managed to.. only to have Revit tell me that I cannot use the mass to create a glass wall, even though I managed with one already.

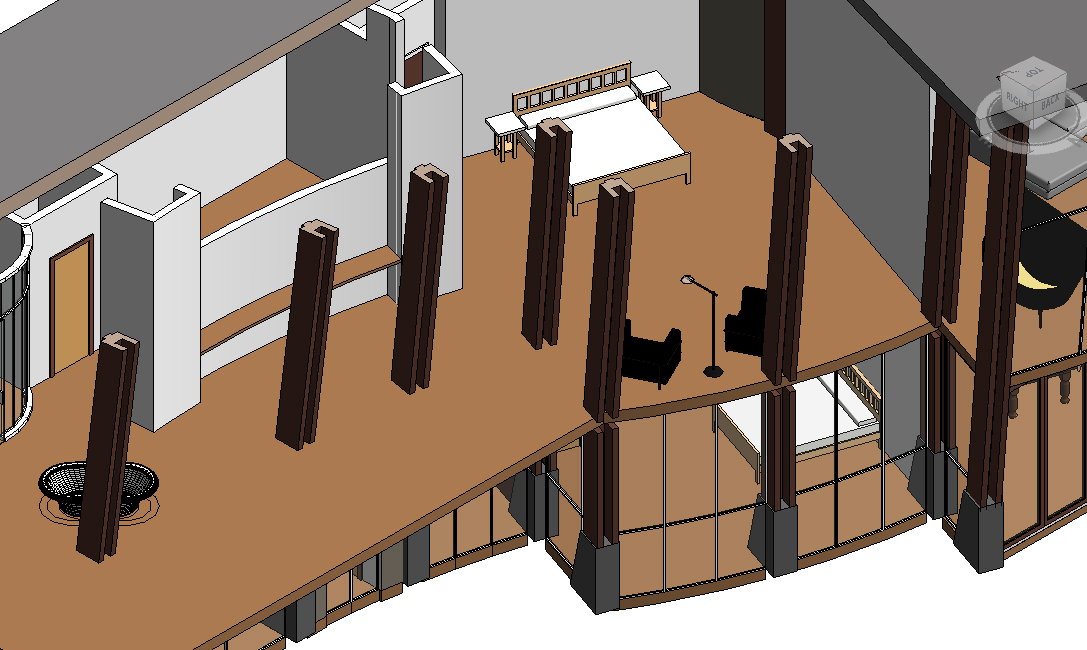

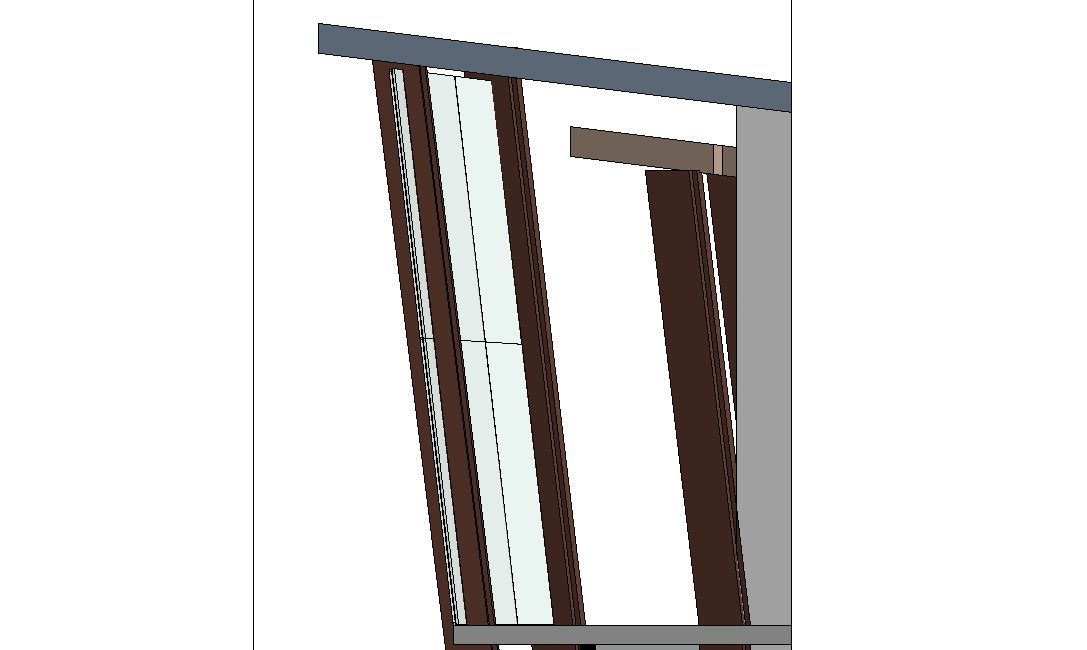

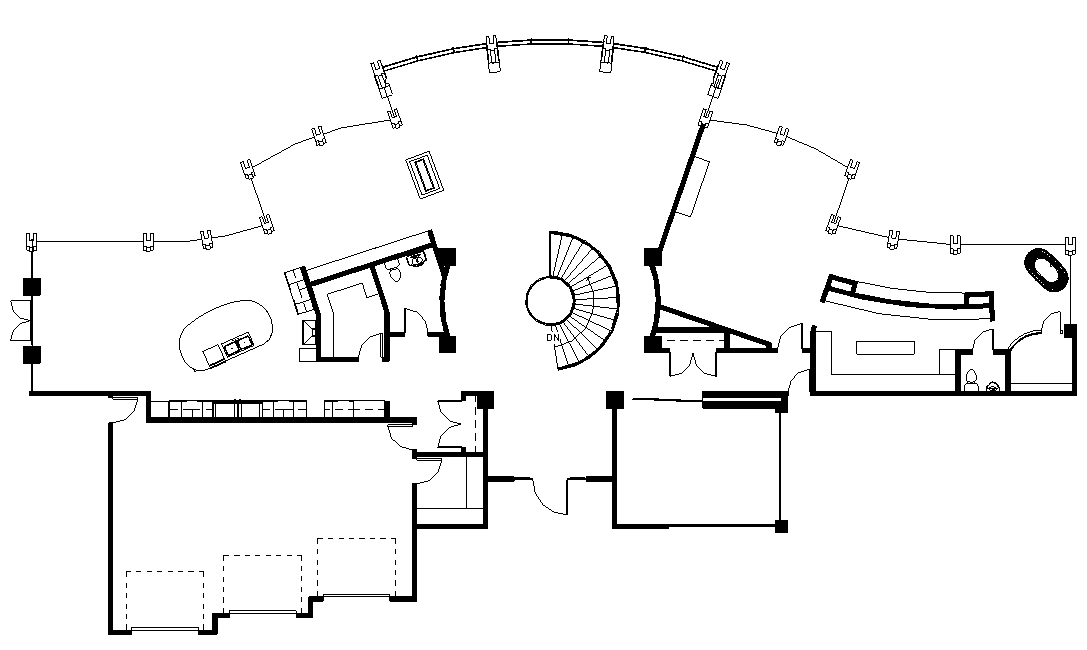

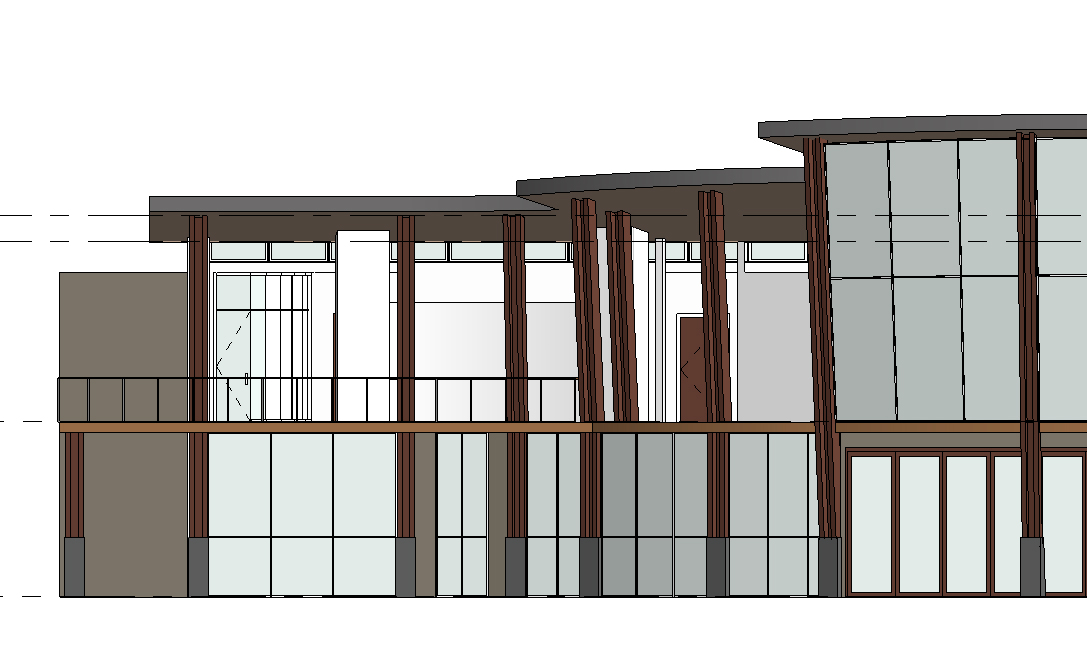

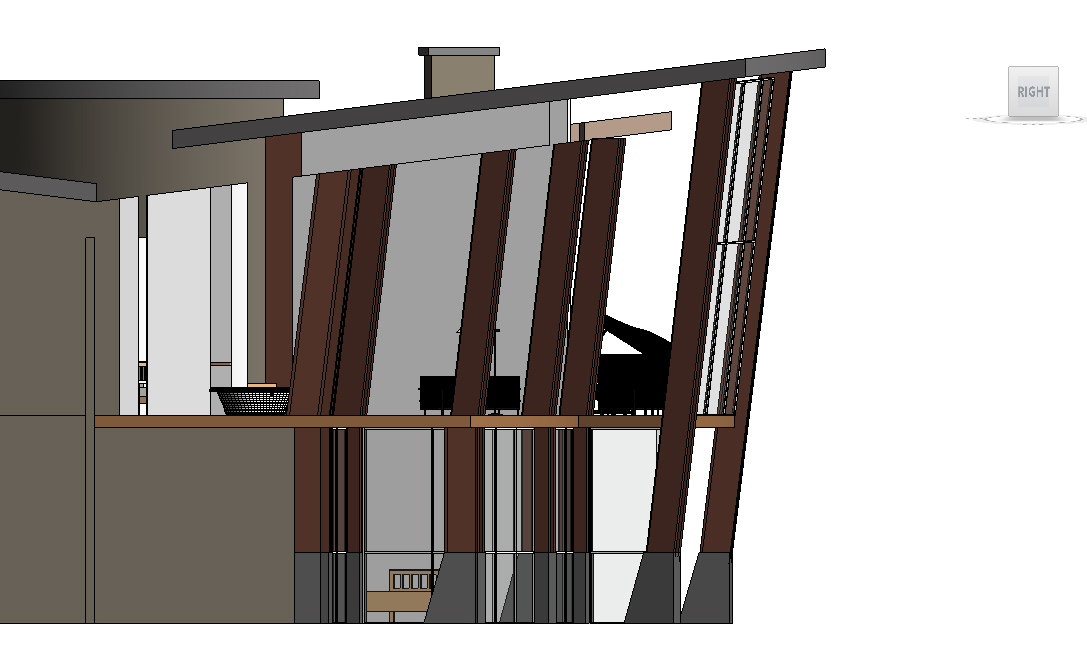

I have attached some images of the building, if anyone has any suggestions as to how I can put the walls in they would be greatly appreciated.



Thanks,



Nick



Attached Images


This user is offline



Thu, Jan 20, 2011 at 7:01:41 PM | Curved Angled Glass Walls

#2

MADnes


active

Joined: Mon, May 5, 2008
12 Posts
No Rating


WHAT METHOD DID YOU USE TO CREATE YOUR MASS, EXTRUSION, SWEEP ETC...?

-----------------------------------

Gabriel Flores AAS/CDD, BS/CM



This user is offline



Thu, Jan 20, 2011 at 7:02:57 PM | Curved Angled Glass Walls

#3

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

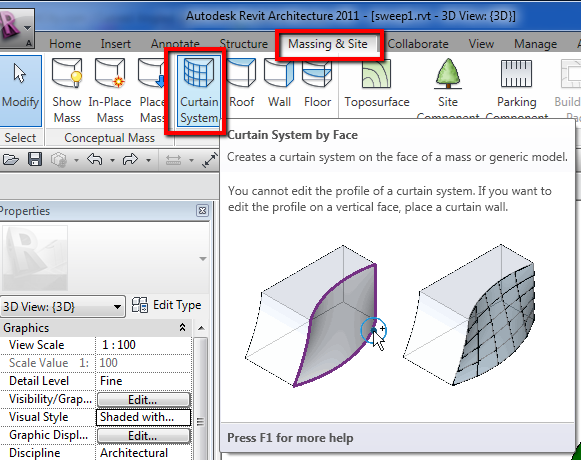

Did you create the "Mass" then create a "Curtain System" by face?





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Jan 20, 2011 at 7:23:47 PM | Curved Angled Glass Walls

#4

itsmyalterego


active
itsmyalterego Avatar

Joined: Fri, May 29, 2009
829 Posts
4 Stars: 16 Votes


Hey there,

 That's right, you use a curtain system, instead of trying to apply a curtain -wall- by face.  If you don't want to use massing, you can build a swept blend in the generic model category, and then hide it.

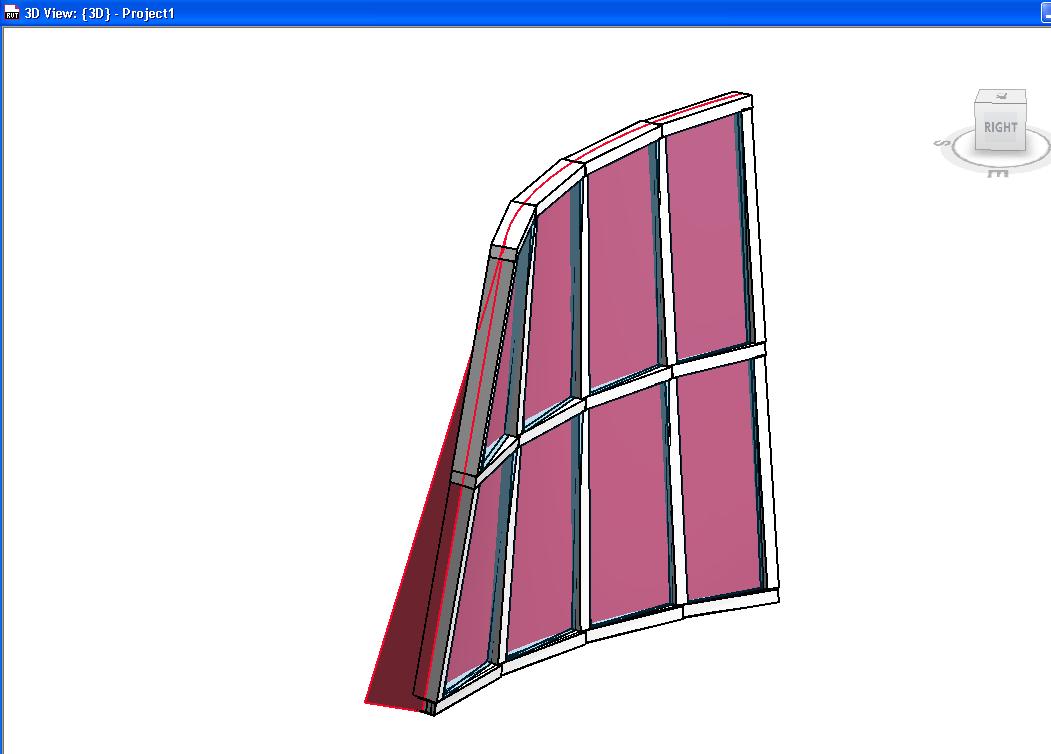

attached is a picture of a curtain system applied to a swept blend face.  You may need to make a new curtain system type, the default is 5x10 panels.







Edited on: Thu, Jan 20, 2011 at 1:24:24 PM

Attached Images


This user is offline



Thu, Jan 20, 2011 at 9:01:49 PM | Curved Angled Glass Walls

#5

NickDesert


active

Joined: Tue, Jan 19, 2010
5 Posts
3.5 Stars: 3 Votes


Thanks,

 I managed to align a level to the top of each of the columns so that I could make masses that go all the way to the underside of the roof.

Apparently the method I was using before wasn't working... But I can now create the masses and create curtain wall system from face... Thanks!!
