Forums >> Community >> Newbies >> How do you center a cased opening in a wall?

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jan 12, 2011 at 6:02:55 AM | How do you center a cased opening in a wall?

#1

GeneLaratonda


active
GeneLaratonda Avatar

Joined: Wed, Jan 12, 2011
9 Posts
No Rating


I'm just trying to work through the Autodesk Revit Architecture 2011: No Experience Required book by Eric Wing and am having problems with something pretty basic from what I'm reading around here.  :o

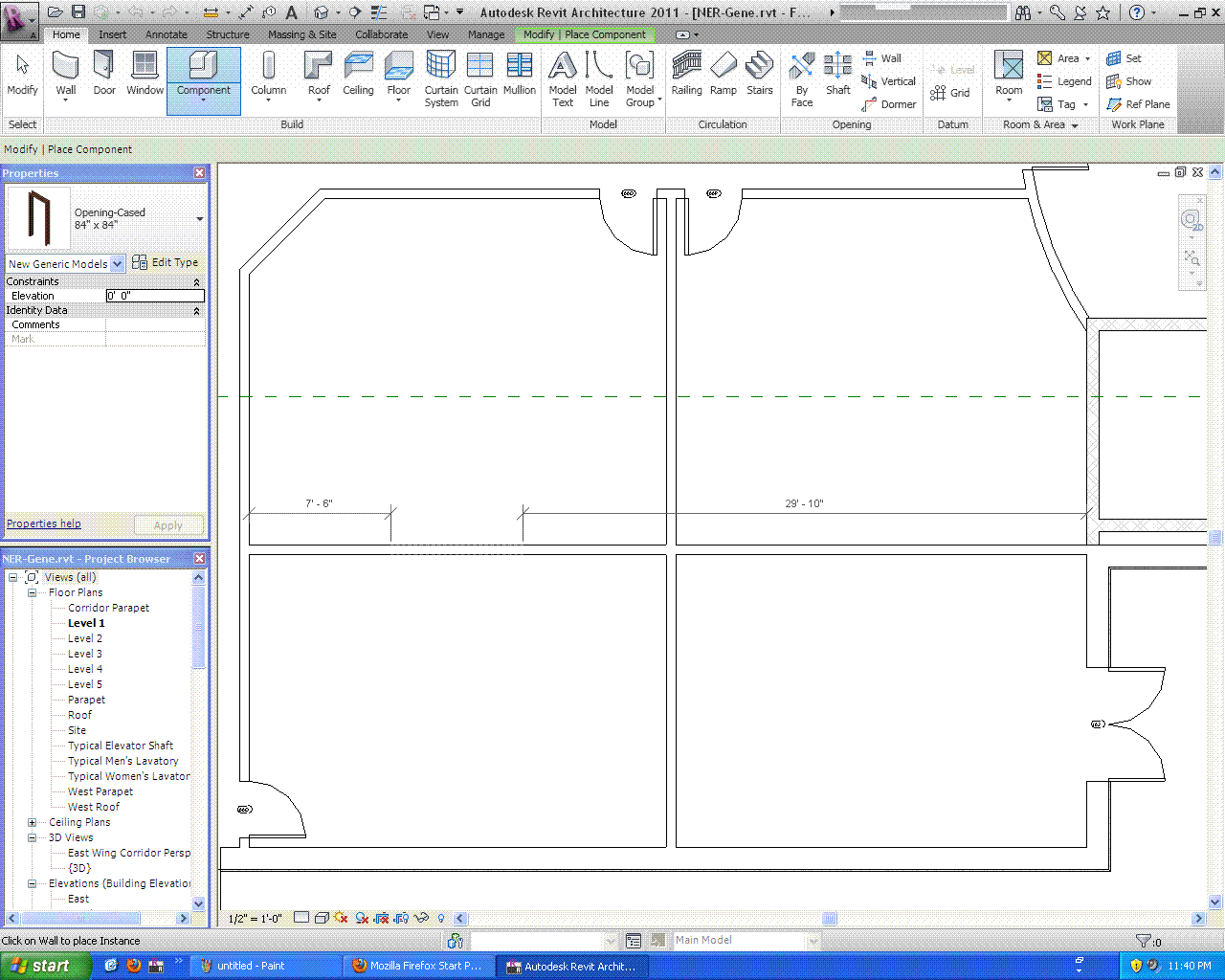

If anyone has the book it's on page 195. In Figure 4.52 the bottom right-hand quadrant of four rooms has cased openings between them. When I go to place the cased opening as a component the temporary dimensions do everything but centerline of the opening to the center point of a length of wall. I thought a triangle was supposed to show up, but nooooo. I tried the align tool and was able to select the center of the cased opening, but there was no reference line to mark the center point of the length of wall.

That's a real bummer when I have soooo much more to learn and am getting stuck on this.



Thanks,

Gene



Attached Images


This user is offline

View Website

Wed, Jan 12, 2011 at 1:47:14 PM | How do you center a cased opening in a wall?

#2

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


you will find in Revit that even though a continuous wall is broken, Revit still treats the wall as continuous segment when placing objects in that wall.

Edited on: Wed, Jan 12, 2011 at 12:22:48 PM

-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Wed, Jan 12, 2011 at 5:24:05 PM | How do you center a cased opening in a wall?

#3

GeneLaratonda


active
GeneLaratonda Avatar

Joined: Wed, Jan 12, 2011
9 Posts
No Rating


So, the least complicated way to do this would be to do a little math (length of wall minus opening size, divided by two), use a temporary dimension, and place it by the side of the opening in the length of wall?

...or use the offset tool with a reference line at that same number.





Edited on: Wed, Jan 12, 2011 at 1:39:56 PM

This user is offline

View Website

Wed, Jan 12, 2011 at 6:16:51 PM | How do you center a cased opening in a wall?

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 362 Votes


No, the easiest way to locate your opening is to quicky add a dimension from wall to opening center to wall then click on the EQ and delete the dimension.

This user is offline



Wed, Jan 12, 2011 at 7:49:38 PM | WWHub

#5

GeneLaratonda


active
GeneLaratonda Avatar

Joined: Wed, Jan 12, 2011
9 Posts
No Rating


Quoting WWHub from 2011-01-12 12:16:51

"No, the easiest way to locate your opening is to quicky add a dimension from wall to opening center to wall then click on the EQ and delete the dimension."

That did it!

 As a newbie to Revit I'm going through the book I mentioned. After that I was going to go through a bunch of videos on YouTube created by Autodesk Student Experts TU Graz from Austria. After that I was going to dive into the Mastering book that is the official guide.

Do yinz think I could be ready for the certification by then or are there other resources you recommend?

Thanks,

Gene

 ps Did you hear? Pittsburgh's goin' to the Super Bowl.  ;o)





Edited on: Wed, Jan 12, 2011 at 4:23:02 PM

This user is offline

View Website
