Forums >> Revit Building >> Technical Support >> Glass panel railing help

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jan 7, 2011 at 11:08:54 AM | Glass panel railing help

#1

arusso5


active

Joined: Mon, Aug 10, 2009
97 Posts
No Rating

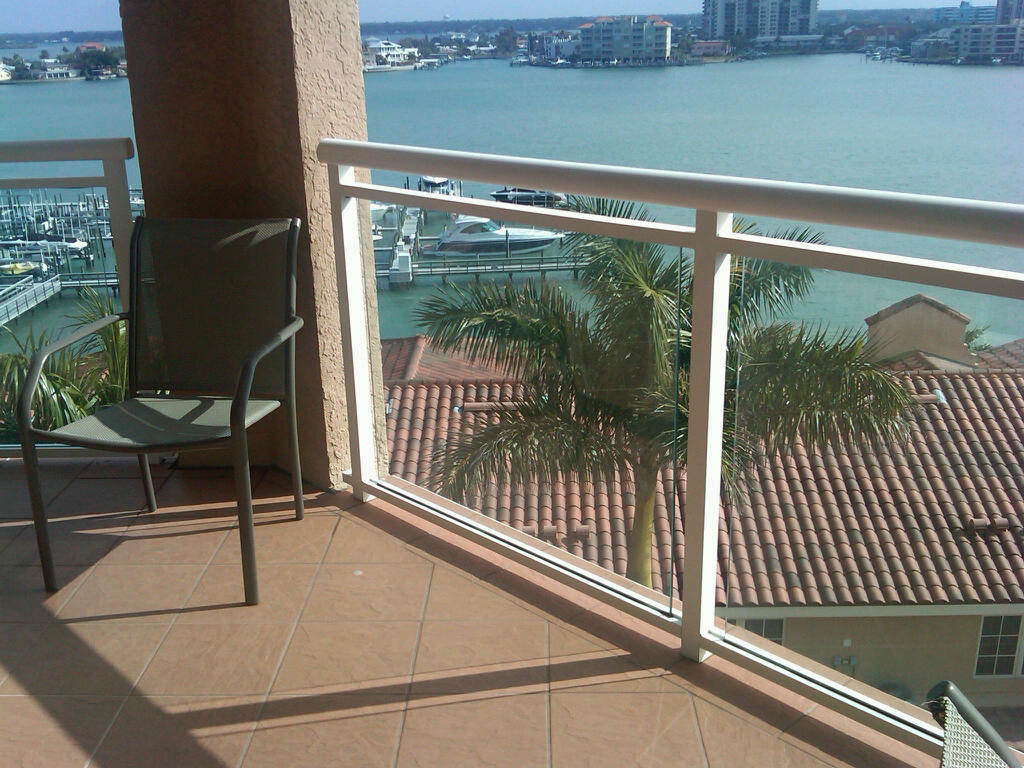

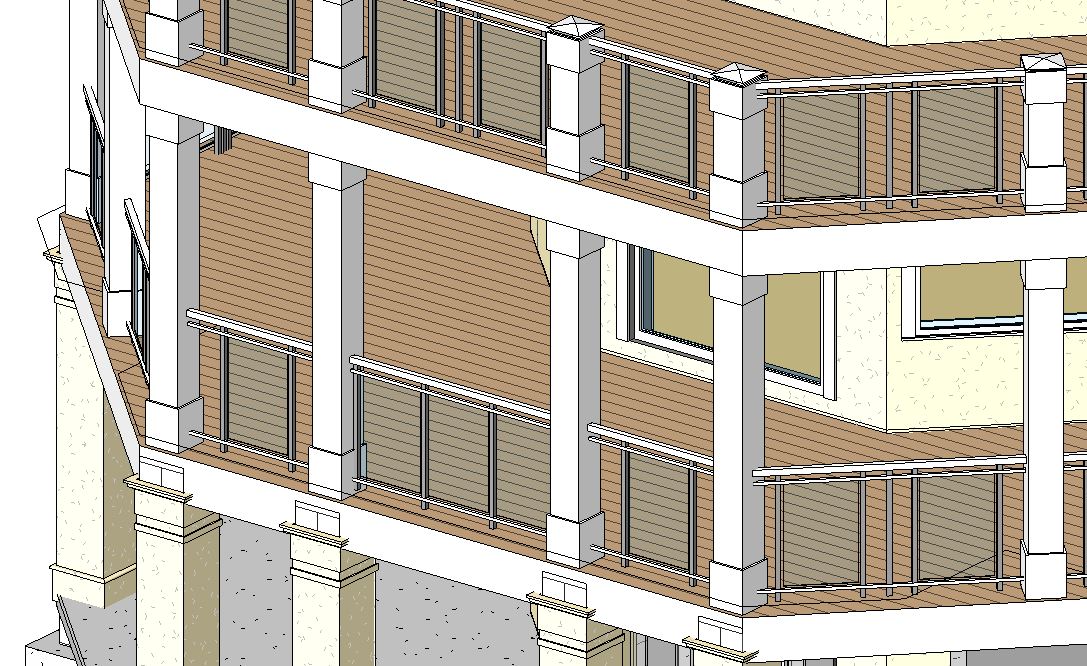

I'm using both Revit Architecture 2010 and 2011 and I have a residential client who wants a railing that is glass panels with aluminum rails and balusters.  I have attached a few pictures of what he wants.  I found a similar railing and have modified the rails and balusters, but I can get the glass width to adjust.  The glass panels are 24" wide.  My railing is set between 12" posts that are independent of the railing so if the railing section is only 4' long, the railing centers i pice of glass in the railing. Please see attached view.  Can anyone help me solve this?  It's quite frustrating.





Attached Images


This user is offline



Fri, Jan 7, 2011 at 12:43:55 PM | Glass panel railing help

#2

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 13 Votes


think I would do it with storefront for the wall portion with a separate rail, just a thought you will need to maintain only 4" clear openings I think


This user is offline



Fri, Jan 7, 2011 at 3:23:21 PM | Glass panel railing help

#3

Bimman


active
Bimman Avatar

Joined: Wed, Dec 17, 2003
360 Posts
1 Stars: 2 Votes


I WOULD DO IT AS INPLACE FAMILIES USING EXTRUSIONS AND SWEEPS. SETTING THE MATERIALS FOR THE PIECES AS I DESIGN THEM.  ARE THE PANELS YOU WANT TO ADJUST INPLACE FAMILIES. IF SO YOU WILL NEED TO EDIT THEM INDIVIDUALLY. MAY BE THE REASON YOU CANT GET THEM TO ADJUST.

-----------------------------------
PWD

This user is offline

View Website
