I'm modeling a house in Revit based on 2d plans. The ceiling plans call for a "Quine Vault Ceiling" which I'm assuming would be like a Groin vault? Any idea how to model this? Thanks.
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
Do you have any image about that "Quine Vault Ceiling"?
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
If you google this you will only find reference to this term in some French books. Good luck with this.
|
This user is offline |
|
|
|
active
Joined: Fri, Nov 13, 2009
4 Posts
No Rating |

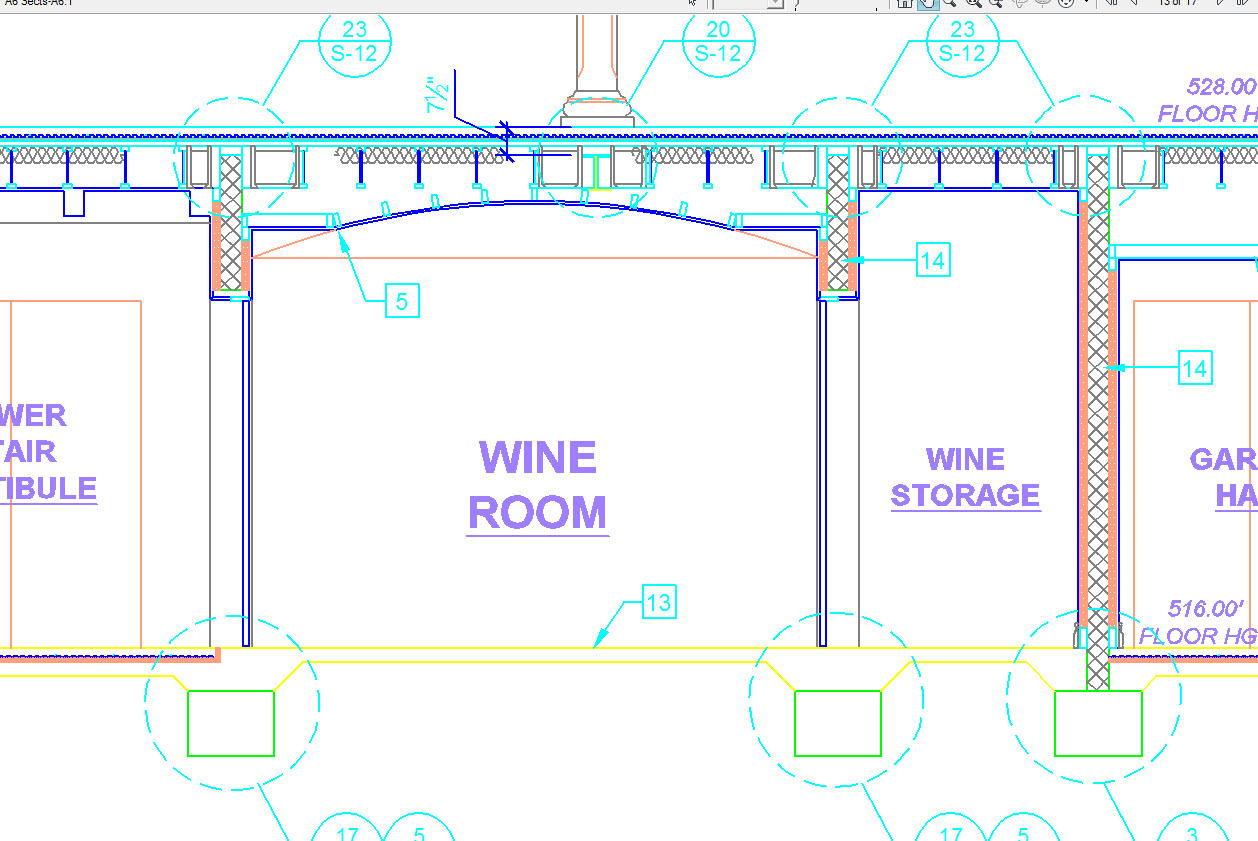

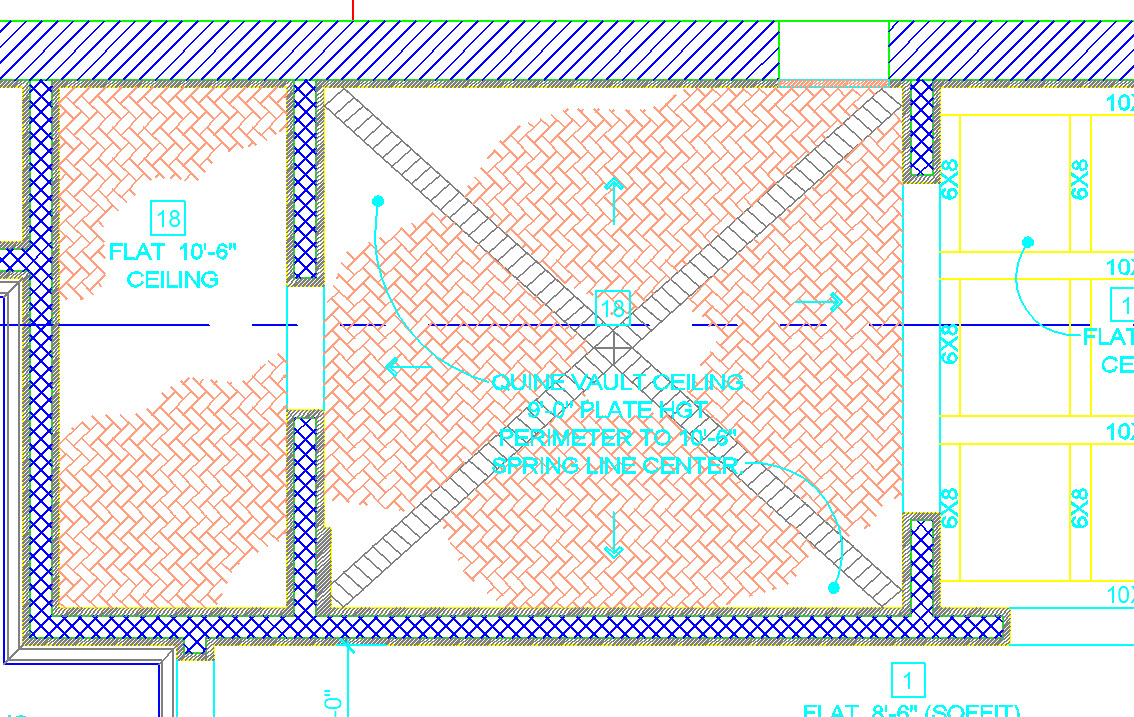

Here are the images that I have to go by to model this vault. I'm mostly interested in what Revit tool I should use to make a vaulted ceiling. Thanks.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|

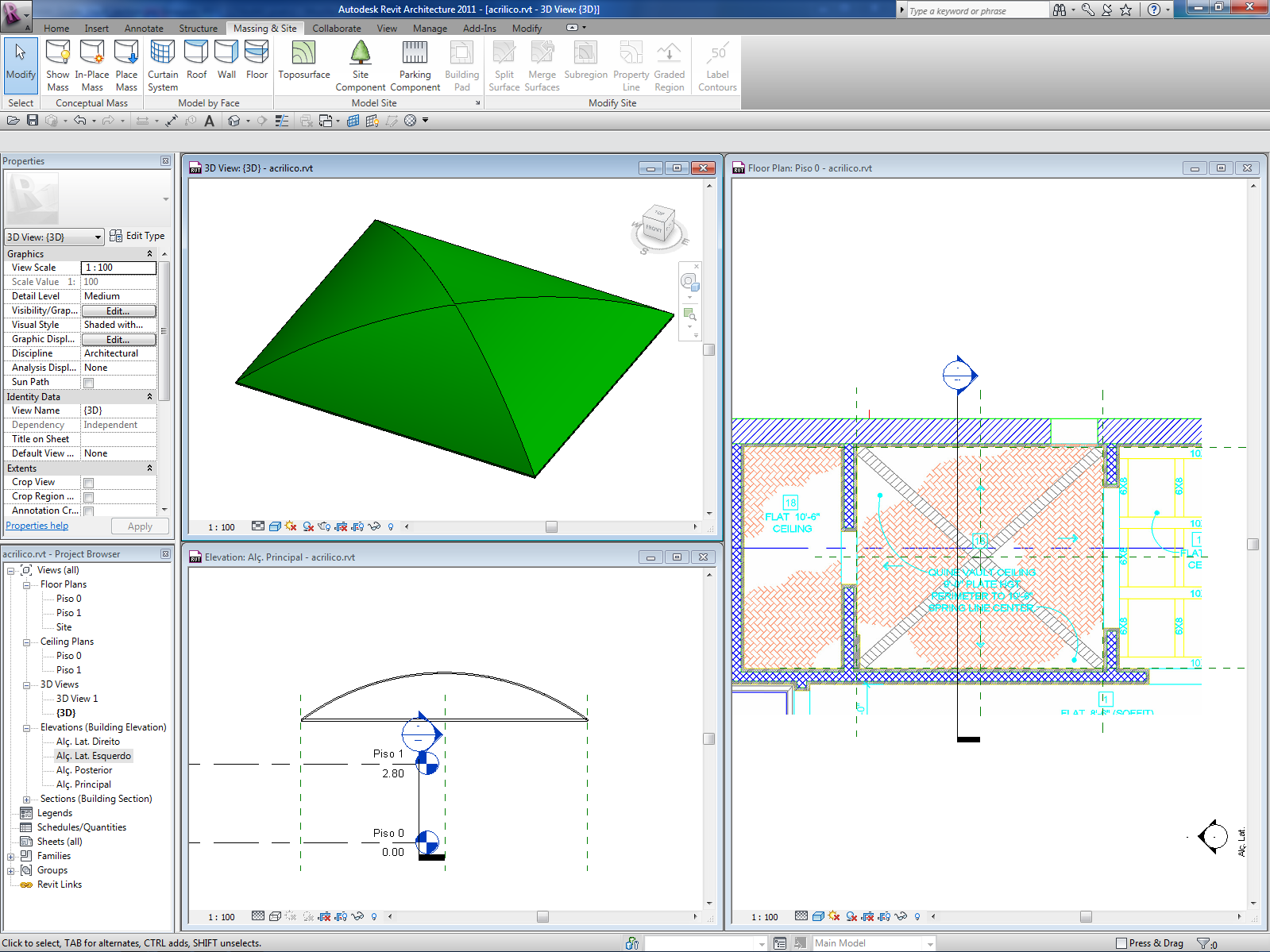

Something like this? Simple, create a "Mass" and use two voids to cut that mass then apply roof by face, it's not in "Ceiling" category but solve your problem.
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Fri, Nov 13, 2009
4 Posts
No Rating |
Thanks a lot, I got it to work that way. My only problem now is that my roof only appears in 3D, not in 2D section, or plan - even though "roof" is checked on in my View Properties, so I can't figure it out.
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 22, 2006
759 Posts
|
if you modeled as mass object you must turn on mass in the VG
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
I said: "Simple, create a "Mass" and use two voids to cut that mass then apply roof by face,..."
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
