Forums >> Revit Building >> Technical Support >> Revit 2011 Curtain Wall Door Template Error

Search this ThreadSearch this Thread | Page 1 of 2 | 1 | 2 Next >>

Fri, Dec 3, 2010 at 11:11:05 PM | Revit 2011 Curtain Wall Door Template Error

#1

ktam


active

Joined: Wed, Mar 8, 2006
15 Posts
No Rating


Anybody noticed that there is a serious error in Revit 2011 Curtain Wall Door Template.  The Center (Left/Right) reference plane is not truly representing the center.  When you create a door family, it looks right in the family environment when you flex it but when you load into the project, you will see it is off center.  Please see attached pdf.  The way I fixed this is starting creating a family in 2011 with the 2010 template, it will upgrade the 2010 version, do nothing and save it as Door – Curtain Wall.rfa.  Then rename the file as rft, now you have a new template upgraded from 2010.

This user is offline



Sat, Dec 4, 2010 at 11:23:28 AM | Revit 2011 Curtain Wall Door Template Error

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


What PDF?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Dec 5, 2010 at 6:13:52 AM | Revit 2011 Curtain Wall Door Template Error

#3

ktam


active

Joined: Wed, Mar 8, 2006
15 Posts
No Rating


Sorry I forgot the attachment.  Here is the pdf file.



This user is offline



Sun, Dec 5, 2010 at 12:36:41 PM | Revit 2011 Curtain Wall Door Template Error

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

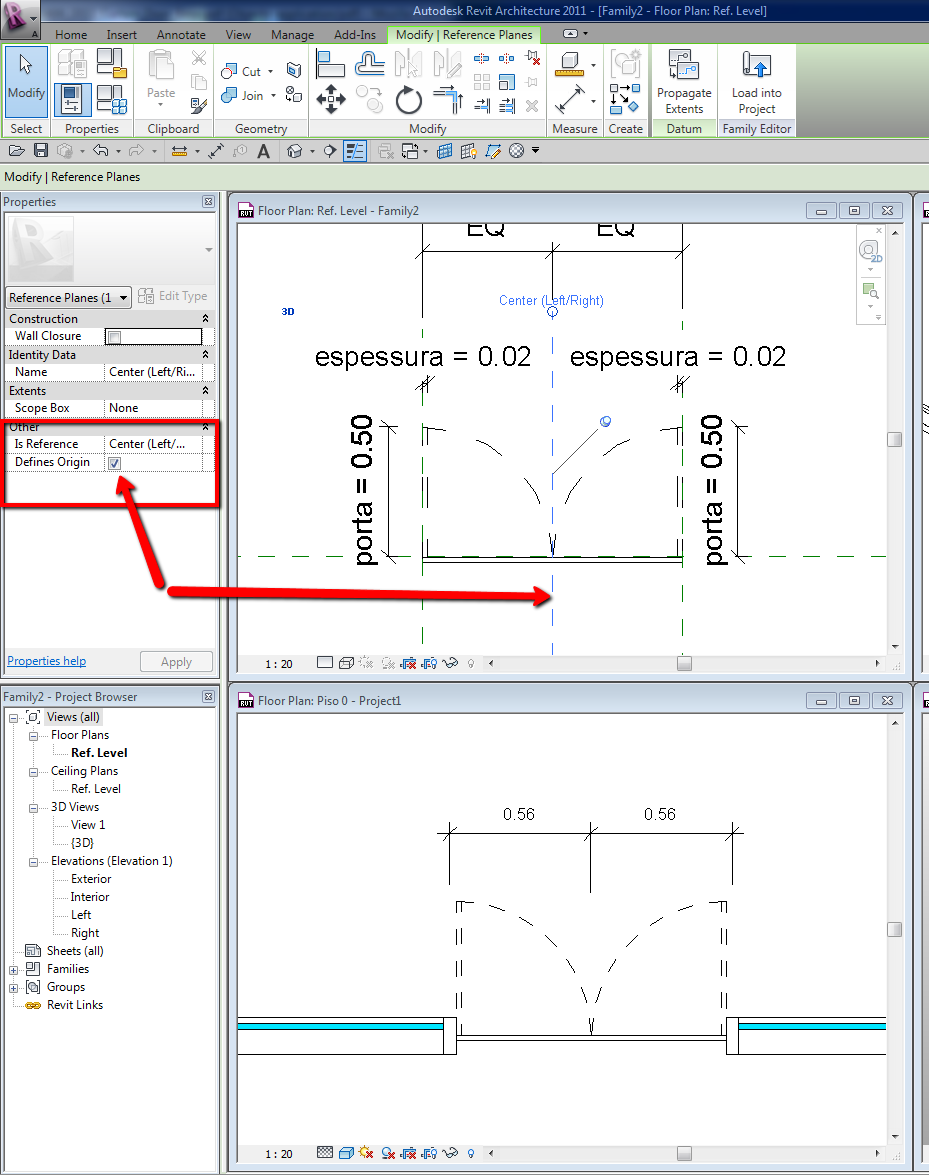

Turn the Ref. plane Center (left/right) the "Origin"

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Dec 5, 2010 at 8:34:02 PM | Revit 2011 Curtain Wall Door Template Error

#5

ktam


active

Joined: Wed, Mar 8, 2006
15 Posts
No Rating


you can try it.  it won't work.

This user is offline



Mon, Dec 6, 2010 at 9:59:46 AM | Revit 2011 Curtain Wall Door Template Error

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


I did, that's why I answered.




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Dec 6, 2010 at 2:43:57 PM | Revit 2011 Curtain Wall Door Template Error

#7

ktam


active

Joined: Wed, Mar 8, 2006
15 Posts
No Rating


Typhoon,

What version of Revit you are using?  I know you may be using European version.  Mine is 2011 US.  May be there is nothing wrong with European version but I am sure it is not right in the US version.


This user is offline



Mon, Dec 6, 2010 at 2:50:34 PM | Revit 2011 Curtain Wall Door Template Error

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


I just opened the 2011 template and it is correct.  The opening is centered and the ref plane defines the origin.  Someone may have changed your template so change it back.

This user is offline



Mon, Dec 6, 2010 at 2:54:43 PM | Revit 2011 Curtain Wall Door Template Error

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Ktam, i use 2011 US too, like you can see in my image it flex well in family and in PROJECT, can you put your family here so we can take a look when we can?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Dec 7, 2010 at 4:31:39 AM | Revit 2011 Curtain Wall Door Template Error

#10

ktam


active

Joined: Wed, Mar 8, 2006
15 Posts
No Rating


The problem is when you flex in the family, it looks right but when the door is loaded into the project the center is off. I did a family with just symbolic lines representing the door swings, it is not working.  See attached rvt file.

This user is offline



Tue, Dec 7, 2010 at 4:09:53 PM | Revit 2011 Curtain Wall Door Template Error

#11

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Your problem is not the template - it is your family.  Door swings are not easy to do.

This user is offline



Tue, Dec 7, 2010 at 6:09:09 PM | Revit 2011 Curtain Wall Door Template Error

#12

pchan


active
pchan Avatar

Joined: Wed, Mar 5, 2008
208 Posts
5 Stars: 5 Votes


I tried it with a new template in 2011 Revit Arch and got the same result with in project environment that the swing is off center.

This user is offline



Tue, Dec 7, 2010 at 7:05:52 PM | Revit 2011 Curtain Wall Door Template Error

#13

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

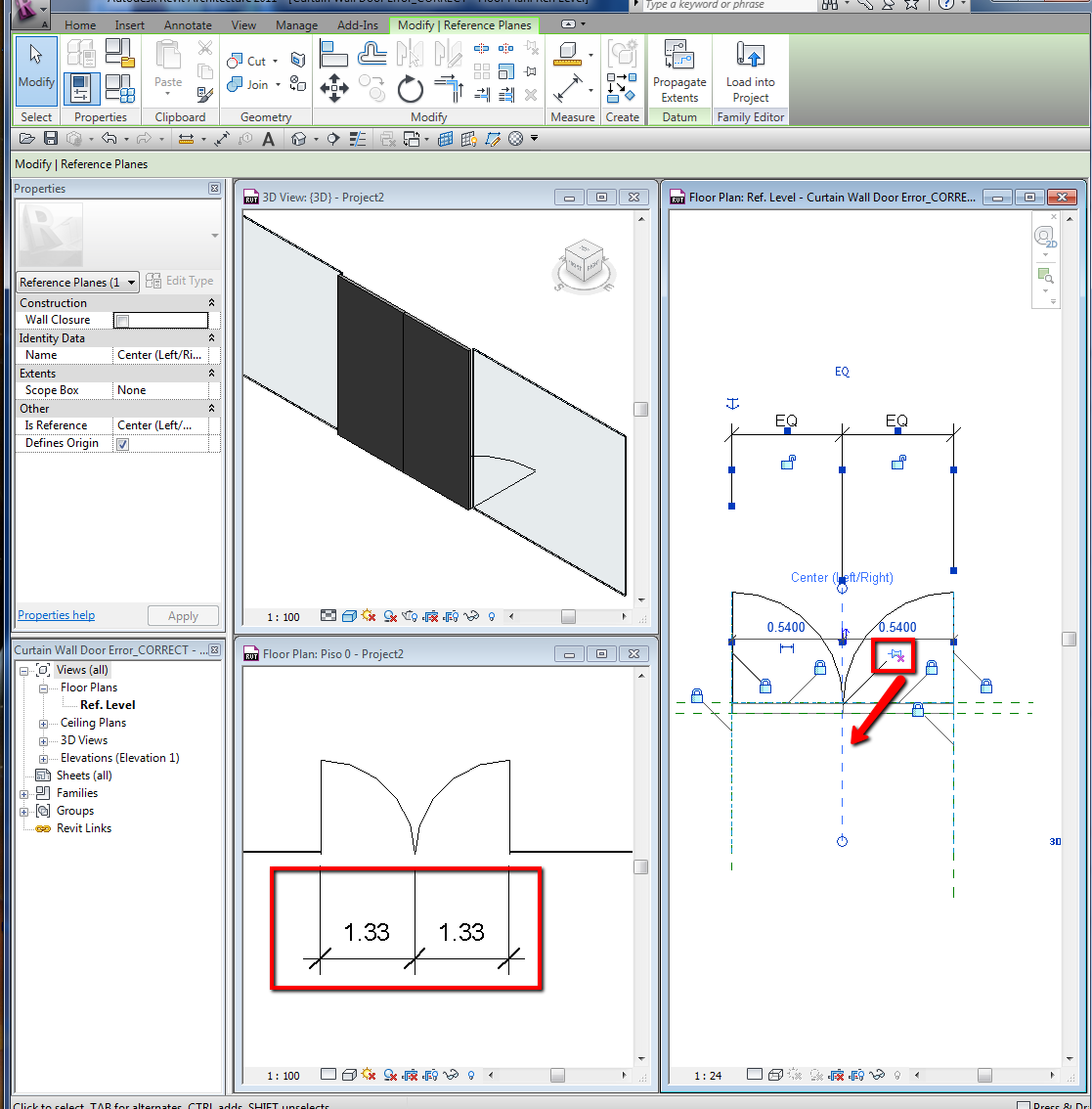

Here you have, i just deleted your model lines, create new ones and locked, and i change too the "Center (front/back)" ref. plane to "defines origin".

HTH





-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Dec 8, 2010 at 2:44:08 AM | Revit 2011 Curtain Wall Door Template Error

#14

ktam


active

Joined: Wed, Mar 8, 2006
15 Posts
No Rating


Typhoon,

This is what I got by using you "CORRECT" family file.  See how the door is offset in the MODEL RVT file.  Do you believe now?



This user is offline



Wed, Dec 8, 2010 at 11:55:30 AM | Revit 2011 Curtain Wall Door Template Error

#15

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

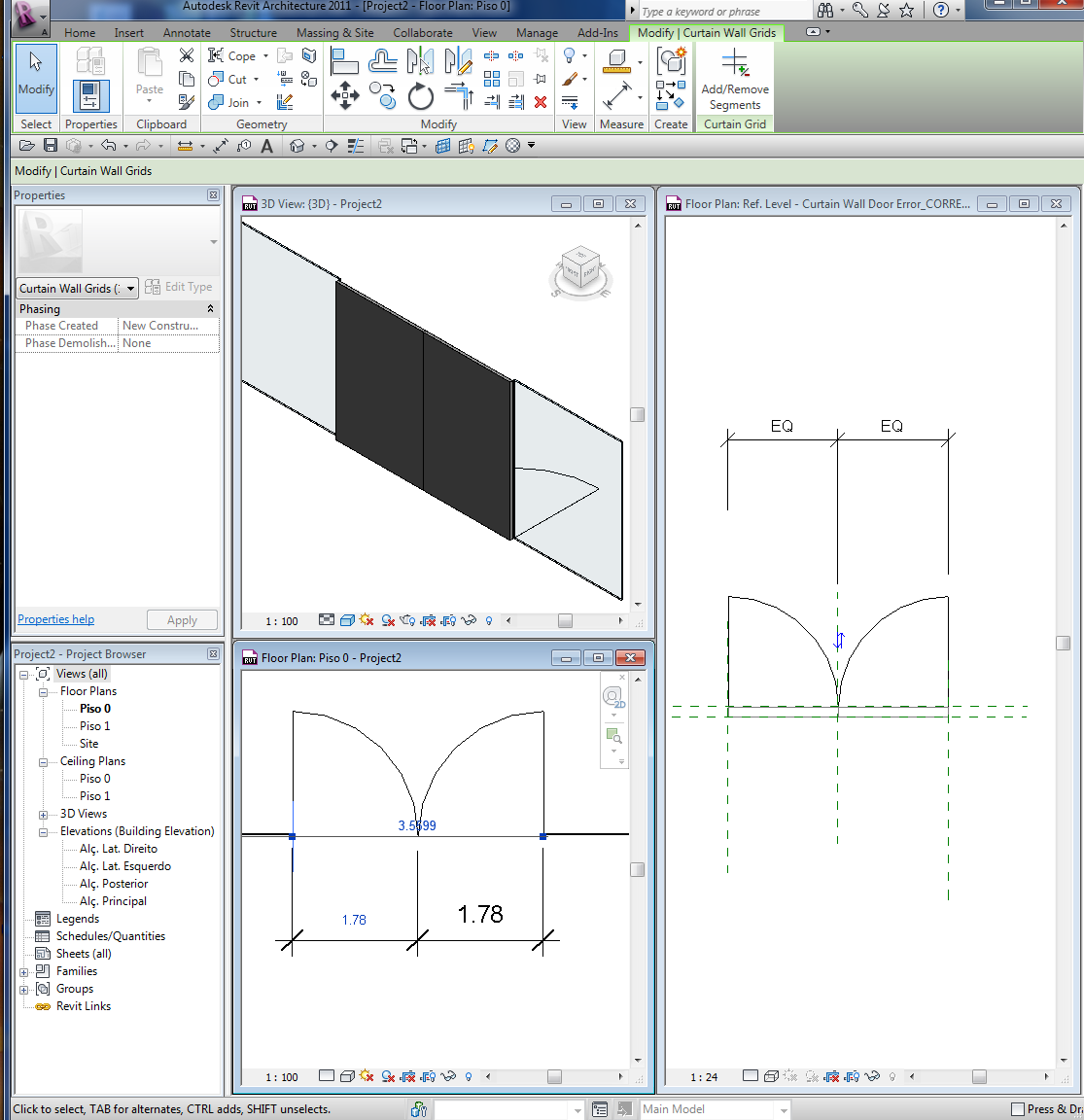

Just "Un-Pin" center (left/right) ref. plane, watch the video: http://screencast.com/t/2YfAKaXea5ga





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
