Forums >> Revit Building >> Technical Support >> Roof by face, how-to

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Nov 27, 2010 at 6:23:31 AM | Roof by face, how-to

#1

proooo


active

Joined: Sat, Nov 27, 2010
7 Posts
No Rating


hello, hello



this is a post how-to construct in revit, a floating roof structure as seen on sanaa project in lausanne and my student project based in palermo.

 as far as i understand, the best command to do this roof is to make a roof by face.

- but how would i do this with this project?

- what i think is to make walls with curvature profile on top base and make them invisible in renderings?

thanks for help! Smile





Attached Images

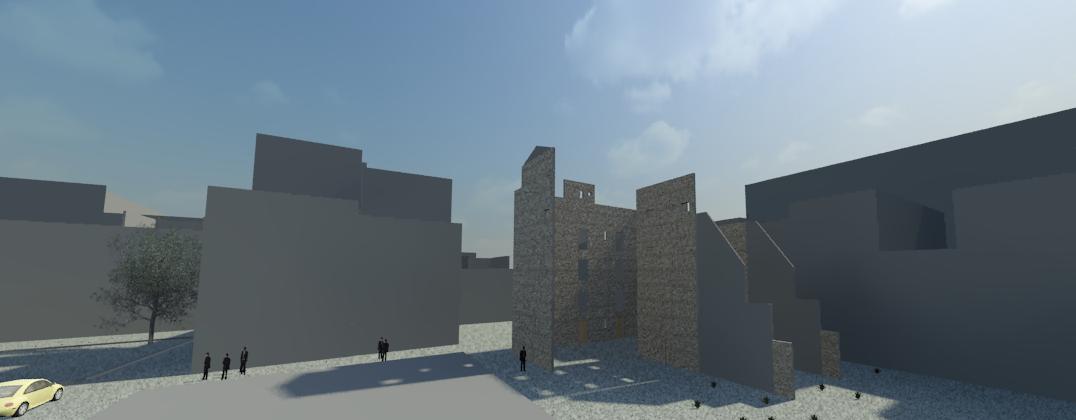

85215_sanaa-3-rolex-learning-center-epfl-sanaa-copy-hisao-suzuki-1-11099.jpg85215_bilde.JPG85215_process2.jpg

-----------------------------------

Architect student - twitter.com/proooo @

The Bergen School of Architecture, Bergen - Norway

www.bergenarkitektskole.no

This user is offline

View Website

Sat, Nov 27, 2010 at 7:53:58 AM | Roof by face, how-to

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


With only those images I can't tell you how to build the roof because i don't know the shape you want to the roof, if you can provide more images with the shape you want I bet we can help you.




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Nov 30, 2010 at 8:09:07 AM | Roof by face, how-to

#3

proooo


active

Joined: Sat, Nov 27, 2010
7 Posts
No Rating


hello again,



thanks for your reply. generally i want to create a wavy surface out of concrete, serving as both a public floor but also a roof structure over rooms underneath it.

i figured that i will create a mass - because the roof or floor commands are structured into standard template roofs.

- so my question is: how to model a wavy surface in general? i know how to do a mass structure, but cannot edit the profile on the z axis, only in work plane constrained by x and y (horizontal).

 hope you understand?




-----------------------------------

Architect student - twitter.com/proooo @

The Bergen School of Architecture, Bergen - Norway

www.bergenarkitektskole.no

This user is offline

View Website

Tue, Nov 30, 2010 at 12:28:41 PM | Roof by face, how-to

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


In Conceptual mass create the profiles like you want (image 1), then select the profiles and click on "Create form" (image 2), after this, you can turn that form in "X-ray" and select any point, edge, or face and manipulate the gizmo (image 3), when you have your form (in this case Roof) like you want click on "Load into project", go to "Roof > Roof by face" and select the face (image 4).

HTH





Edited on: Tue, Nov 30, 2010 at 12:29:12 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Dec 1, 2010 at 6:46:47 AM | Roof by face, how-to

#5

proooo


active

Joined: Sat, Nov 27, 2010
7 Posts
No Rating


thanks alot. this recipe will surely do it.

i will pursue this approach during the afternoon Smile

thanks alot!!




-----------------------------------

Architect student - twitter.com/proooo @

The Bergen School of Architecture, Bergen - Norway

www.bergenarkitektskole.no

This user is offline

View Website
