Forums >> Revit Building >> Technical Support >> Bending Grid lines
|
|
|
active
Joined: Tue, Dec 11, 2007
1 Posts
No Rating |

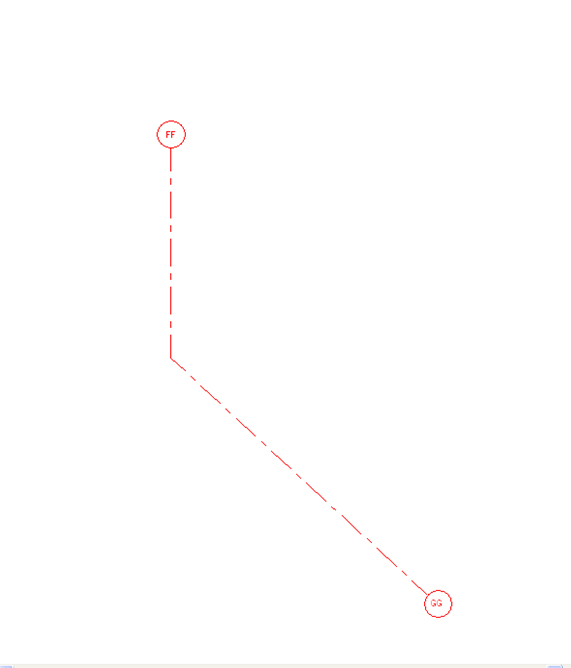

Can you draw a grid line straight down and then bend it 45 degrees and keep the same # / letter?
|
This user is offline |
|
 | |
|
|
active
Joined: Mon, Jul 13, 2009
273 Posts
 |
no, you cant. But you can fake it with a little dot in a side of it. Anyways, you shouldnt do that, unless is a curved-single wall like this here
|
This user is offline |
|
|
|
active
Joined: Sat, Sep 4, 2010
173 Posts
 |

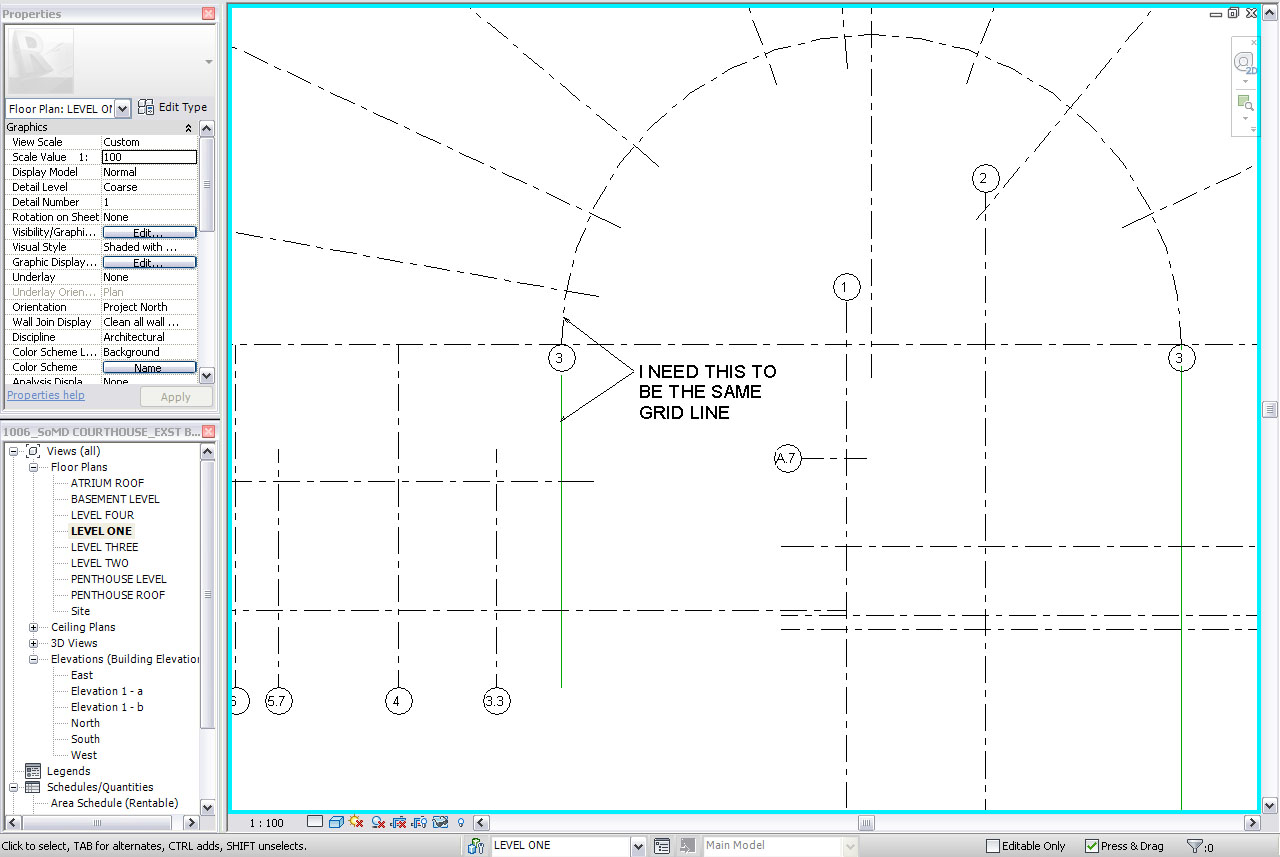

I have a similar issue: I need to create a grid-line that is a half circle with tangents that extend. Revit lets me create the half circle but I'm not sure how I can create what I need to do without faking something. Any suggestions?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Think about this! A grid line has a fixed location and objects are referenced off it. How can a grid line do that if it is a combination of geometry? It is a poor process! Use a grid line for the defined arc and seperate grid lines for the straight line segments. They could be identified as a progression or subset.
|
This user is offline |
|
|
|
active
Joined: Sat, Sep 4, 2010
173 Posts
|
That's what I ended up doing. Just so you know, this is an as-built drawing for a project completed pre-revit and pre-cad for that matter. Thanks for your input anyway, and I'm sorry that you think that it is a poor process. Cheers.
|
