Forums >> Revit Building >> Technical Support >> cut plane for levels vs. furniture

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Oct 19, 2010 at 6:09:47 AM | cut plane for levels vs. furniture

#1

designc


active

Joined: Tue, Aug 10, 2010
13 Posts
No Rating


Hello

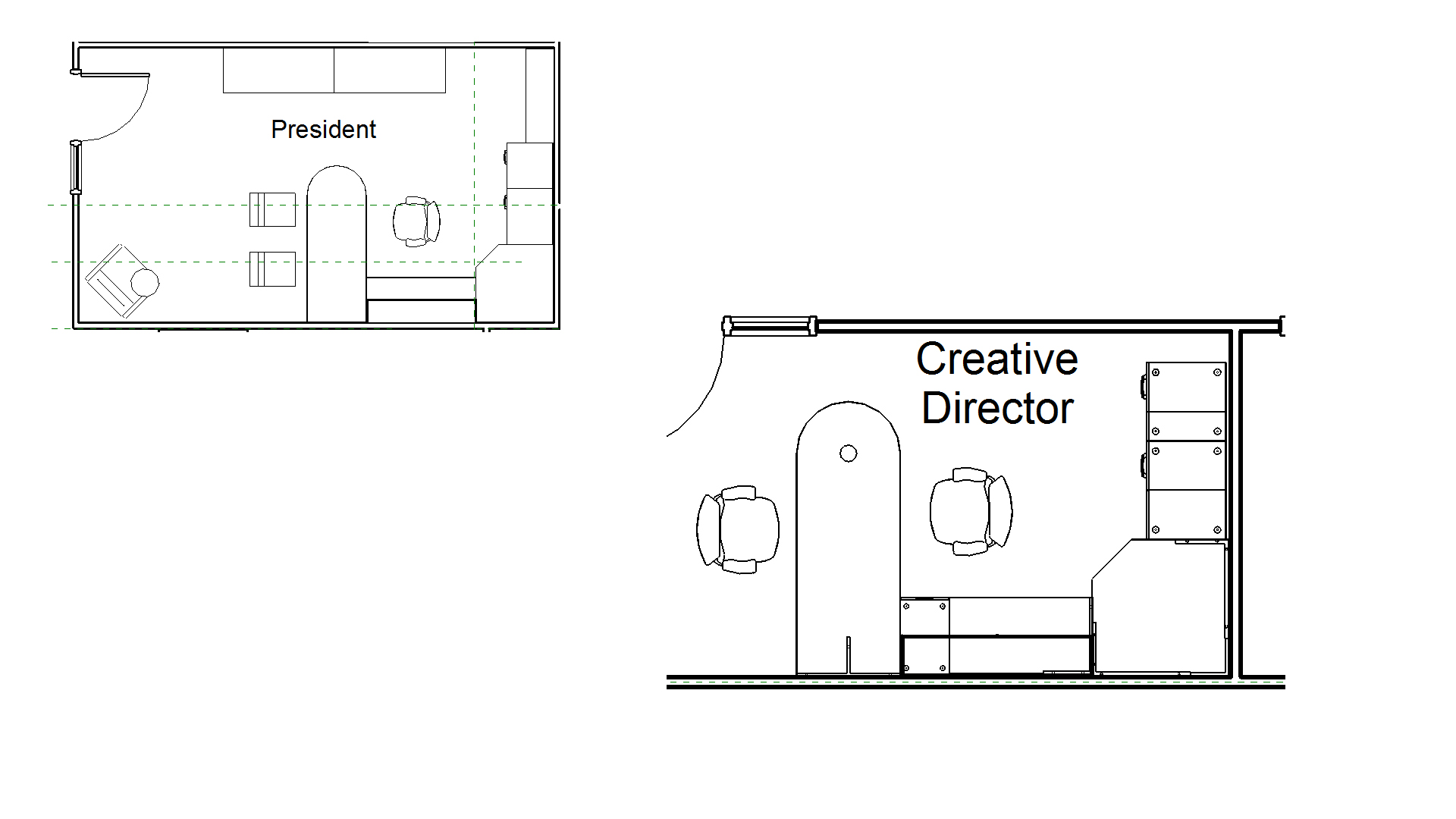

I have two levels in this project I am working on and it seems like on the second level it decides to show the underside parts of the furniture. However, on the 1st floor it just shows top of the furniture..like how it would acutally look.

 I have no clue how to fix this. I tried to edit the family and change cut planes, but that didn't do anything.

What can I do to fix it...is there something I can change in my visibility settings or something?



thanks!



Attached Images


This user is offline



Tue, Oct 19, 2010 at 6:11:43 AM | cut plane for levels vs. furniture

#2

designc


active

Joined: Tue, Aug 10, 2010
13 Posts
No Rating


Im using Revit Arch 2010.....the presdient office is 1st floor..the creative directors..2nd floor

This user is offline



Tue, Oct 19, 2010 at 1:47:44 PM | cut plane for levels vs. furniture

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


  1. Is one of your views set to wireframe?
  2. Is your work surface seperate and set at the wrong elevation?
  3. Is the work surface set to be transparent?
  4. You can't change the cut plane in the family - that is set in your plane view.  Is that set high enough?
  5. Is your furniture category set to transparent in VG of the offending view?

This user is offline



Tue, Oct 19, 2010 at 4:09:49 PM | cut plane for levels vs. furniture

#4

designc


active

Joined: Tue, Aug 10, 2010
13 Posts
No Rating


My plan was at wireframe. So  I chaged it back to shading.



Thanks so much! The simple things are always the fix Puh
