Forums >> Revit Systems >> Technical Support >> Rotating Families Vertically
|
|
|
active
Joined: Tue, Sep 1, 2009
11 Posts
No Rating |

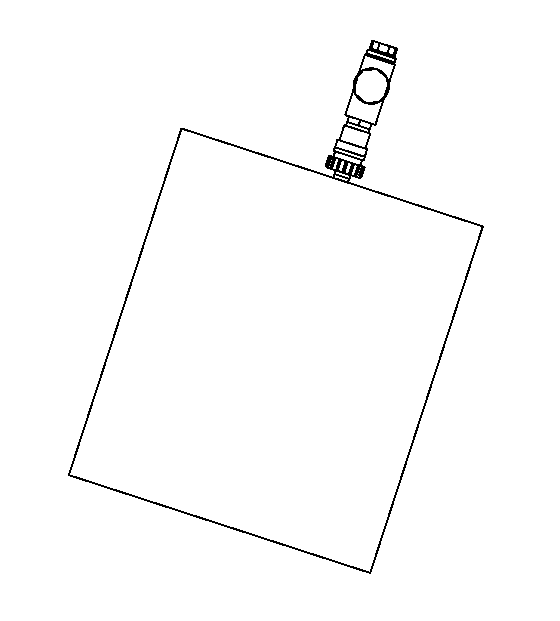

I have been festering with this for a few hours now, looking at a dozen threads and I can't get anything to work. I'd like to rotate a family in a left or right view when I nest it into another family I'm creating to build a radiant heat manifold. I've use the Generic Model.rft template for all my manifold accessories. CAN ANYONE PLEASE HELP!! I've attached one of the files...
|
This user is offline |
|
 | |
|
|
active
Joined: Wed, Oct 7, 2009
654 Posts
 |
In Family Categories try turning off Always Vertical and turning on Work Plane Based. Then pick a new plane for it. You can use faces of other geometry as work planes. It seems like it wants a horizontal WP initially (won't let you pick anything else), but once it's on a new WP you can rotate it.
|
This user is offline |
|
|
|
active
Joined: Tue, Sep 1, 2009
11 Posts
No Rating |
That seems to be working! I thank you a thousand time over! Also, anyone know why blends and revolves look like crap when trying to make a circular object? They all end up looking like octagons, even in the rendered model...
|
