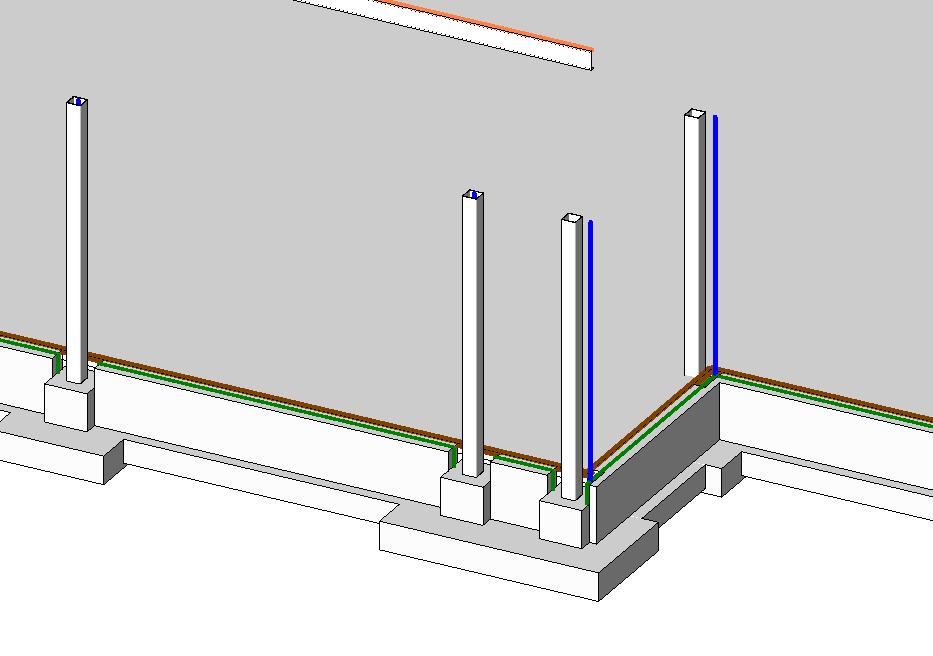

What happened here? The analytical line should be the centre of the column.

I just tried placing a couple more columns "By Grid" and then moved the column off the grid, and the blue line moved with it. So it's not that.

Attached Images
