Forums >> Revit Building >> Technical Support >> Folded surface False ceiling / Issues with Sloped False ceiling

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Sep 18, 2010 at 3:05:46 AM | Folded surface False ceiling / Issues with Sloped False ceiling

#1

Bhavani


active
Bhavani Avatar

Joined: Mon, Jan 18, 2010
21 Posts
No Rating

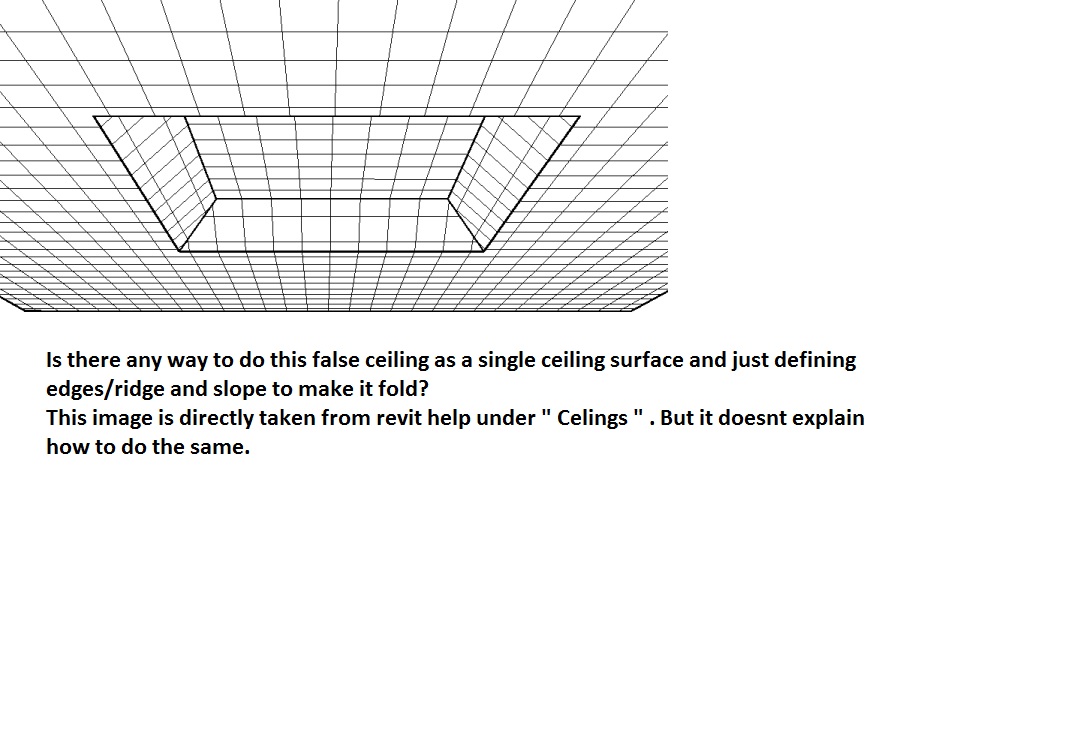

Please see the image attached.  I am not able to create a Ceiling the way it appears using the slope property. the Slope property explantion is very confusing for where it talks about Defining slope at constant heights & slope arrow . I tried to understand what it does by experimenting but i only ended up with an overall slope(applied to the entire surface) it doesnt let me slope specific parts of it.

Attached Images


This user is offline



Sat, Sep 18, 2010 at 4:23:15 AM | Folded surface False ceiling / Issues with Sloped False ceiling

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

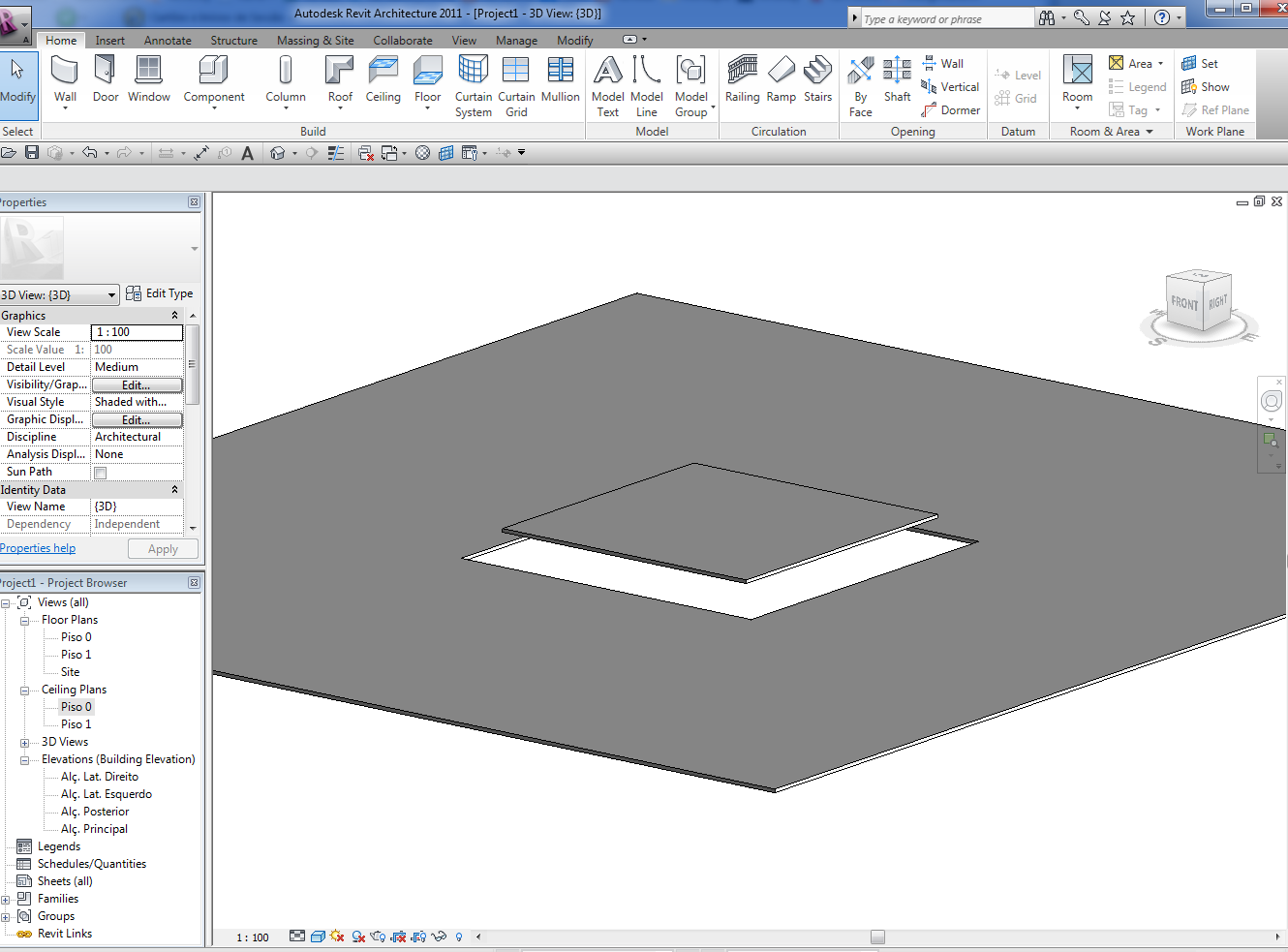

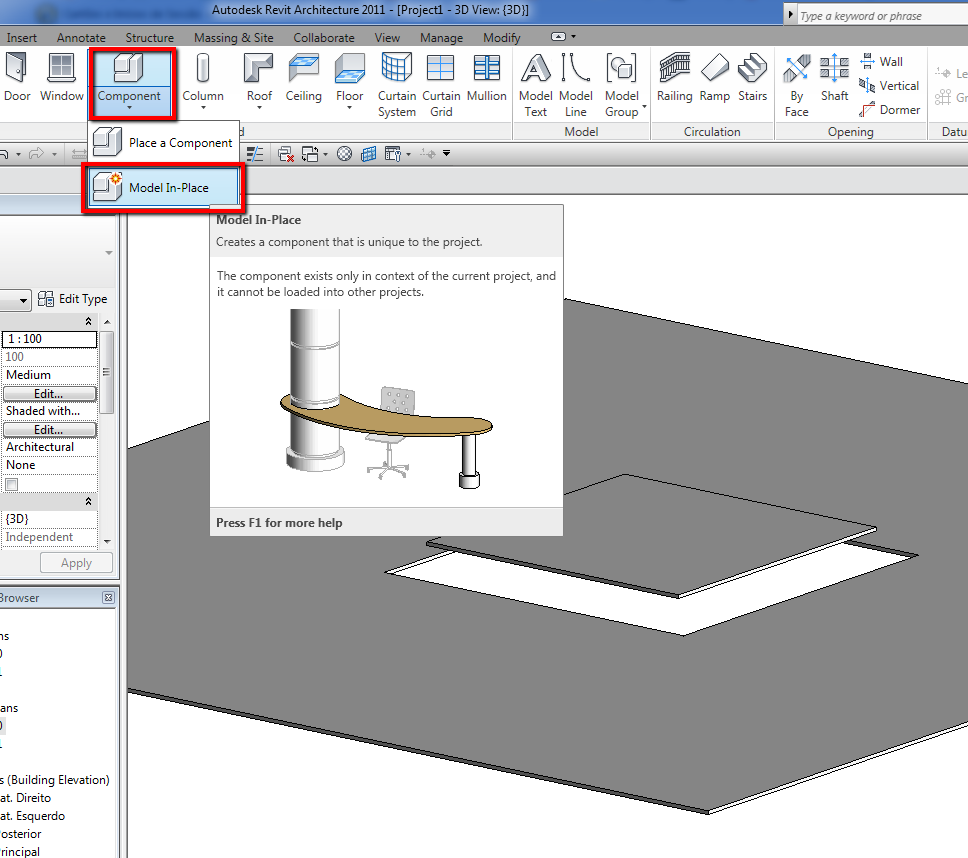

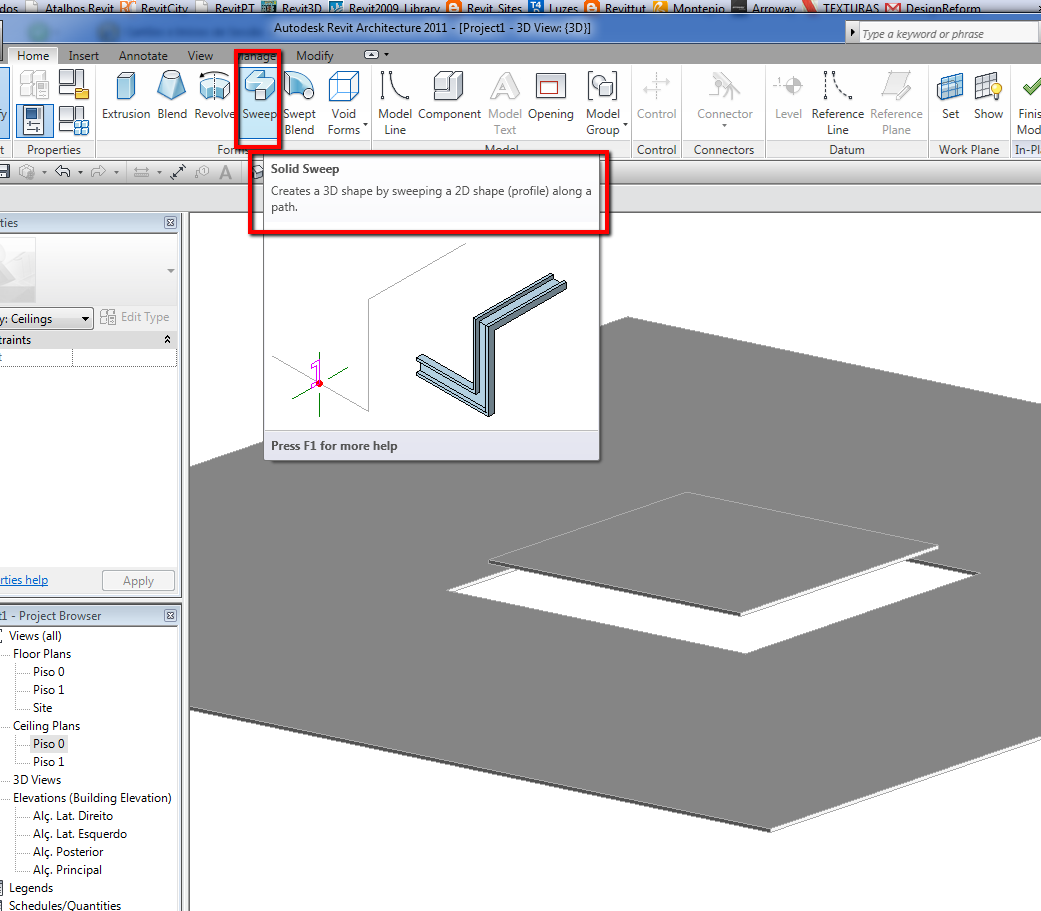

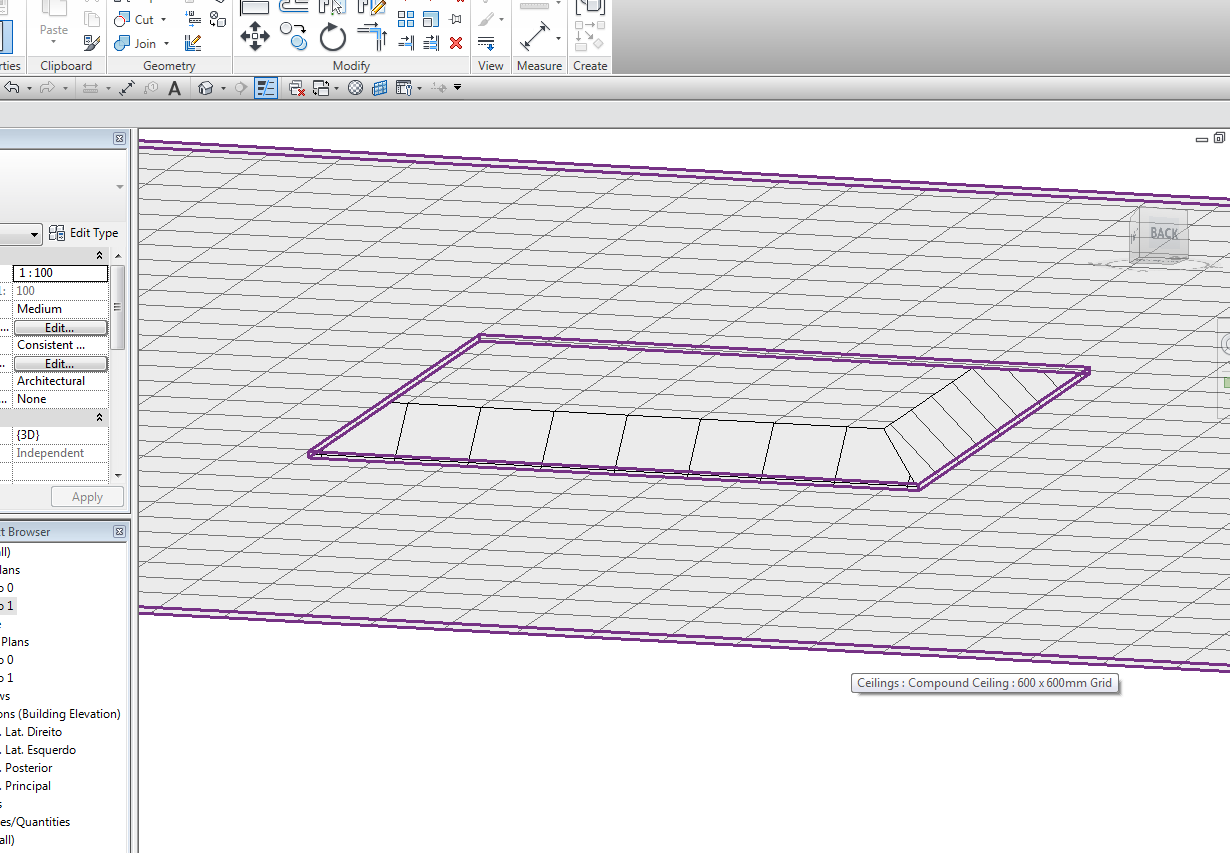

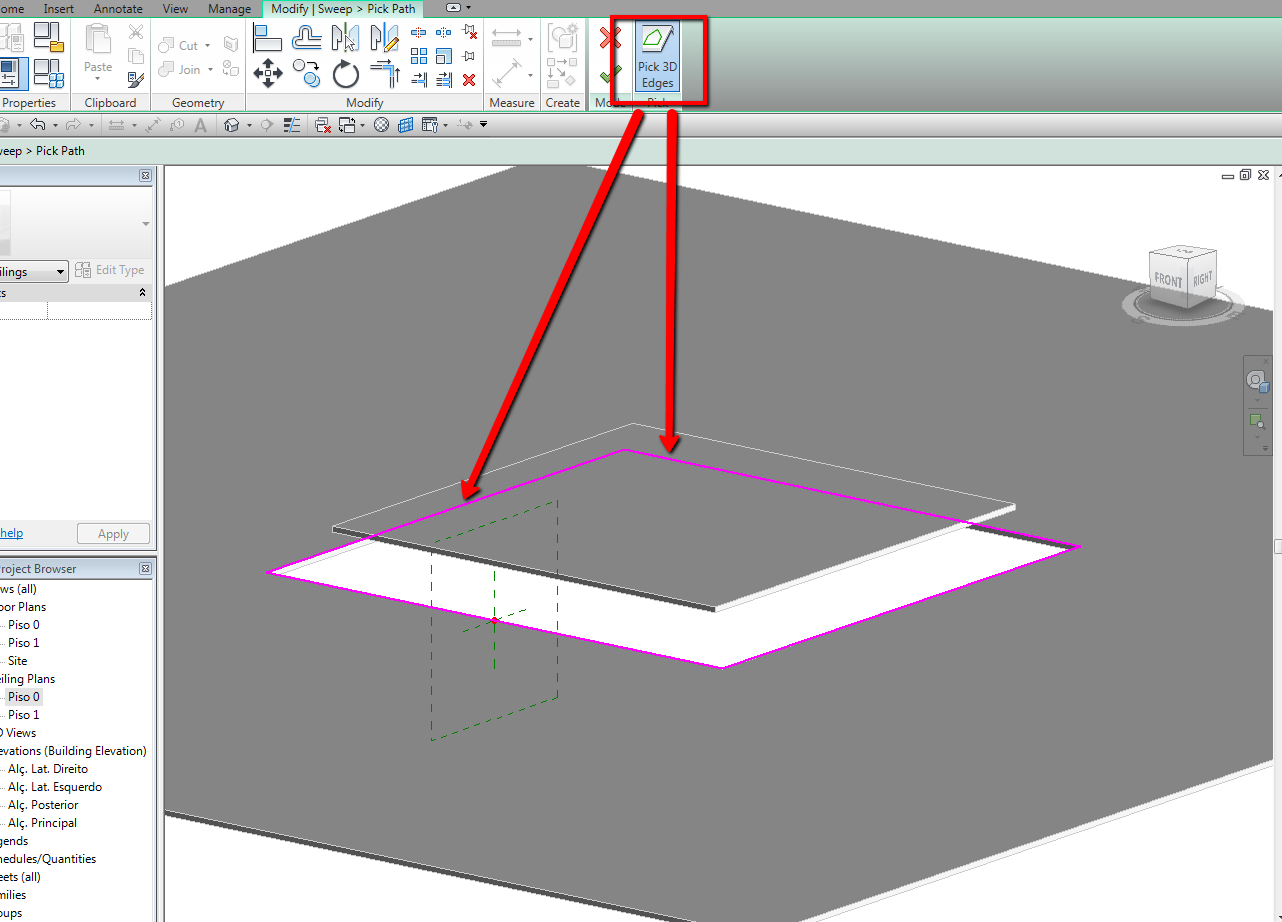

First create the two ceilings (flat ceilings) first image, then to create that slope part just use the "In-Place" - second image and choose the category "Ceilings", select "Solid Sweep" -  thirth image then use the "Pick Path" and click at the edges of the ceiling - fourth image, then create the profile like you want and Done.





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Sep 18, 2010 at 5:00:12 AM | Folded surface False ceiling / Issues with Sloped False ceiling

#3

Bhavani


active
Bhavani Avatar

Joined: Mon, Jan 18, 2010
21 Posts
No Rating


Is there any way to do it using the system family properties and not as in place mass?


This user is offline



Sat, Sep 18, 2010 at 5:12:51 AM | Folded surface False ceiling / Issues with Sloped False ceiling

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


watch the video: http://screencast.com/t/YjMzN2NmYzc




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
