Forums >> Revit Building >> Technical Support >> Help with stair creation

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Sep 17, 2010 at 11:19:15 PM | Help with stair creation

#1

Dynamite


active
Dynamite Avatar

Joined: Tue, Jun 12, 2007
9 Posts
4.5 Stars: 34 Votes


Hello fellow revit users,

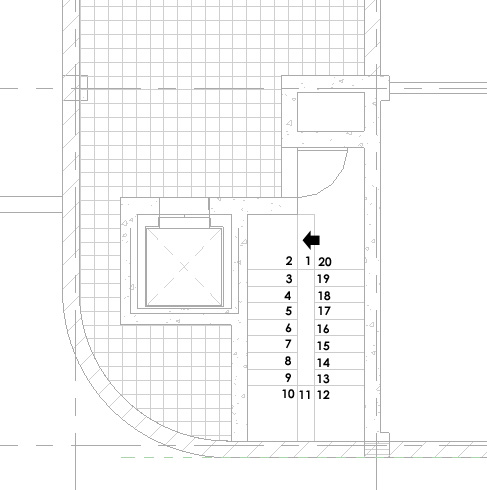

I have ben trying to create this stair design, but cant seem to get it right. Can someone please show me how. A screenshot of the appropriate boundry lines and risers would help. I have attached a picture of the outline. Thanks in advance



Attached Images


This user is offline



Sat, Sep 18, 2010 at 12:56:04 AM | Help with stair creation

#2

itsmyalterego


active
itsmyalterego Avatar

Joined: Fri, May 29, 2009
829 Posts
4 Stars: 16 Votes


Gotta run, can't model it, but:



One problem I see is that your boundry makes a complete 360.  The boundry line for riser #1 can't touch #20.  Fake a little gap in there.  1/16th of an inch will do.   Also, make a break in the broundry line at each landing, or else it will attempt to carry the slope through your landings.  This is a pretty doable stair.


This user is offline



Sat, Sep 18, 2010 at 1:33:24 AM | Help with stair creation

#3

Dynamite


active
Dynamite Avatar

Joined: Tue, Jun 12, 2007
9 Posts
4.5 Stars: 34 Votes


Thanks itsmyalterego, it worked!
