Forums >> Revit Structure >> Technical Support >> path or area reinforcement in raft foundation

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Aug 29, 2010 at 1:16:18 AM | path or area reinforcement in raft foundation

#1

albertiglesia


active
albertiglesia Avatar

Joined: Sat, Aug 29, 2009
45 Posts
No Rating


hi,

please help me to get myself out of this.

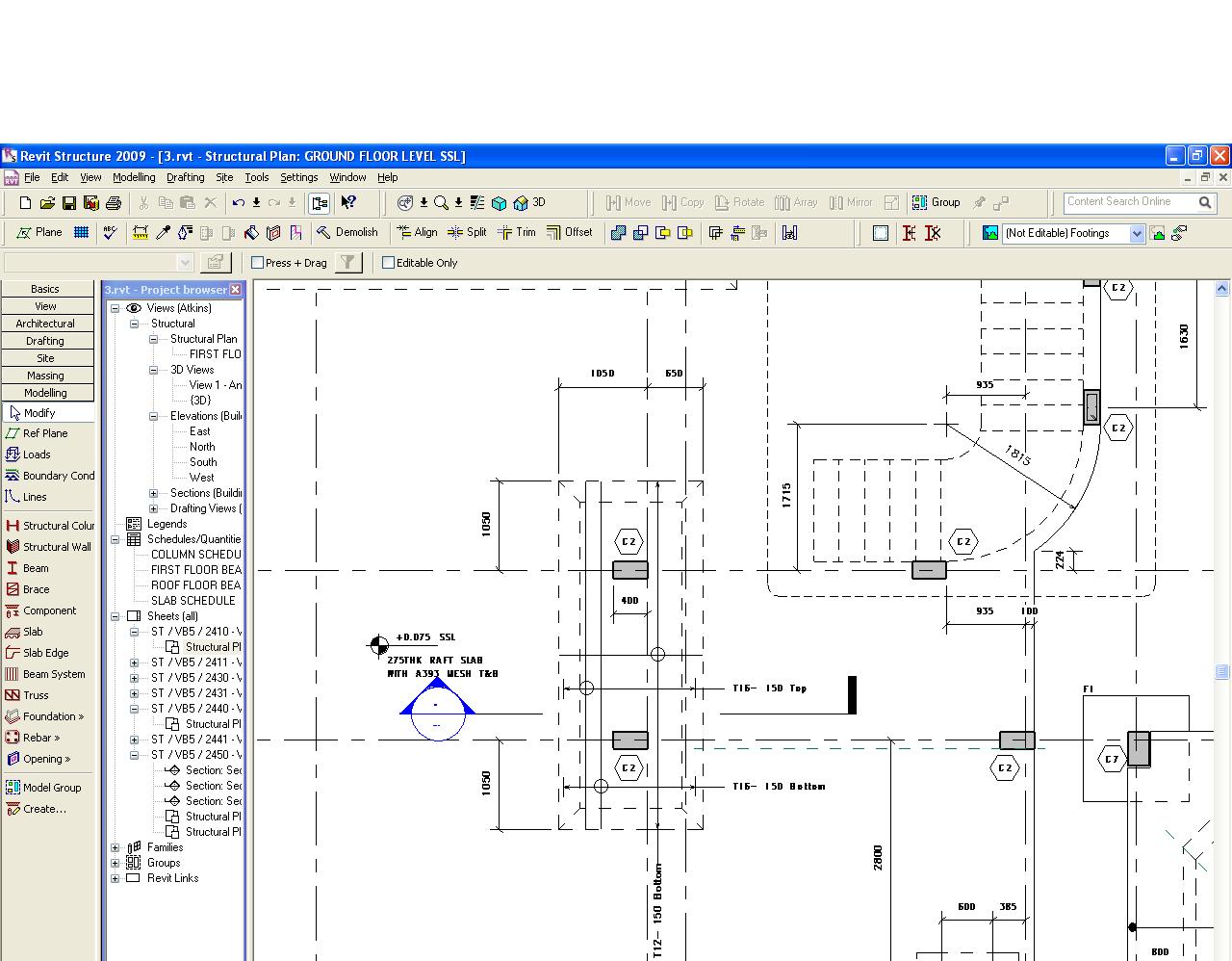

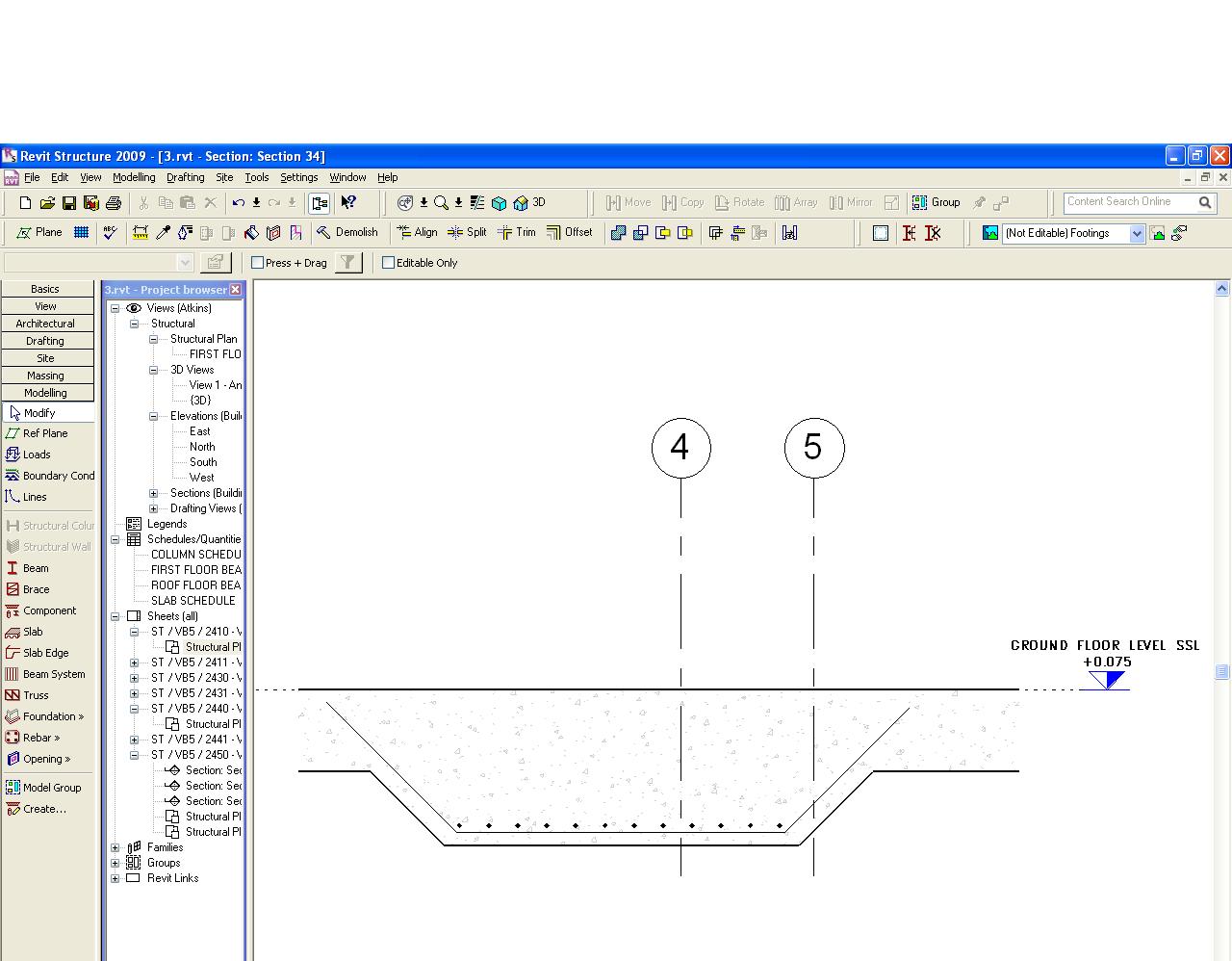

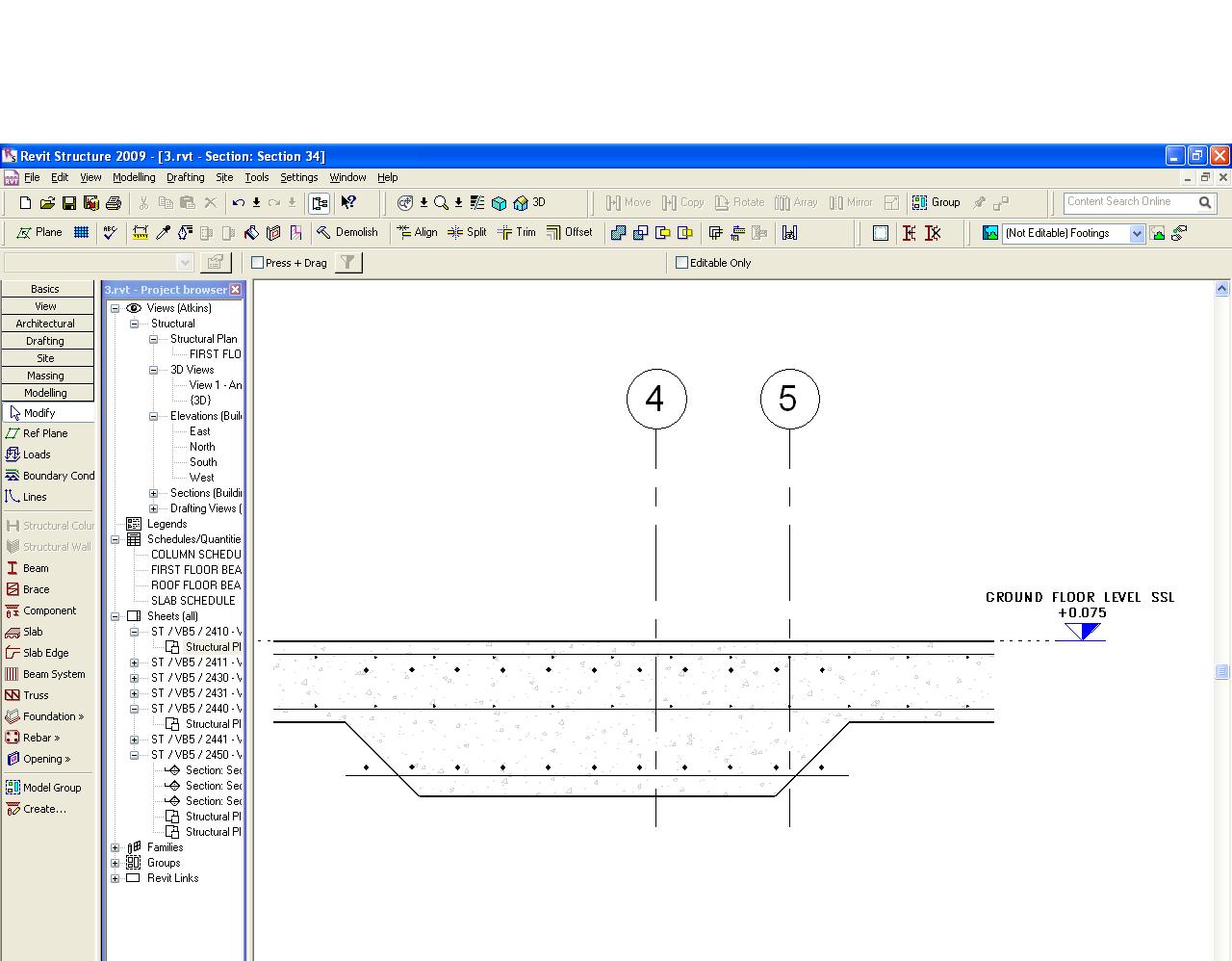

i have raft slab that has general reinfocement of A393 (please see attached "plan"Winking and an occationally additionals slab thickenings that also have additional reinforcements. path and area reinforcement is doing great if the raft slab bottom surface is straight which would give you straight reinforcement (please see attached "section"Winking but on the case of my raft slab, i need a path or area reinforcement that is not straight but rather would follow the shape of the bottom of the raft slab thickening (please see attached "section should be"Winking.

is there someone here know how to make a rebar just like on the image attached "section should be" using area or path reinforcement? or tag that has the same format on the path reinforcement while using simple "place rebar parallel"

please note i am using revit structures 2009



Attached Images


-----------------------------------
