Forums >> Revit Systems >> Technical Support >> Custom Hatch Patterns on Revit

Search this ThreadSearch this Thread | Page 1 of 2 | 1 | 2 Next >>

Thu, Aug 26, 2010 at 9:48:26 PM | Custom Hatch Patterns on Revit

#1

vhugomg


active

Joined: Thu, Nov 26, 2009
65 Posts
No Rating


Hi, I´m trying to make a Custom Hatch Pattern by entering codes on a notepad so revit may be able to read it, but I´m just do not know what am i missing following the procedure of info. I just cannot do it not matter what I do including the years and years of trying, Sad, jajjaja.

 Would you help me resolving this issue?, I already draw my pattern manually on the 4 fachades of my project, but I preffer to erase those detail lines and let a good custom pattern be part of the drawing.

 I know this example will help me and all the revit comunity to solve the custom hatch pattern.

 Thanks a lot and my best wishes...



Attached Images


This user is offline



Fri, Aug 27, 2010 at 3:58:59 AM | Custom Hatch Patterns on Revit

#2

hugh


active

Joined: Tue, Jan 27, 2004
80 Posts
3.5 Stars: 4 Votes


Here's an INCH version

;%VERSION=3.0

;%UNITS=INCH

*VHUGOMG,Revitcity

;%TYPE=MODEL

;-------------------------------------------------------------------------------

;        Pattern written by HatchKit v2.7 Hatch Pattern Editor

;        HatchKit v2.7 Hatch Pattern Editor(c) Cadro Pty Ltd 1990-2008.

;        www.cadro.com.au/hatchkit/

;-------------------------------------------------------------------------------

0,0,0,0,3.5

0,0,2.5,0,3.5

90,0,0,0,2.4



If your measurements were in metres note Revit patterns are in MM:

;%VERSION=3.0

;%UNITS=MM

*VHUGOMG,Revitcity

;%TYPE=MODEL

;----------------------------------------------------------------------

;        Pattern written by HatchKit v2.7 Hatch Pattern Editor

;        HatchKit v2.7 Hatch Pattern Editor(c) Cadro Pty Ltd 1990-2008.

;        www..hatchkit.com.au

;----------------------------------------------------------------------

0,0,0,0,3500

0,0,2500,0,3500

90,0,0,0,2400






-----------------------------------

Hugh Adamson

www.hatchkit.com.au

This user is offline

View Website

Sat, Aug 28, 2010 at 5:28:36 PM | Custom Hatch Patterns on Revit

#3

vhugomg


active

Joined: Thu, Nov 26, 2009
65 Posts
No Rating


Wooow, it worked. You´re a genius, thank you very much!

This user is offline



Sat, Aug 28, 2010 at 6:14:45 PM | Custom Hatch Patterns on Revit

#4

vhugomg


active

Joined: Thu, Nov 26, 2009
65 Posts
No Rating


Here's an image of the pattern applied to the building. Thanks!

Attached Images


This user is offline



Fri, Oct 15, 2010 at 5:43:24 PM | Custom Hatch Patterns on Revit

#5

vhugomg


active

Joined: Thu, Nov 26, 2009
65 Posts
No Rating


Sorry for asking again, but although I'm having progress on making hatch patterns on revit, I cannot make circles on patterns like this one I am uploading. It´s a concrete panels hatch with little circle marks . Would you mind telling me the parameters or coordinates for this pattern, I appreciate your help!.


Attached Images


Attached Files

This user is offline



Fri, Oct 15, 2010 at 5:50:21 PM | Custom Hatch Patterns on Revit

#6

vhugomg


active

Joined: Thu, Nov 26, 2009
65 Posts
No Rating


I forgot, the parameters of the lines in the pattern are:

90,0,0,0,1220

0,0,0,0,2440

I just dont know how to insert the coordinates for the circles...


This user is offline



Fri, Oct 15, 2010 at 9:10:10 PM | Custom Hatch Patterns on Revit

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 358 Votes


You can't make circles in hatch patterns.  You could approximate with small lines but...I would not even try.

This user is offline



Fri, Oct 15, 2010 at 10:03:13 PM | Custom Hatch Patterns on Revit

#8

vhugomg


active

Joined: Thu, Nov 26, 2009
65 Posts
No Rating


It is possible, have you ever seen the pattern of stones or roof tiles with half circle arc? It really is possible...




This user is offline



Sat, Oct 16, 2010 at 5:30:18 AM | Custom Hatch Patterns on Revit

#9

hugh


active

Joined: Tue, Jan 27, 2004
80 Posts
3.5 Stars: 4 Votes


Hatch pattern definitions are made up entirely from straight lines, curves are always approximated by short segments.

For example the attached HatchKit pattern approximates a 10mm circular hole with 5 lines (a pentagon).  Using a small square would simplify calculations if you wanted to create the hatch pattern with a test editor as their short side segments would then line up in this pattern.





-----------------------------------

Hugh Adamson

www.hatchkit.com.au

This user is offline

View Website

Thu, Oct 21, 2010 at 3:17:08 AM | Custom Hatch Patterns on Revit

#10

vhugomg


active

Joined: Thu, Nov 26, 2009
65 Posts
No Rating


Thanks man, for attending my second question on this subject. I will really consider to buy a hatchkit tool asap ...and you are a genius!

Best Regards...




This user is offline



Thu, Nov 11, 2010 at 5:48:43 AM | Custom Hatch Patterns on Revit

#11

JohnHans


active

Joined: Thu, Nov 11, 2010
2 Posts
No Rating


You should try myHatch, its free and it work so well.

 You need to add some parameter later on, but it is an easy task.


-----------------------------------
Revit Architecture 2011

This user is offline



Wed, Nov 24, 2010 at 7:13:34 PM | Custom Hatch Patterns on Revit

#12

vhugomg


active

Joined: Thu, Nov 26, 2009
65 Posts
No Rating


Thank you, I appreciate your advise. I am downloading it right now.



Have a nice day!


This user is offline



Sat, Jun 27, 2020 at 6:19:53 AM | Custom Hatch Patterns on Revit

#13

dingohot


active
dingohot Avatar

Joined: Mon, Mar 15, 2010
199 Posts
3.5 Stars: 5 Votes


Here is DynaPAT which can create any pattern you want in Revit directily.

https://plevit1.blogspot.com/2020/06/dynapat-pattern-maker-for-revit-by.html



A sample pat file which is created by DynaPAT is attached.



EnjoyRevit is back. Smile



-----------------------------------

want more?

You can get more tips at Enjoy Revit

This user is offline

View Website

Sat, Jun 27, 2020 at 11:34:35 AM | Custom Hatch Patterns on Revit

#14

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 358 Votes


That is a large file!  What does the pattern look like?


This user is offline



Sat, Jun 27, 2020 at 11:41:16 AM | WWHub

#15

dingohot


active
dingohot Avatar

Joined: Mon, Mar 15, 2010
199 Posts
3.5 Stars: 5 Votes


Quoting WWHub from 2020-06-27 06:34:35

"

That is a large file!  What does the pattern look like?

"

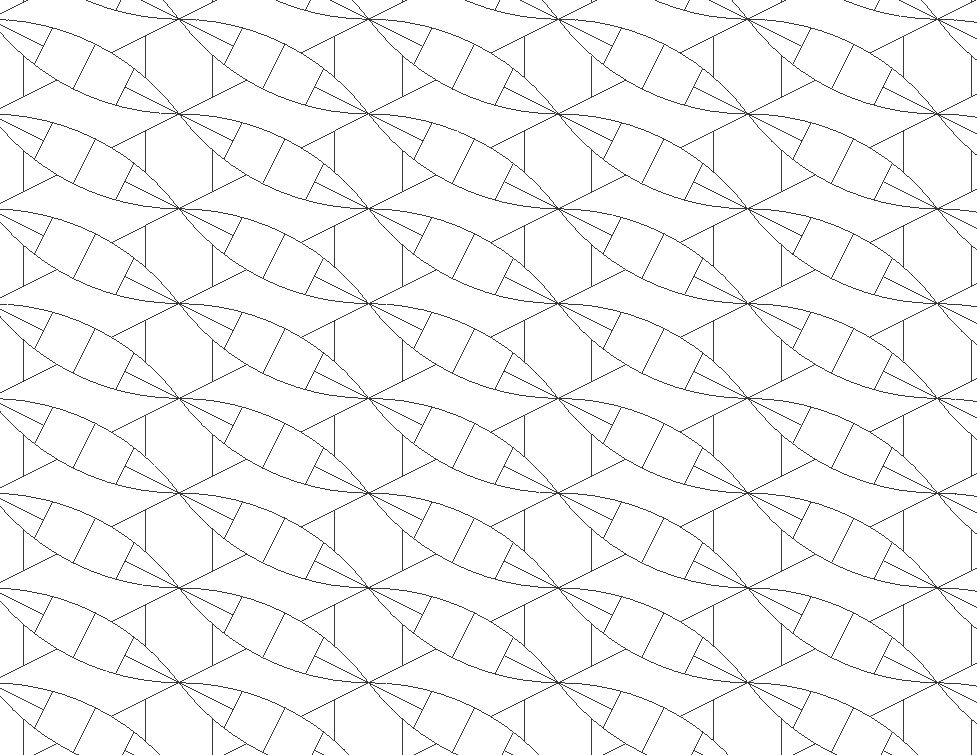

This is it.



Attached Images


-----------------------------------

want more?

You can get more tips at Enjoy Revit

This user is offline

View Website
