Forums >> Revit Building >> Technical Support >> How to trim a small part from a wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Aug 3, 2010 at 1:36:58 AM | How to trim a small part from a wall

#1

ichlove


active

Joined: Wed, Mar 10, 2010
32 Posts
No Rating


Hi,

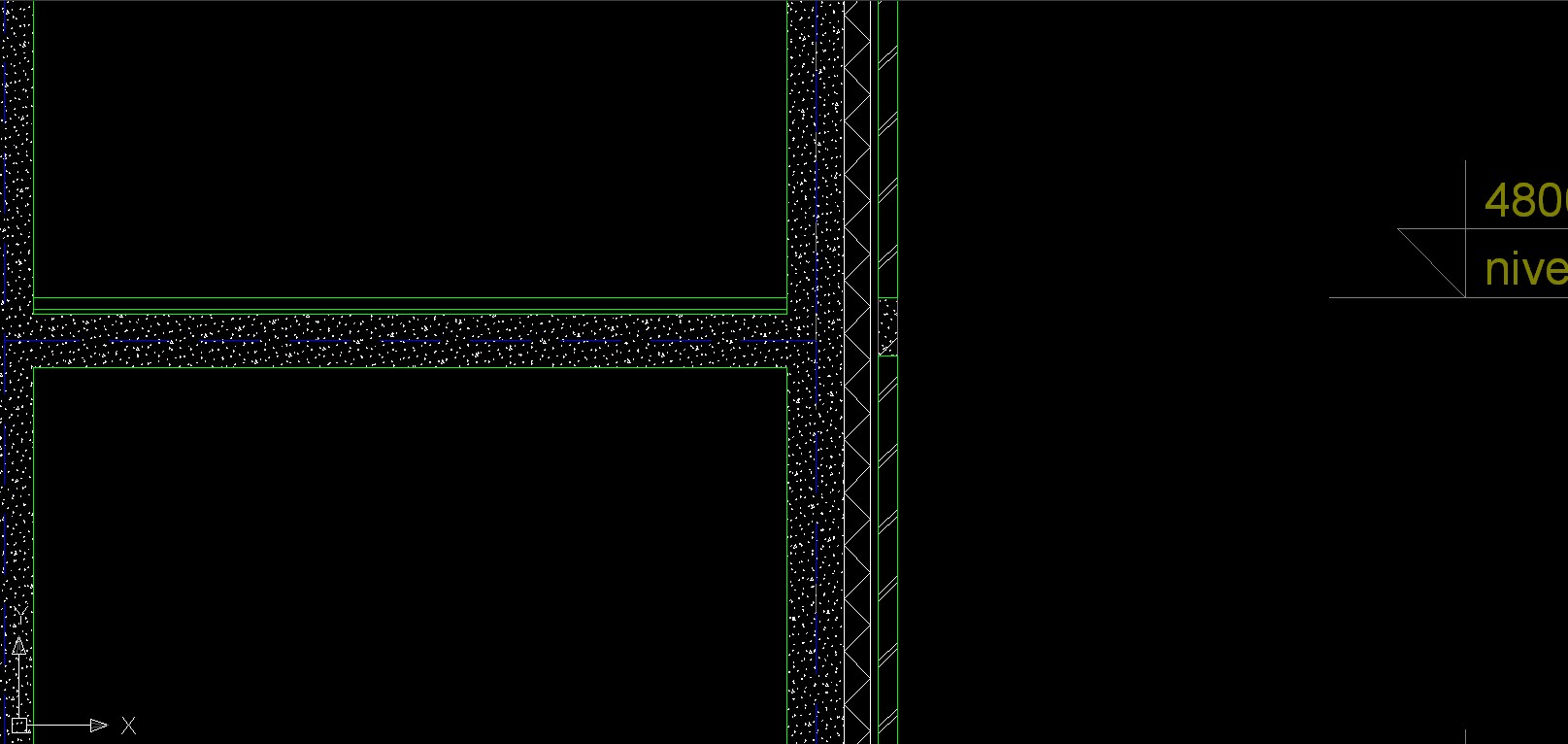

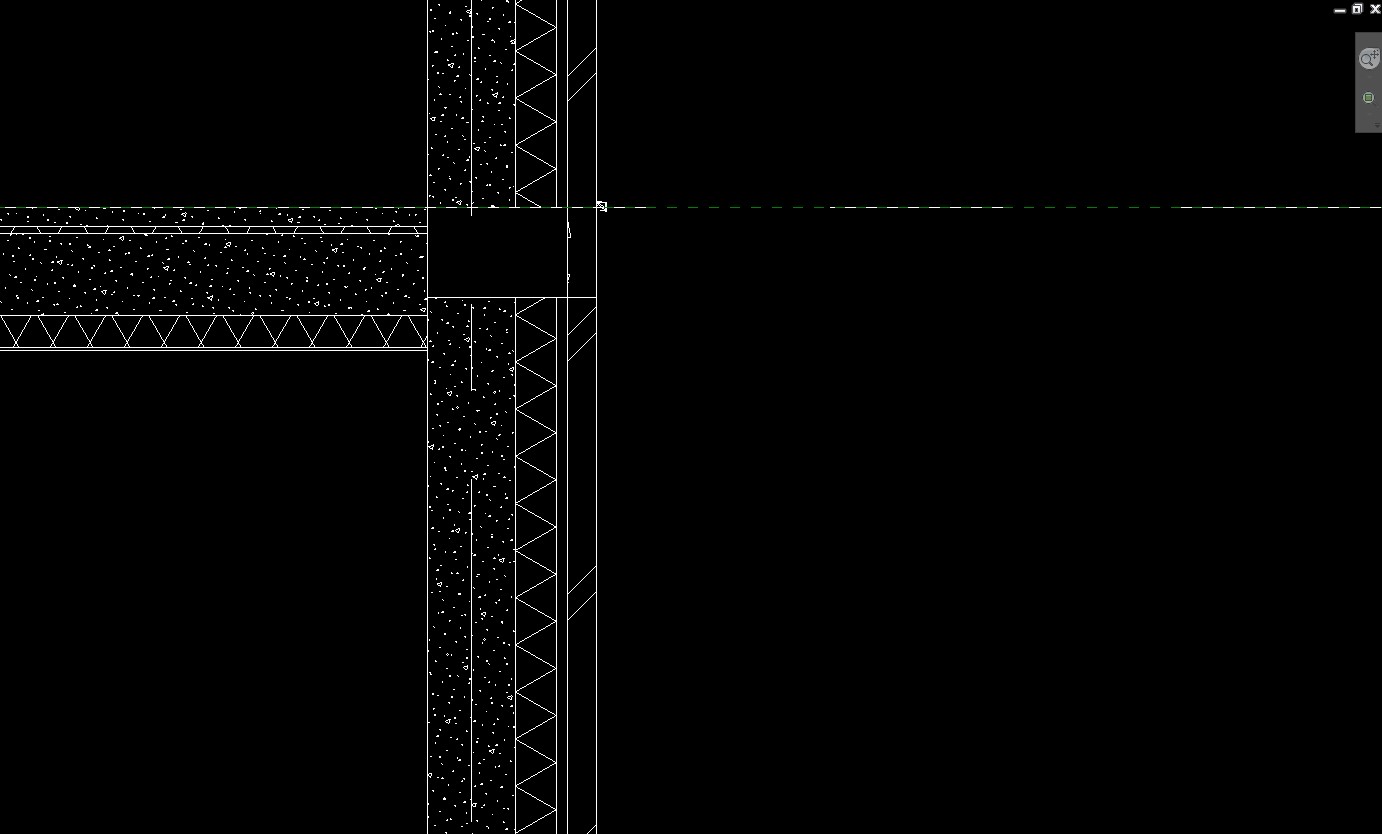

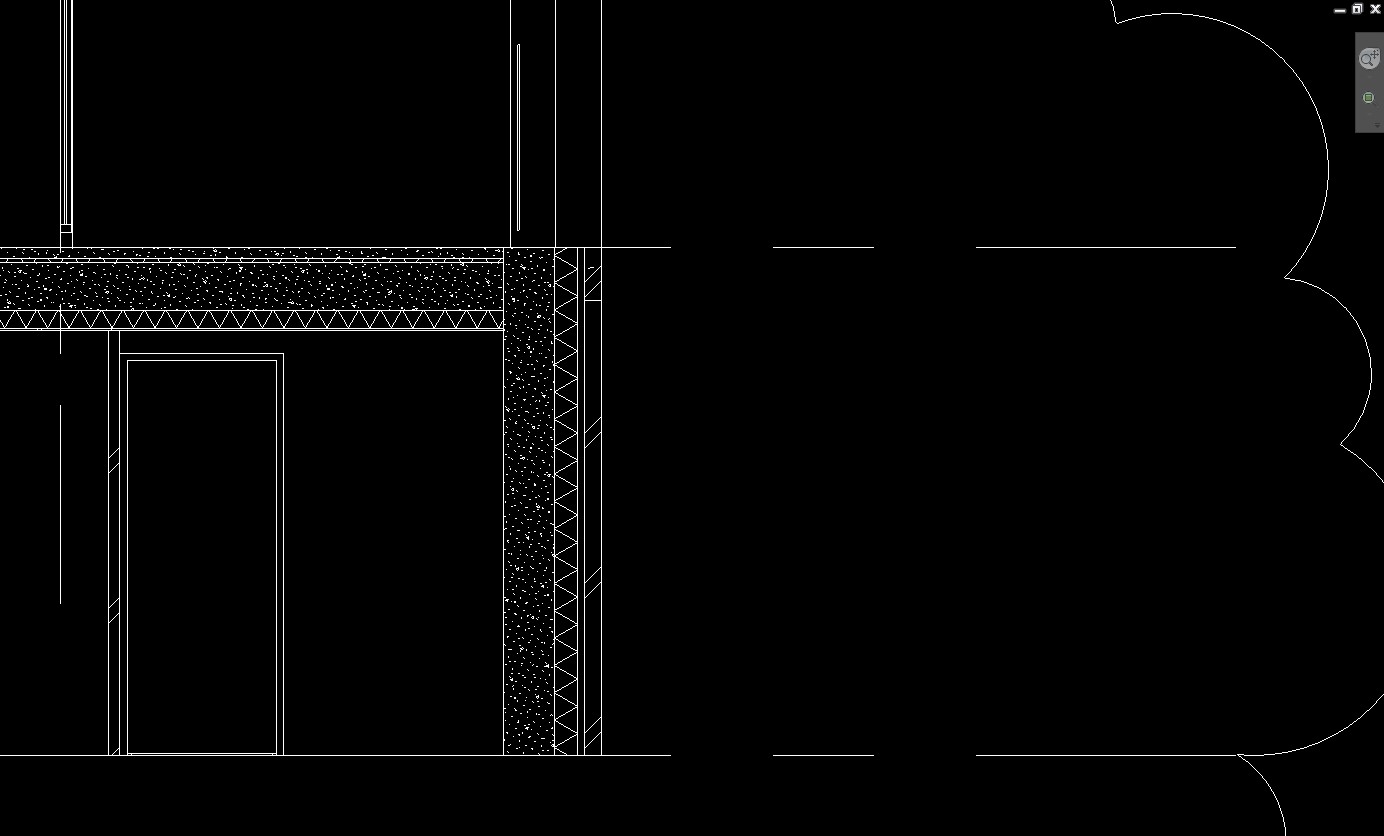

I have some problems about facade wall connection. Basically they are two elements, one is basica brick wall with insulation, another one is just 100 concrete strip, but I don't know how to trim a small part from a wall (BTW, I have tried cut geometry, but it doesn't work)。Attached is the effect I would like to achieve.

Thanks



Attached Images

79974_wall_connection_in_cad.jpg79974_wall_connection_in_reivt.jpg79974_wall_connection_in_reivt_when_use_cut.jpg

This user is offline



Tue, Aug 3, 2010 at 3:38:22 AM | How to trim a small part from a wall

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Why don't you use a simple Sweep or a Wall Sweep to create that concrete strip in that wall?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Aug 3, 2010 at 4:34:25 AM | How to trim a small part from a wall

#3

ichlove


active

Joined: Wed, Mar 10, 2010
32 Posts
No Rating


You are totally right, thanks Typhoon!

This user is offline



Tue, Aug 3, 2010 at 12:58:22 PM | How to trim a small part from a wall

#4

itsmyalterego


active
itsmyalterego Avatar

Joined: Thu, May 28, 2009
829 Posts
4 Stars: 16 Votes


Just for the sake of resolution, the way to make cut geometry work is to create an in-place family, then a void extrusion.  Cut geometry with the wall now, before closing the family editor.

This user is offline
