Forums >> Revit Building >> Technical Support >> Is Revit capable of modelling ETFE panels for curtain walling?

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jul 7, 2010 at 8:37:56 AM | Is Revit capable of modelling ETFE panels for curtain walling?

#1

xtbk9999


active

Joined: Sun, Sep 13, 2009
2 Posts
No Rating


As I want to have some experiments with Revit's ability in creating custom curtain panels,

I did a bit of research on google and saw no articles that could possibly answer my question..

I am wondering whether Revit 2011 has now got the ability to model something like this:

http://designplaygrounds.com/projects/pneumatic-panels-revised-rhinoscript/

 I noted someone also questioned over this topic on another thread

http://www.revitcity.com/forums.php?action=viewthread&thread_id=20608



many thanks.


This user is offline



Sat, Jul 10, 2010 at 7:10:23 PM | Is Revit capable of modelling ETFE panels for curtain walling?

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Take a look at this: http://buildz.blogspot.com/




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Jul 14, 2010 at 3:03:17 AM | Is Revit capable of modelling ETFE panels for curtain walling?

#3

xtbk9999


active

Joined: Sun, Sep 13, 2009
2 Posts
No Rating


Hi Typhoon

 I followed Zach's method of creating panels with curvature from this post and made my version of ETFE panels

(not perfect. but something good enough as a start for me)

http://buildz.blogspot.com/2009/12/conceptual-modeling-tips-with-joe-k.html

 The panel was made as a generic model then host into a pattern-based curtain panel as Zach did for his project.

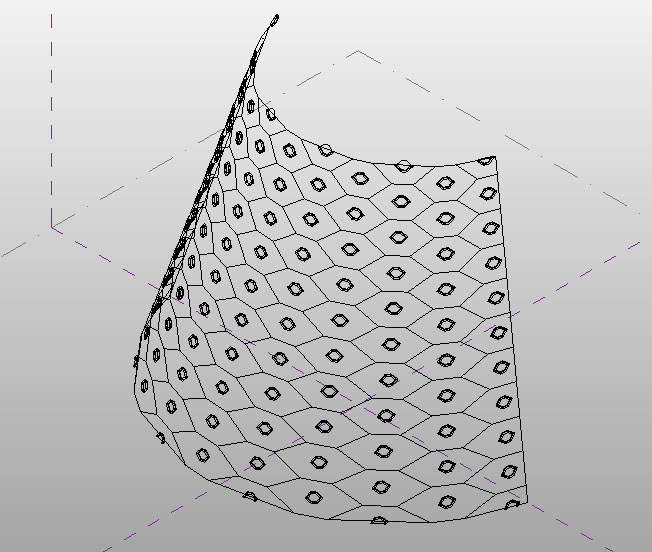

But now I come into the problem of panels not adjusting its size accordingly to suit the divided-surface of a conceptual mass. Do you think I have missed out some steps on the way?  Thanks.



Attached Images


This user is offline



Wed, Jul 14, 2010 at 9:08:52 AM | Is Revit capable of modelling ETFE panels for curtain walling?

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

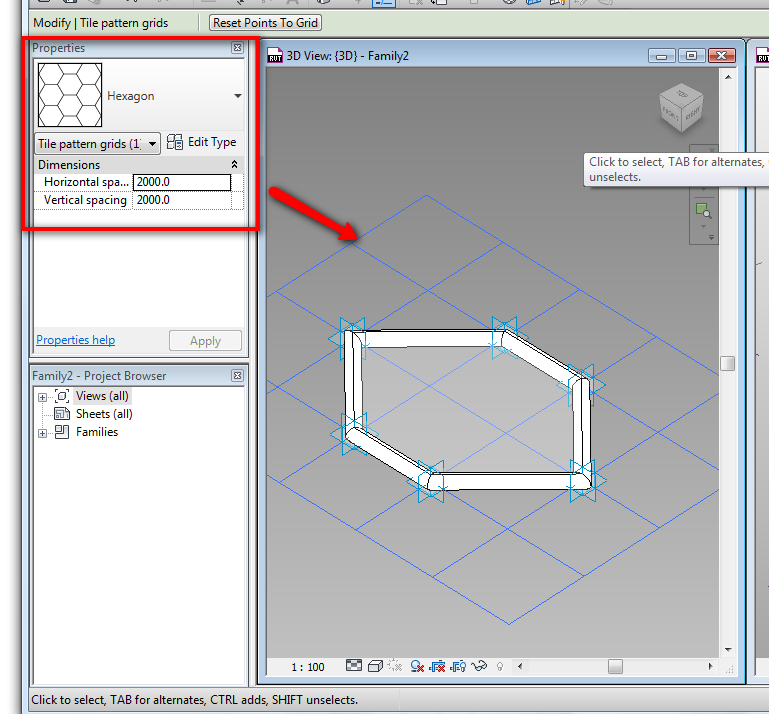

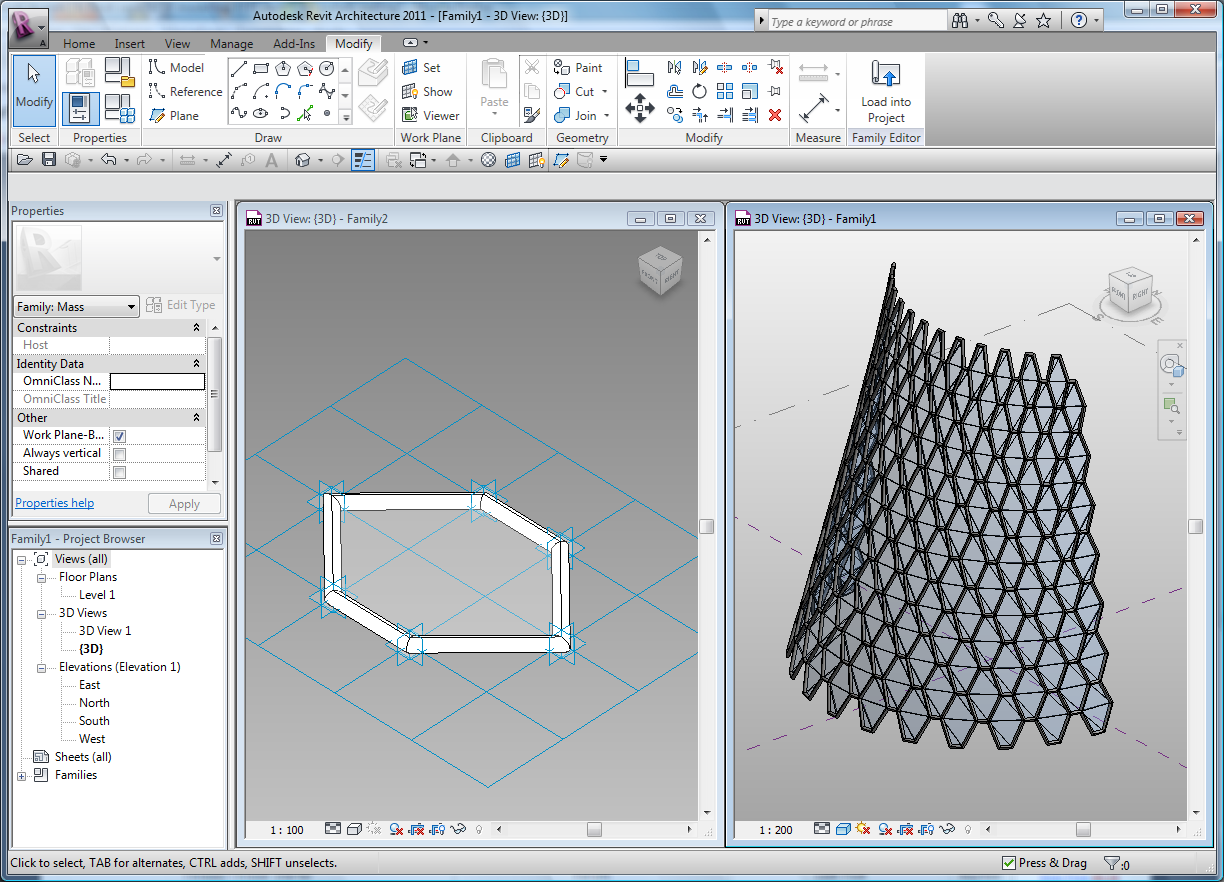

You did something wrong... select the Hexagon pattern to create that like you can see in the second image...







Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Oct 22, 2012 at 4:02:52 AM | Is Revit capable of modelling ETFE panels for curtain walling?

#5

polmod


active

Joined: Mon, Jan 9, 2012
3 Posts
No Rating


i know this was from 2 years ago, i just wanted to post my exterience on the topic.. i created my etfe pillows with a curtain wall panel by pattern (rectangular)

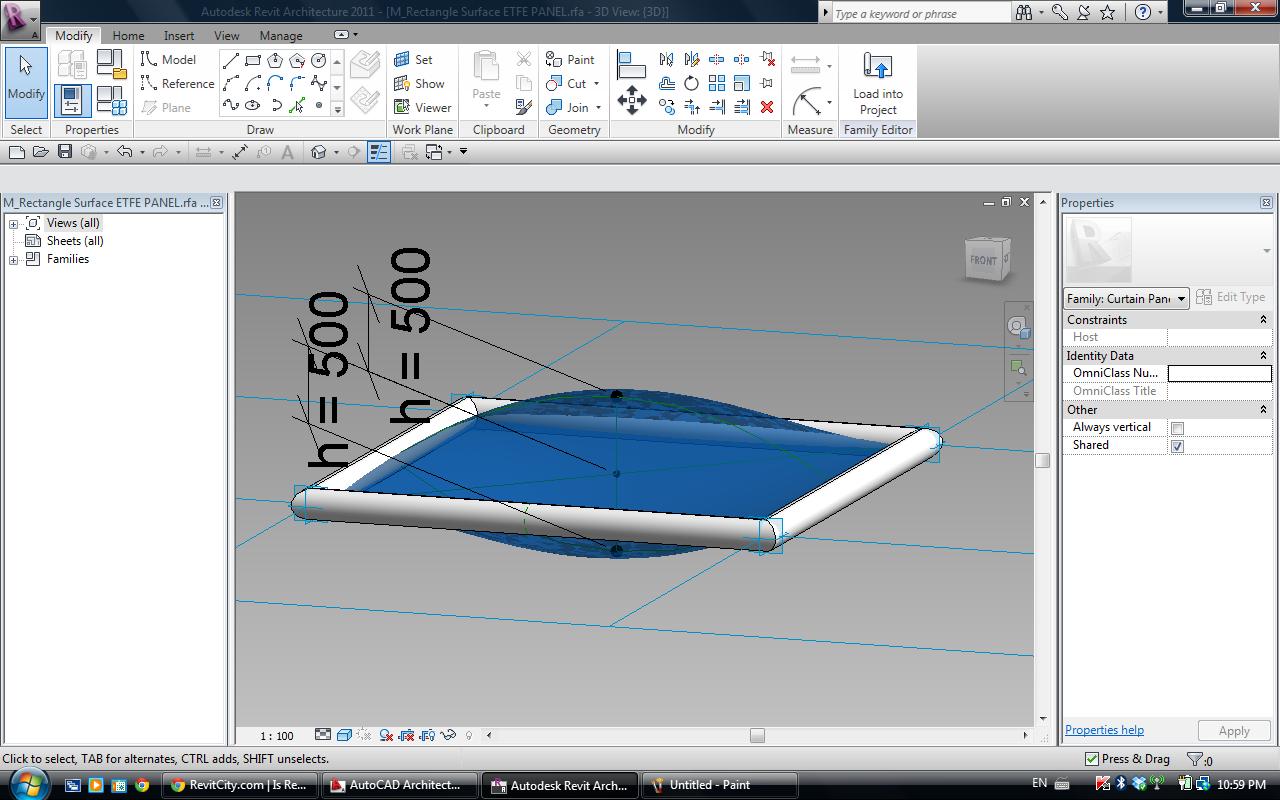

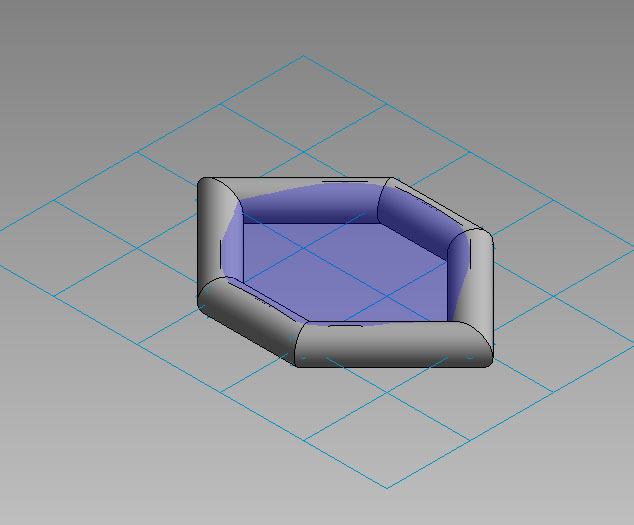

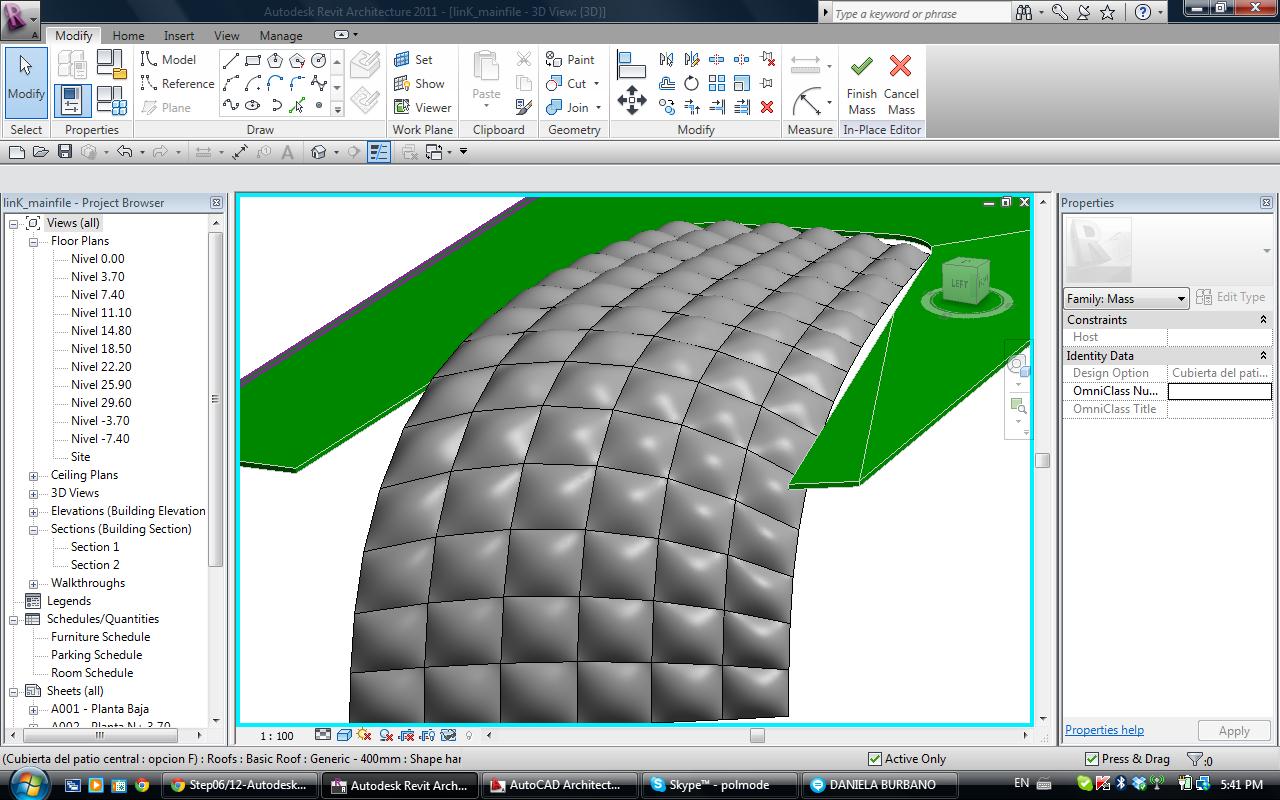

you can see in picture 1 the whole surface divided and in picture 2 how i modeled a single panel. i added a parameter to control the height of the pillow and thats it.

the pillow shape is basically a sweep of 3 things: starting line, middle arc, ending line.

if anyone wants more info on how i created the pillow shape, dont hesitate to contact me!



Paolo



Attached Images


This user is offline

View Website

Wed, Apr 16, 2014 at 10:43:44 AM | Is Revit capable of modelling ETFE panels for curtain walling?

#6

ambrozote


active

Joined: Sun, Nov 11, 2012
20 Posts
5 Stars: 2 Votes


I am sure very interested on knowing how you modelled the pillow shape!

Smile))


-----------------------------------

Revit Architecture 2013

ArchiCAD 16 Win

Windows 7 Enterprise 64-bit

This user is offline



Thu, Jun 12, 2014 at 2:30:41 PM | Is Revit capable of modelling ETFE panels for curtain walling?

#7

polmod


active

Joined: Mon, Jan 9, 2012
3 Posts
No Rating


I think its easier if you see it yourself. As i said before, its really simple: the shape is made of a sweep of a straight line in one edge, a parabolic line in the centre and another straight line at the end of the panel.

Check it out!



Good luck man



This user is offline

View Website

Wed, Nov 11, 2015 at 5:39:00 PM | Is Revit capable of modelling ETFE panels for curtain walling?

#8

Marialm2015


active

Joined: Wed, Nov 11, 2015
0 Posts
No Rating


Thanks for your very simple sweep method! I have downloaded the cushion and tried to get in on my Eskimo globe. However, the pattern does not show the cushion, just the square structure on my globe. How did you get the cushion on the pattern? I hope you can help me, I really like your etfe

This user is offline



Sat, Nov 14, 2015 at 4:41:56 PM | Is Revit capable of modelling ETFE panels for curtain walling?

#9

polmod


active

Joined: Mon, Jan 9, 2012
3 Posts
No Rating


Hi!

I did this so long ago i didnt even remember!

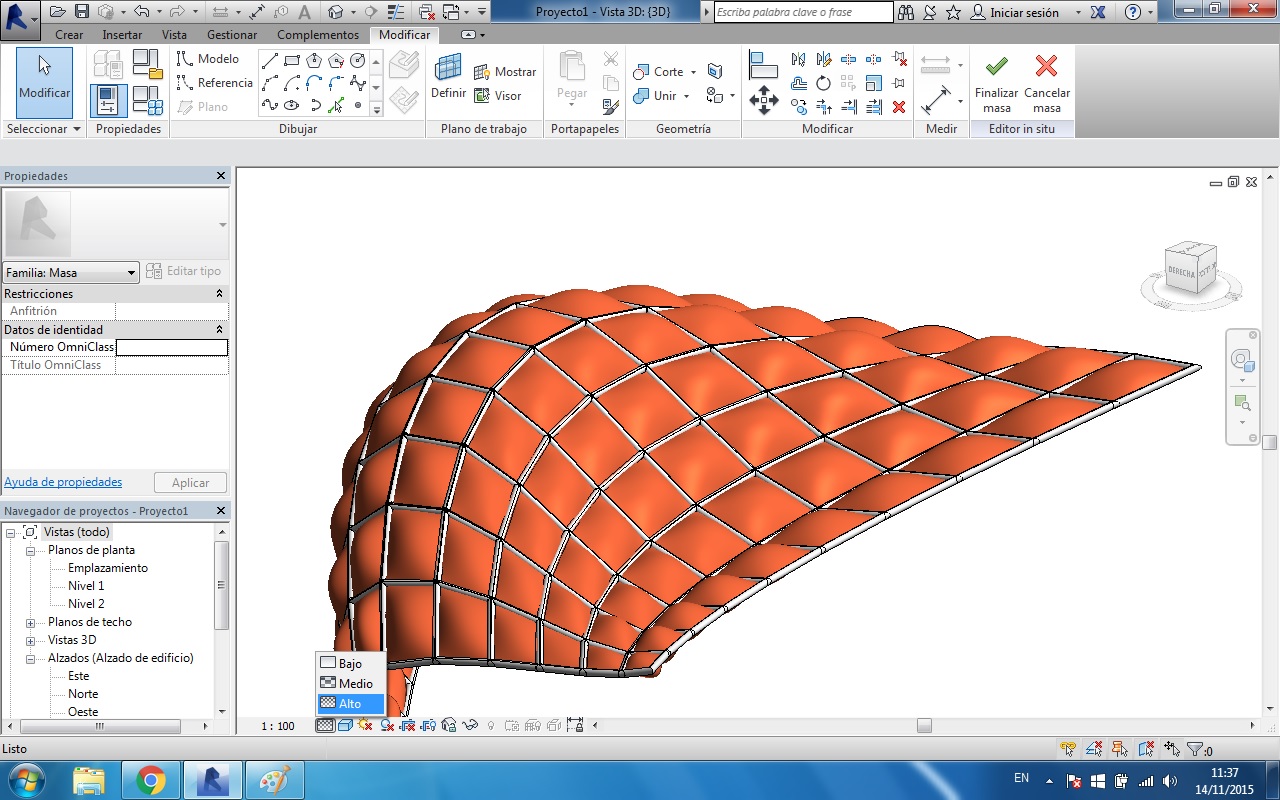

To show the panels you must change your view detail to HIGH (as in the first pic).

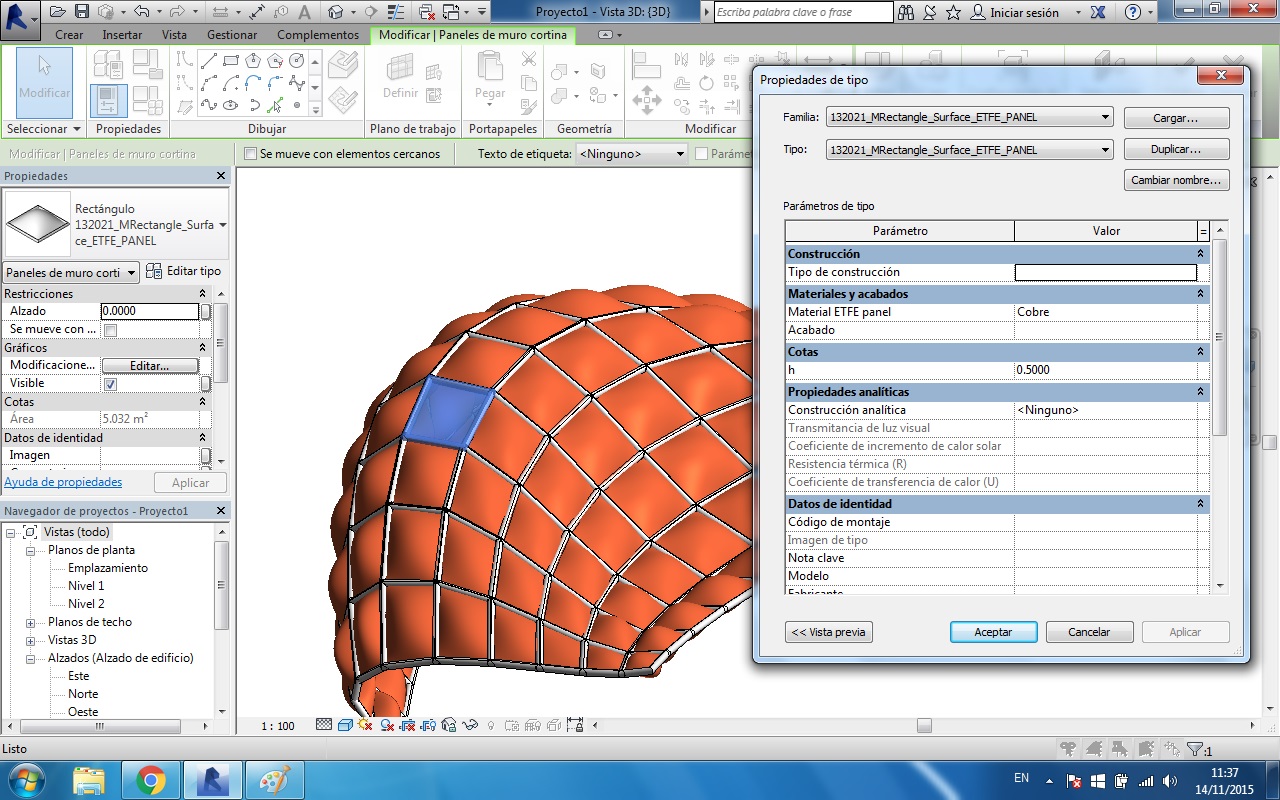

To change material and height of the etfe cushion select one panel and enter EDIT TYPE option (pic 2).



Hope it hepls!



Paolo



Attached Images


This user is offline

View Website
