Forums >> Revit Building >> Technical Support >> add edge to top of form

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Jun 20, 2010 at 8:55:12 PM | add edge to top of form

#1

stevek77


active

Joined: Mon, Nov 3, 2008
29 Posts
No Rating


I've been at this for several hours now, so I thought I'd post this up... is there a way to add an edge to the top of a rectangular form? I am able to add profiles to said form (just a rectangular box), and edges to the sides, but Revit will not let me choose the top of the form to, for instance, create a gable roof form. Obviously, Revit can do this. How?


This user is offline



Mon, Jun 21, 2010 at 1:23:15 PM | add edge to top of form

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 369 Votes


Are you doing mass modeling, in-place family or actual family?  Are you in 2010-11 - ?



If you are in a project, just create a roof by footprint.








This user is offline



Tue, Jun 22, 2010 at 6:23:37 AM | add edge to top of form

#3

stevek77


active

Joined: Mon, Nov 3, 2008
29 Posts
No Rating


my roof is part of a complex mass for a grad school project. There is no way to add edges the top of a mass object, only the sides?

This user is offline



Tue, Jun 22, 2010 at 6:26:07 AM | add edge to top of form

#4

stevek77


active

Joined: Mon, Nov 3, 2008
29 Posts
No Rating


...wait a second, can what I want to do be done in project mode or do I have to use the conceptual massing environment to do this?

This user is offline



Tue, Jun 22, 2010 at 9:23:08 AM | add edge to top of form

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


An image paint more than 1000 words so what are you trying to do? images please...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Jun 24, 2010 at 8:17:33 PM | add edge to top of form

#6

stevek77


active

Joined: Mon, Nov 3, 2008
29 Posts
No Rating

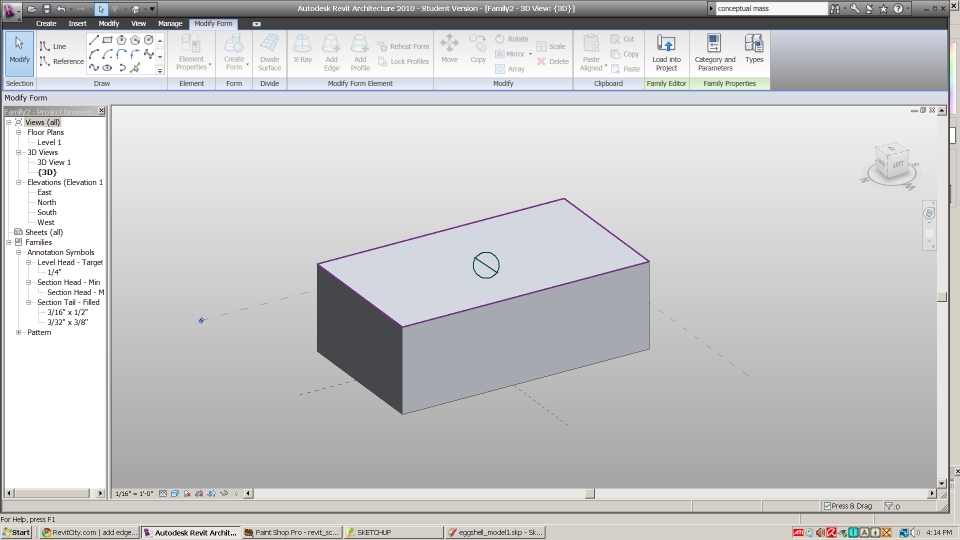

attached is a screenshot from revit of me trying to add an edge to the top of my mass in conceptual massing mode...I just get a circle with a slash through it.

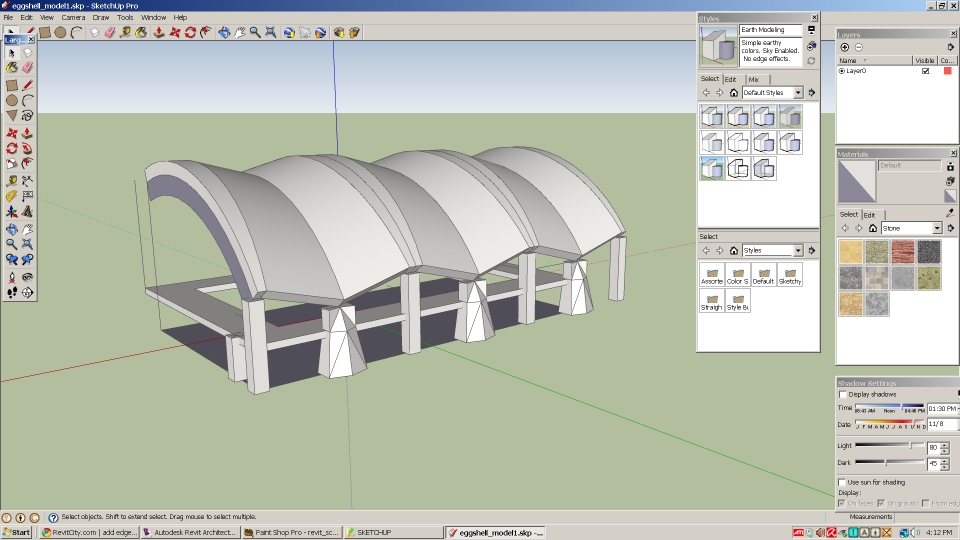

Attached is a conceptual model I did in sketchup in 20 minutes - this is what I would like to do in revit, at least the roof shape roughly.



Attached Images


This user is offline



Fri, Jun 25, 2010 at 1:58:21 PM | add edge to top of form

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


I can't see that in plan view BUT i believe you don't need the "conceptual mass" to create that kind of roof, just use "In-Place" family and use solid "Swept Blend" then you can define the Path and the two profiles (front and back).




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
