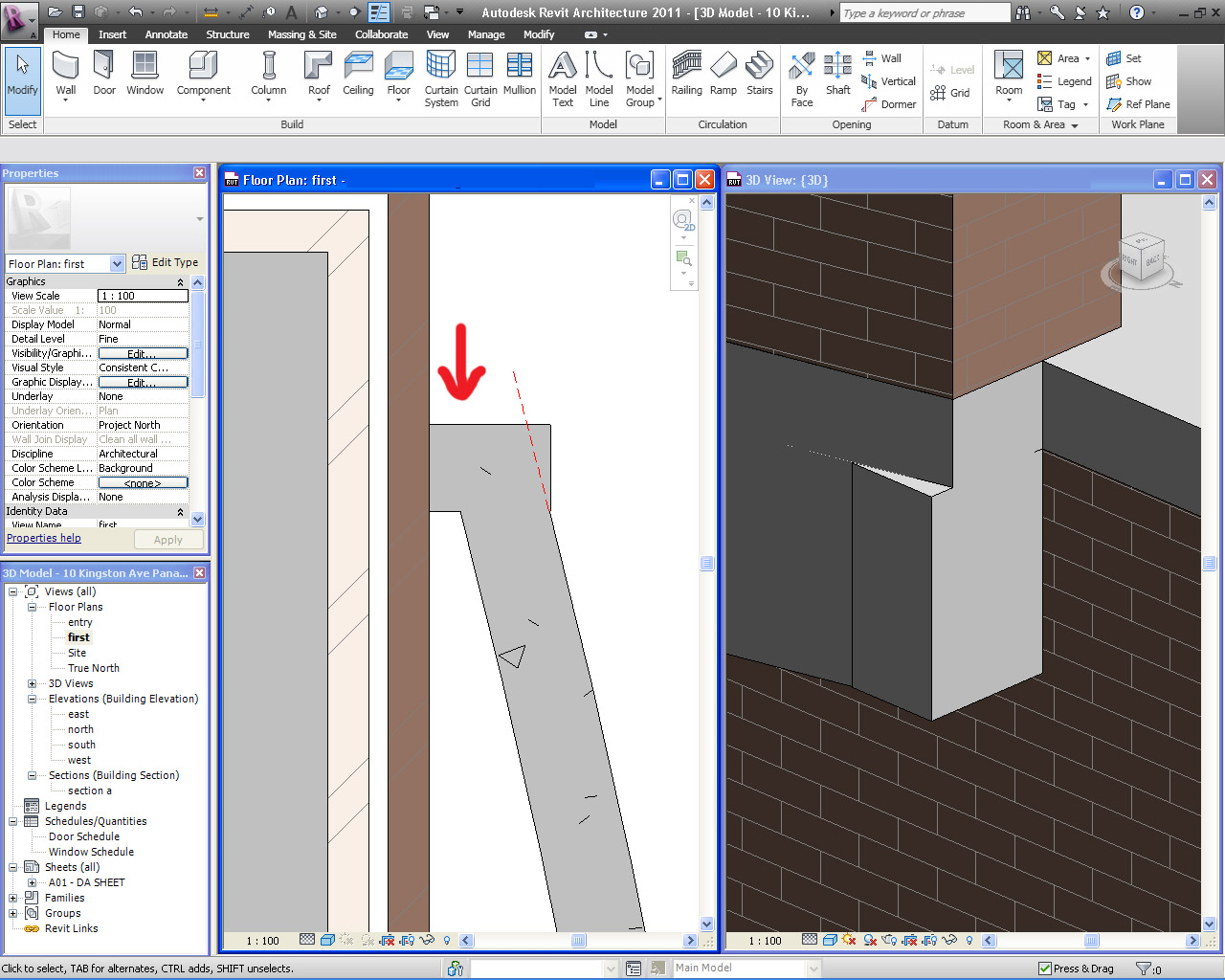

Guys, how do I make the beam with the arrow join with the arched beam without having to 'model in place' the whole thing?

I just want it to end where the reference plane is.

Any ideas?

Cheers.

Attached Images

This user is offline

active

Joined: Sun, Feb 7, 2010
3 Posts
No Rating

draw another ref plan in plan and tell the beam to cut to the ref plane.

-Anth
