Forums >> Revit Building >> Technical Support >> composite panel walls

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Jun 16, 2010 at 9:59:57 PM | composite panel walls

#1

RT21


active

Joined: Thu, Jun 10, 2010
1 Posts
No Rating


what is the best way to build a composite aluminum panelled wall that will allow me to stretch or change panel sizes and show a reaveal at panel edges

This user is offline



Thu, Jun 17, 2010 at 6:17:34 PM | composite panel walls

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

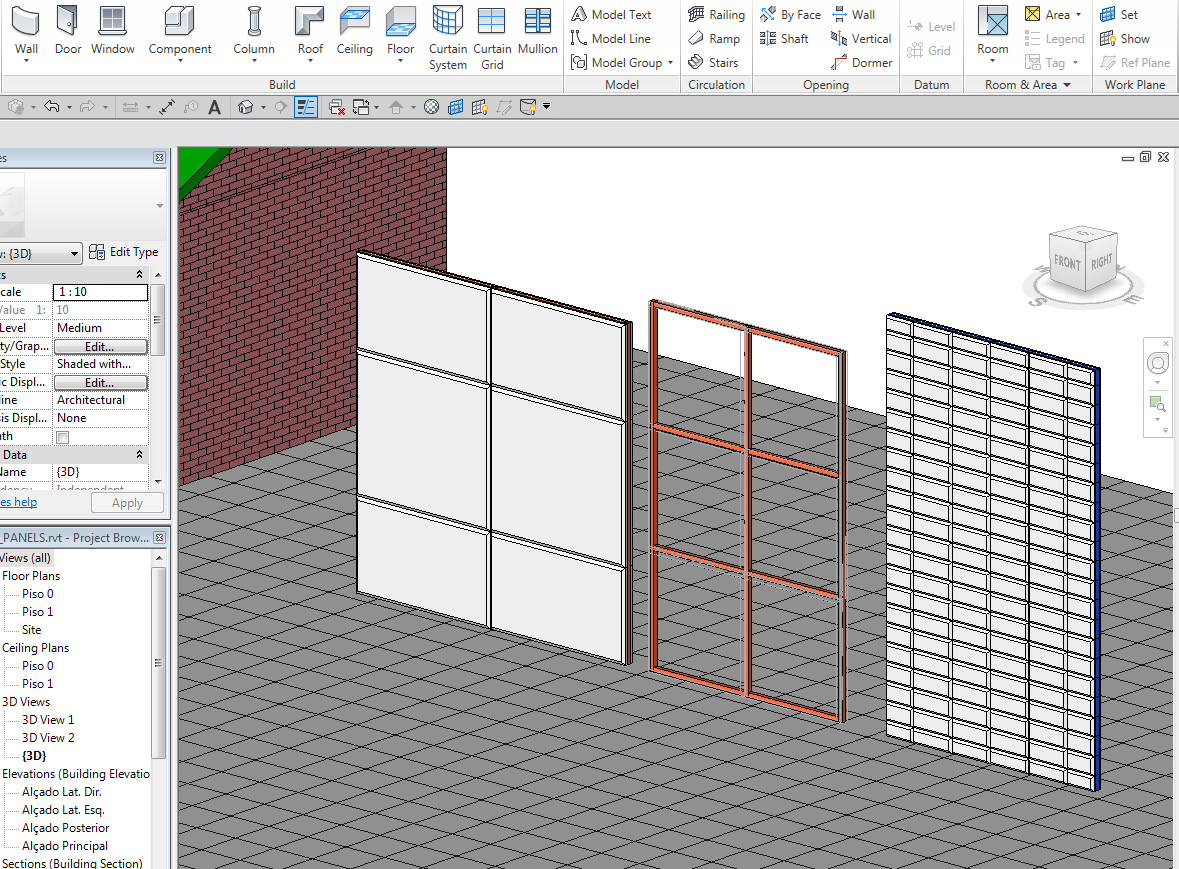

Like this? Curtain Walls....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Feb 24, 2011 at 6:18:48 AM | composite panel walls

#3

jbrewlet


active

Joined: Sat, Sep 13, 2008
4 Posts
No Rating


holy crap, how did you make the bevels on the panels? i really REALLY want to learn how to do that.



thread i started on just that issue... could you help?

http://www.revitcity.com/forums.php?action=viewthread&thread_id=23449


This user is offline



Thu, Feb 24, 2011 at 10:49:18 AM | composite panel walls

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes


Like I said: "Curtain Walls", just create a "Curtain wall panel" family like you want, in project divide the curtain wall like you need and replace the panels by the NEW panel you created.



Something like this: http://www.revitcity.com/gallery.php?action=view&gallery_id=7803




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Feb 24, 2011 at 5:33:28 PM | composite panel walls

#5

jbrewlet


active

Joined: Sat, Sep 13, 2008
4 Posts
No Rating


Ah, well I got as much as this.



It gives me an error because they aren't perfect rectangles or something...sigh.

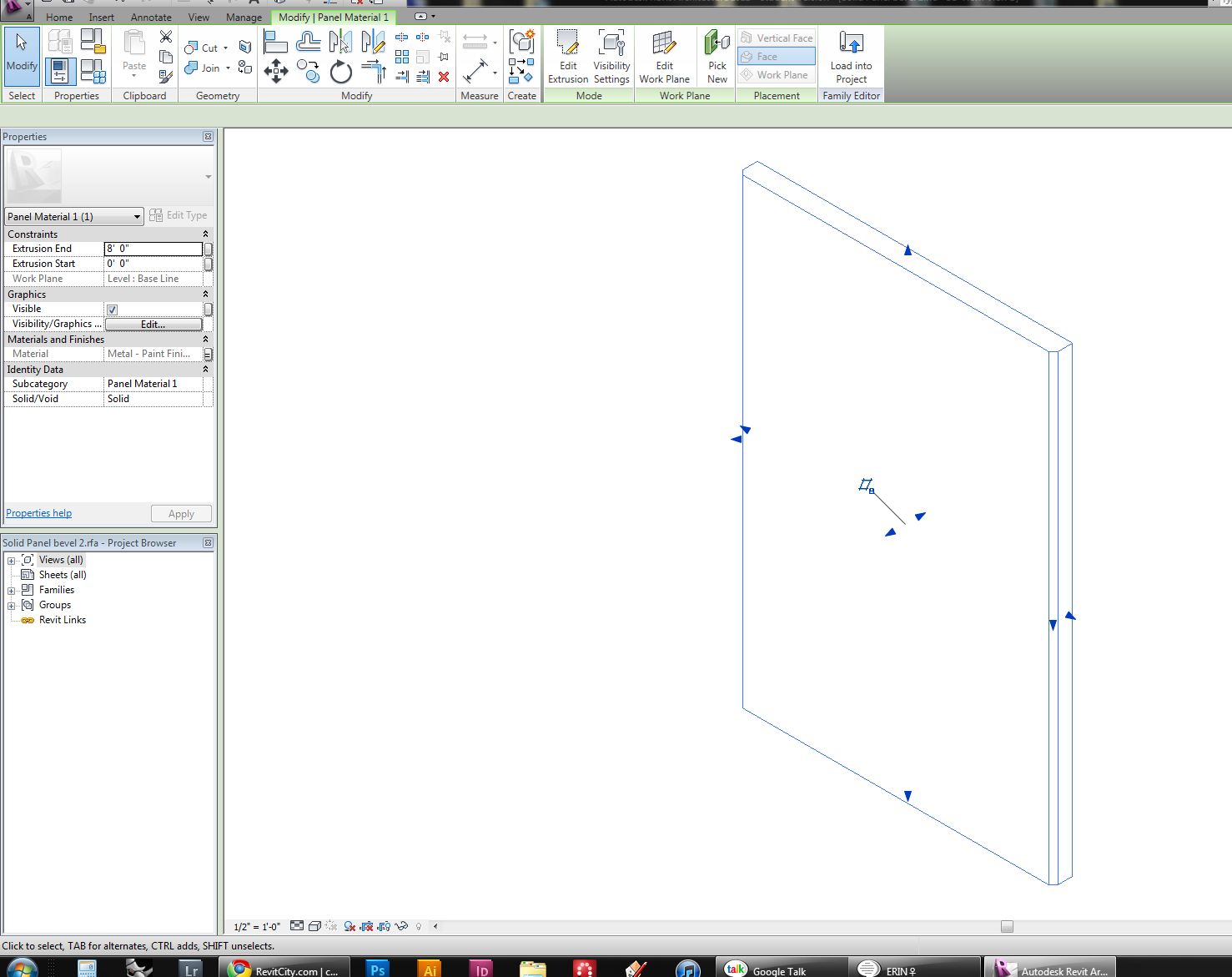

I edited the original Solid Panel that comes with revit to have a slight bevel.  It only bevels two sides because it's an extrusion and then of course the error with using them in my project.



Would someone mind helping me create a more flexible beveled that can adapt to differing size panels?



Attached Images


This user is offline



Thu, Feb 24, 2011 at 8:17:18 PM | composite panel walls

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes


"It gives me an error because they aren't perfect rectangles or something...sigh." - That's correct, in this case you will to create a "Metric/Imperial Curtain Panel Pattern Based" and create that in a different way, check this blog from ZACH KRON:

http://buildz.blogspot.com/



http://www.youtube.com/user/zachkron#p/u




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Feb 25, 2011 at 7:32:37 PM | composite panel walls

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

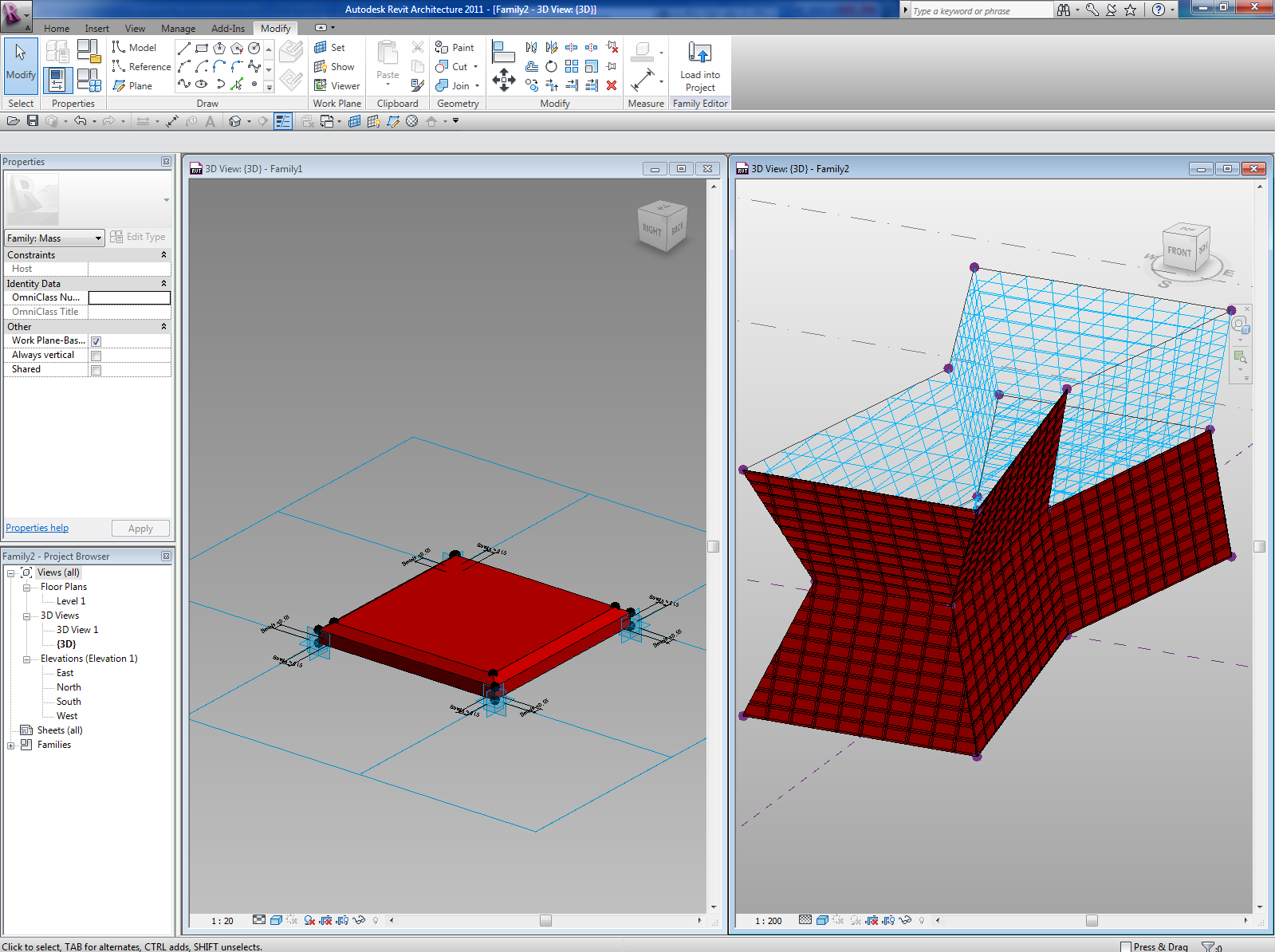

something like this:





Attached Images


Attached Files

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
