Forums >> Revit Building >> Technical Support >> Array Formulas

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jun 15, 2010 at 4:41:21 AM | Array Formulas

#1

mgruenba


active

Joined: Mon, Mar 8, 2010
11 Posts
No Rating


Hi,

I need to design a new family for a patio cover system comprised of several beams. There is a standard separation of 4-1/2" between the beams. I would like to be able to enter the width of the patio cover and have Revit add or subtract the needed (or unneeded) beams. Does anyone know how I would do this? Would I use array formulas for this? I'm clueless right now. Help please.

Thanks


This user is offline



Tue, Jun 15, 2010 at 7:10:34 AM | Array Formulas

#2

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


use reference planes for the two outer beams and a formula on the array.

Set the parameter with the formula to integer and i think revit will add or remove beams like you whant.

i have made similar families so it is possible,,,




-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Wed, Jun 16, 2010 at 2:37:47 PM | Array Formulas

#3

mgruenba


active

Joined: Mon, Mar 8, 2010
11 Posts
No Rating


Thank you so much for your help. I've never used array formulas before. Could you provide some more information on the format for a formula? Where do i enter the formula?

This user is offline



Thu, Jun 17, 2010 at 9:55:45 AM | Array Formulas

#4

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


in the family editor, in the types window, next to where you would usualy fill in your parameter, there is a column called,

Formula,

using the F1 help menu will also help you a lot of the way.

note that you can also use names of other parameters in these formulas,

example,   =(Height +500mm ) / 2



GL



Edited on: Thu, Jun 17, 2010 at 4:57:43 AM

-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Sun, Jun 20, 2010 at 11:52:38 PM | Array Formulas

#5

mgruenba


active

Joined: Mon, Mar 8, 2010
11 Posts
No Rating


Thank you once again for all your help. One last question.

So I've made the formula and the formula works. Now, how do I connect that formula to the beams? In other words, with that formula in place, how do i assign that formula to the beams that I want in place?

I would greatly appreciate your help.

Regards


This user is offline



Mon, Jun 21, 2010 at 5:25:16 AM | Array Formulas

#6

mcantwell


active
mcantwell Avatar

Joined: Thu, Aug 24, 2006
86 Posts
5 Stars: 1 Votes

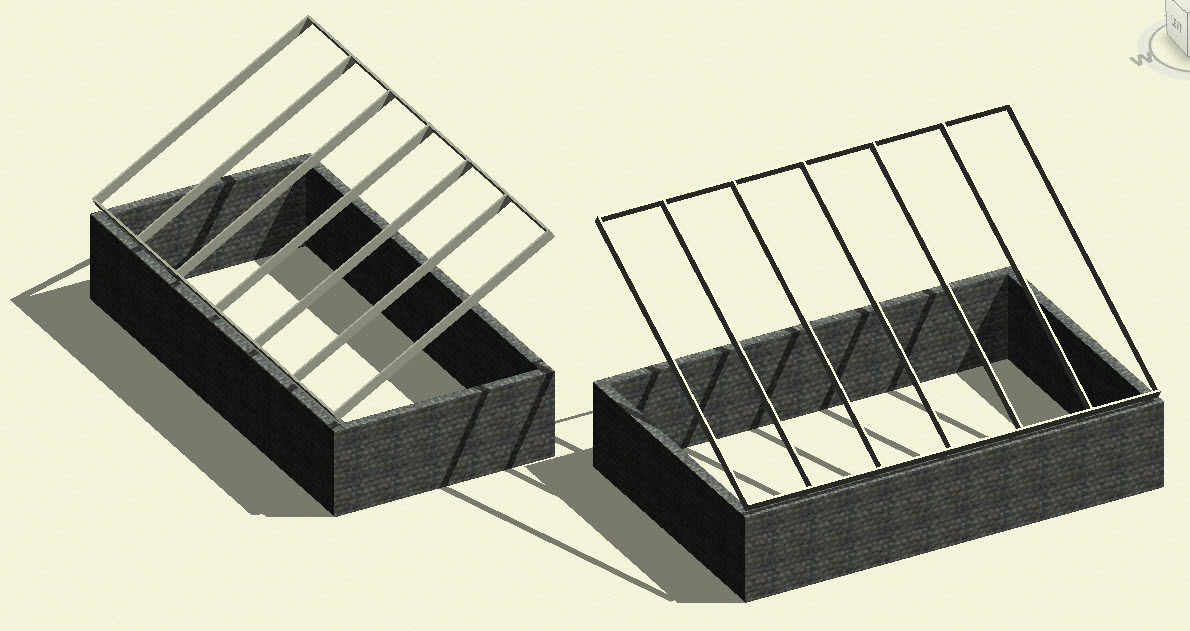

Would a beam system do what you want?Edited on: Tue, Jun 22, 2010 at 5:50:29 PM

Edited on: Fri, Jun 25, 2010 at 6:31:27 AM

Attached Images


This user is offline

View Website

Mon, Jun 21, 2010 at 1:44:31 PM | Array Formulas

#7

TKennedy


active

Joined: Wed, Oct 7, 2009
654 Posts
4 Stars: 7 Votes


Select one of the arrayed objects. You should get a line with a number similar to a temporary dimension. Select the line and one the options bar there will be a dropdown where you can assign your parameter.

This user is offline



Thu, Jun 24, 2010 at 2:58:40 PM | Array Formulas

#8

mercat11


active

Joined: Wed, Aug 10, 2005
16 Posts
No Rating

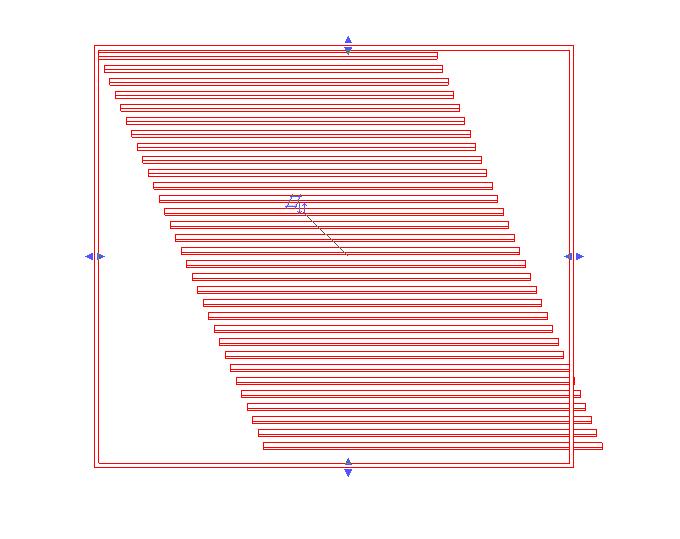

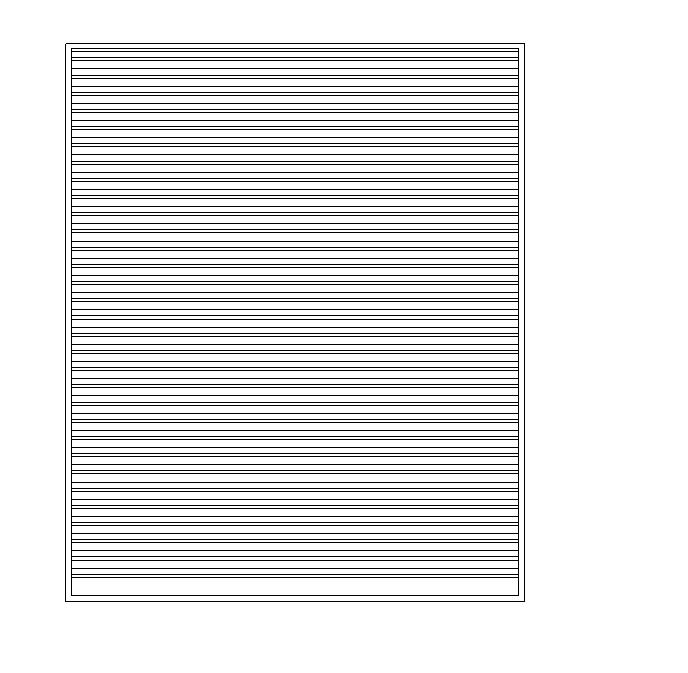

I seem to be having an issue with a version of this... I have a working formula for arraying timber beams in a brise soleil setup (Calculated Internal Width / Fin Spacing) which works fine front to back but when increasing the width the array slants from one (interpolates between its current location at one end and the new location at the other (pics attached)) Ive been trying to set it up with instance paramter dimensions to allow quick control on plan and with using both in plcae geometry and nested family geometry.. Revit 2009 SP3

Attached Images


This user is offline

View Website

Thu, Jun 24, 2010 at 3:09:49 PM | Array Formulas

#9

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


Align and lock the first and the last to a ref plane.

-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Thu, Jun 24, 2010 at 3:12:51 PM | Array Formulas

#10

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


or allign and lock to your frame in this case

-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Fri, Jun 25, 2010 at 9:31:21 AM | Array Formulas

#11

mercat11


active

Joined: Wed, Aug 10, 2005
16 Posts
No Rating

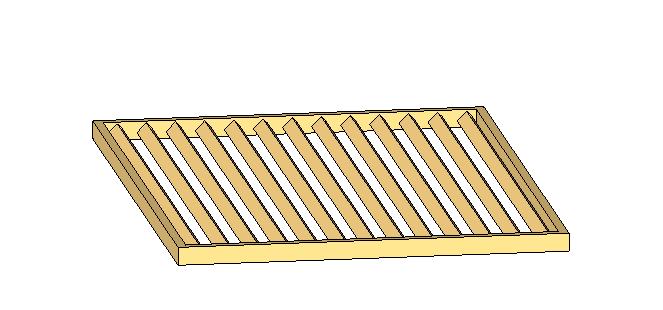

Thanks for reply - I had tried aligning and locking to both the frame and ref plane but it seems that if beam is group arrayed (for formula) then this overrides the align and lock. Having a new parameter to control the nested instance dimension parameter (for the nested beam family) means an align and lock isnt necessary. It seems to work and flex ok with this method.

Cheers again.



Attached Images


This user is offline

View Website
