Forums >> Revit Building >> Technical Support >> Curved roofs with bullnose eaves
|
|
|
active
Joined: Mon, May 17, 2010
181 Posts
 |

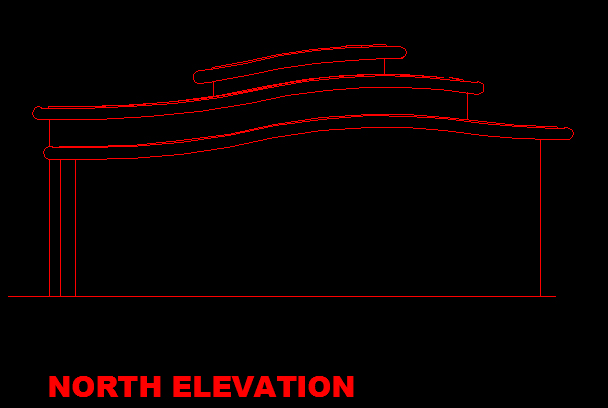

Hi, I'm trying to create a curved roof with bullnose eaves. Attached is a pic from AutoCAD showing what I would like to acheive. Essentially, the roof has two curves as seen from the end elevation and is extruded down the length of the building. I would appriciate some advice on the best way of creating this. Cheers.
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
You can create this roof by extrusion in the horizontal direction. Use the profile that you show in elevation.
|
This user is offline |
|
|
|
active
Joined: Mon, May 17, 2010
181 Posts
|
I tried roof by extrusion. Whilst it creates the roof OK, it only has square or plumb edges, and not bullnose (i.e. round). Am I missing something?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |

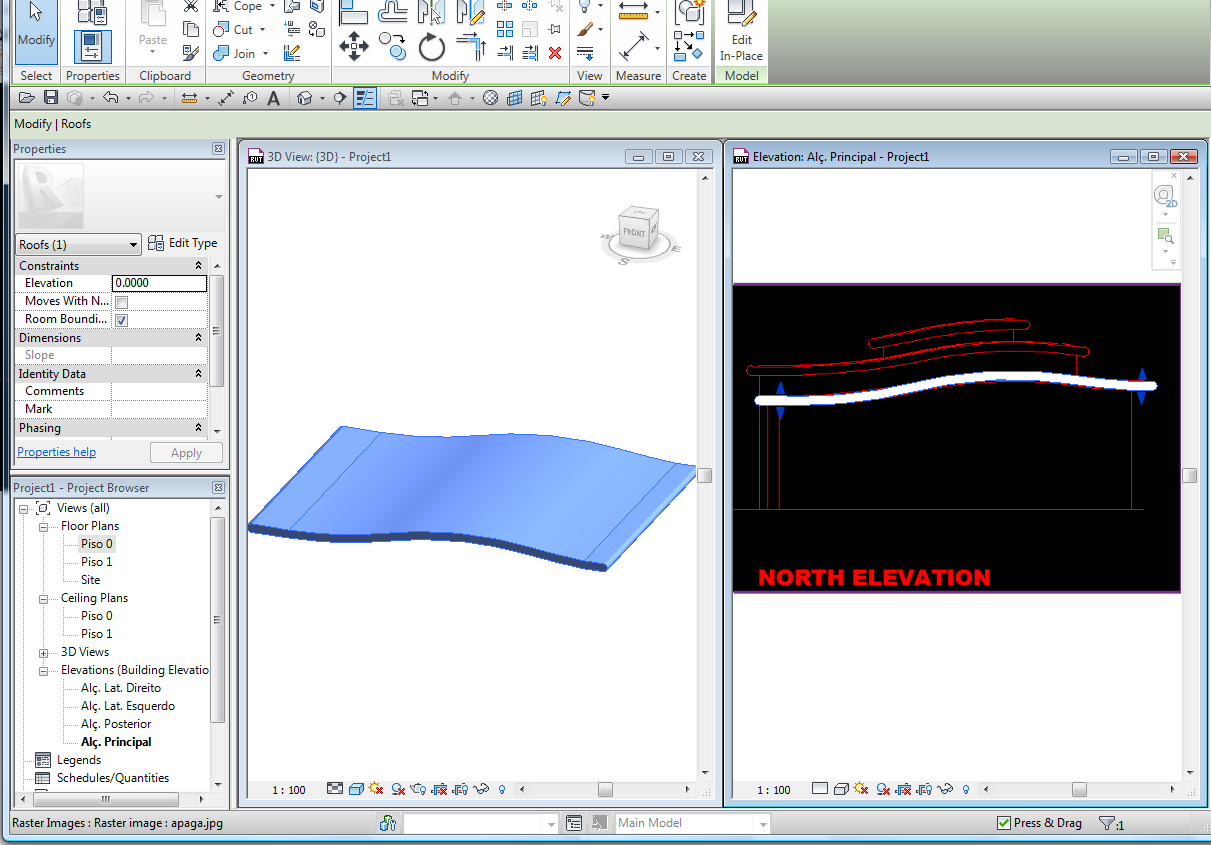

Use the create "In-Place" in "Roof" category and choose "Solid Extrusion" then draw the shape like you want...
Edited on: Fri, Jun 4, 2010 at 12:48:15 PM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Mon, May 17, 2010
181 Posts
|
Perfect - Thanks.
|
This user is offline |
|
|
|
active
Joined: Mon, May 17, 2010
181 Posts
|
Sorry - Another question about this!! Whats the best way of cutting the walls to the underside of the roof? The cross walls, I did edit profile and picked the underside of the roof which worked a tread, but I can't do this with the walls along the length of the roof due to the curve. Is there a better way? Thanks.
|
This user is offline |
|
|
|
active
Joined: Mon, May 17, 2010
181 Posts
|
D-oh! So OK, you can attached a wall to a roof - that was easy!
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
