Hi Guys,

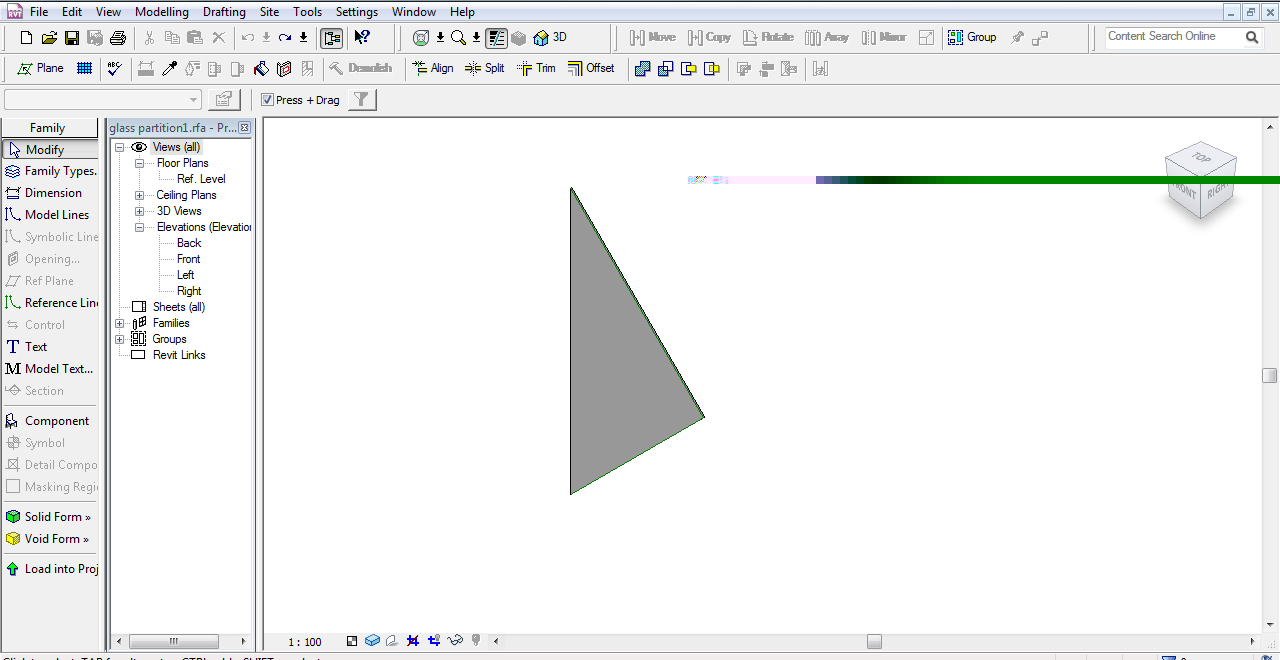

I'm trying to make a dynamic parametric curtain wall panel that consist of 4 triangular glass pieces that can open and close connected to a mechanicaly controled actuator or a spider web connector that i can fully control, but the main issue that im facing is that i can not make a radial array in elevation view of the nested family , so the steps are after making the glass partition parametric i.e(length,width,height,depth) which is all flexing perfectly, i got then to import it in another generic model family as a nested family to then try radial arraying it in elevation view but unfortunately this error message comes up "Element cannot be mirrored or rotated in a manner that changes its angle relative to the ground." so if anyone has a different way on achieving the required result please let me know on how to tackle this issue.Please have a look at the image attached to get an idea of what im trying to make.

cheers
