Forums >> Revit Building >> Technical Support >> ETFE cushion roof help?!

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, May 26, 2010 at 11:15:36 PM | ETFE cushion roof help?!

#1

hmt2009


active

Joined: Wed, May 26, 2010
4 Posts
No Rating


Hi, I am basically trying to design a ETFE roof in revit, I have tryed creating a curtain based panel but can never get the curved shape and reference lines right to make it work, could anyone help?

This user is offline



Thu, May 27, 2010 at 8:47:07 AM | ETFE cushion roof help?!

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi, i'm from Portugal and i don't know what is a "ETFE cushion Roof", can you provide some images so I can figured it?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, May 27, 2010 at 2:39:34 PM | ETFE cushion roof help?!

#3

hmt2009


active

Joined: Wed, May 26, 2010
4 Posts
No Rating


Hi,

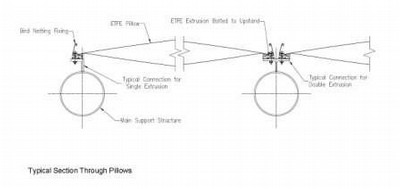

Yeh I have attached some images, they are like blown up membranes to make air pockets within a specified frame, the frame can be any closed shape. I attached a image and a section aswell to get an idea.

Although i am not looking to create such a complicated shape,i am looking to use a basic parametric square frame.



Edited on: Thu, May 27, 2010 at 9:54:23 AM

Attached Images


This user is offline



Thu, May 27, 2010 at 3:38:00 PM | ETFE cushion roof help?!

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


To create that you must use the "Conceptual mass"....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, May 27, 2010 at 3:53:55 PM | ETFE cushion roof help?!

#5

hmt2009


active

Joined: Wed, May 26, 2010
4 Posts
No Rating


Hi,

I do understand this could be done using a conceptual mass quite easily, but i thought it maybe possible to create a curtain pattern panel family, insteading to have model 20 or so uniquely shaped 4 cornered pillows. as it simply is a cushion constrained to a frame like a curtain wall?


This user is offline



Thu, May 27, 2010 at 5:48:16 PM | ETFE cushion roof help?!

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


If you know "I do understand this could be done using a conceptual mass quite easily" and you want to create that with Curtain walls, then do it.




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, May 27, 2010 at 8:11:44 PM | ETFE cushion roof help?!

#7

hmt2009


active

Joined: Wed, May 26, 2010
4 Posts
No Rating


I don't think you understood where i was coming from, it is easy create one cushion in conceptual mass, but if i were to have a colinear curtain wall which had 400 panels which were all unique!! It would take hell of along time to do.

What i am asking is how could i model a pillow/cushion so that its parameters would change to fit its pattern with in the curtain wall, this is what i am having trouble with.. understand?


This user is offline



Sun, Jul 11, 2010 at 1:49:58 AM | ETFE cushion roof help?!

#8

nastyclown


active
nastyclown Avatar

Joined: Tue, Jul 14, 2009
273 Posts
4.5 Stars: 9 Votes


check the mass families that already come with revit in

C:\Documents and Settings\All Users\...\Autodesk\RAC 2011\Metric Library\Curtain Panel By Pattern

(is the same route for the templates families).

 Check the M_Hexagon Surface.rfa famili, and if you can do mass, play a lil with it, and then load it into your proyect.There mass the skin of the proyect, and load into it the uv mass you edited. Tadaaaah!!!!
