Forums >> Revit Building >> Technical Support >> walls not visible on floor plan

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, May 12, 2010 at 7:31:31 PM | walls not visible on floor plan

#1

sudanhafif


active

Joined: Thu, May 7, 2009
14 Posts
No Rating

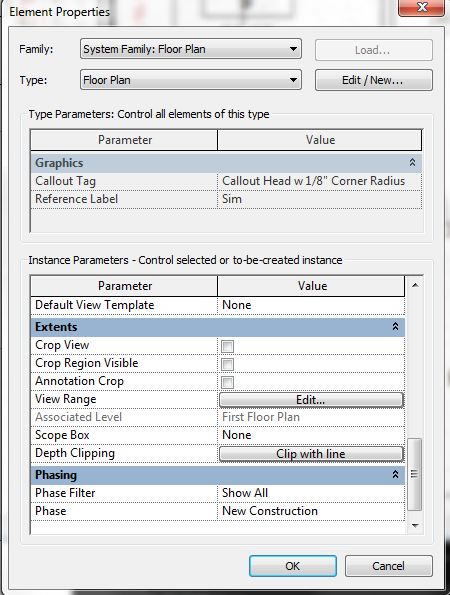

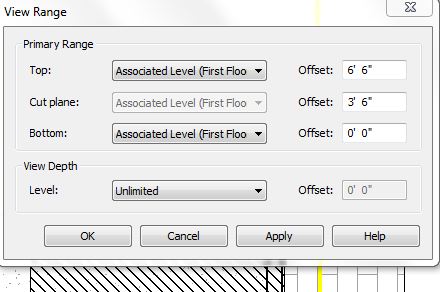

Hi I draw walls on floor plan but they are not visible. View range  window numbers are  as such in the attached file.

This settings seem to work on other projects but it does not work on thiis current project. Waht else should I  check?Walls are on in visibility graphics of floor plan. I checked Phasing settings, everything seems fine on that one as well. PLease help, I am a newbie.

 thanks

Sudanhafif



Attached Images


This user is offline



Thu, May 13, 2010 at 7:49:29 AM | walls not visible on floor plan

#2

Kardiff


active

Joined: Fri, Nov 7, 2008
135 Posts
5 Stars: 3 Votes


Check your wall top and base are within where you want them,Also go into your visibility/graphics override and make sure walls are ticked onand press the lightbulb on the bottom of your screen to make sure it isn't hidden in the view


-----------------------------------

- Just trying to help out while I wait in the office for my renders to complete

www.danrossiter.co.uk

This user is offline

View Website

Thu, May 13, 2010 at 12:20:15 PM | walls not visible on floor plan

#3

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


if you are getting pop-up that says they are not visible, the check your base offset in the properties dialog.

-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline
