Forums >> Revit Building >> Technical Support >> 3D Roof Tiles for temple

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, May 2, 2010 at 2:59:22 AM | 3D Roof Tiles for temple

#1

Bansri


active

Joined: Sun, Nov 2, 2008
39 Posts
No Rating


Hello everyone..

I need to model the roof tiles as shown in this image...

i tried many ways discussed in the forum here before. Ex. making curtain glazing / beam system / ....

but nothing seems to work. I want to make ridge tiles as well as roof tiles that overlap each other..



can anyone help me?





Attached Images


This user is offline



Sun, May 2, 2010 at 5:39:02 AM | 3D Roof Tiles for temple

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

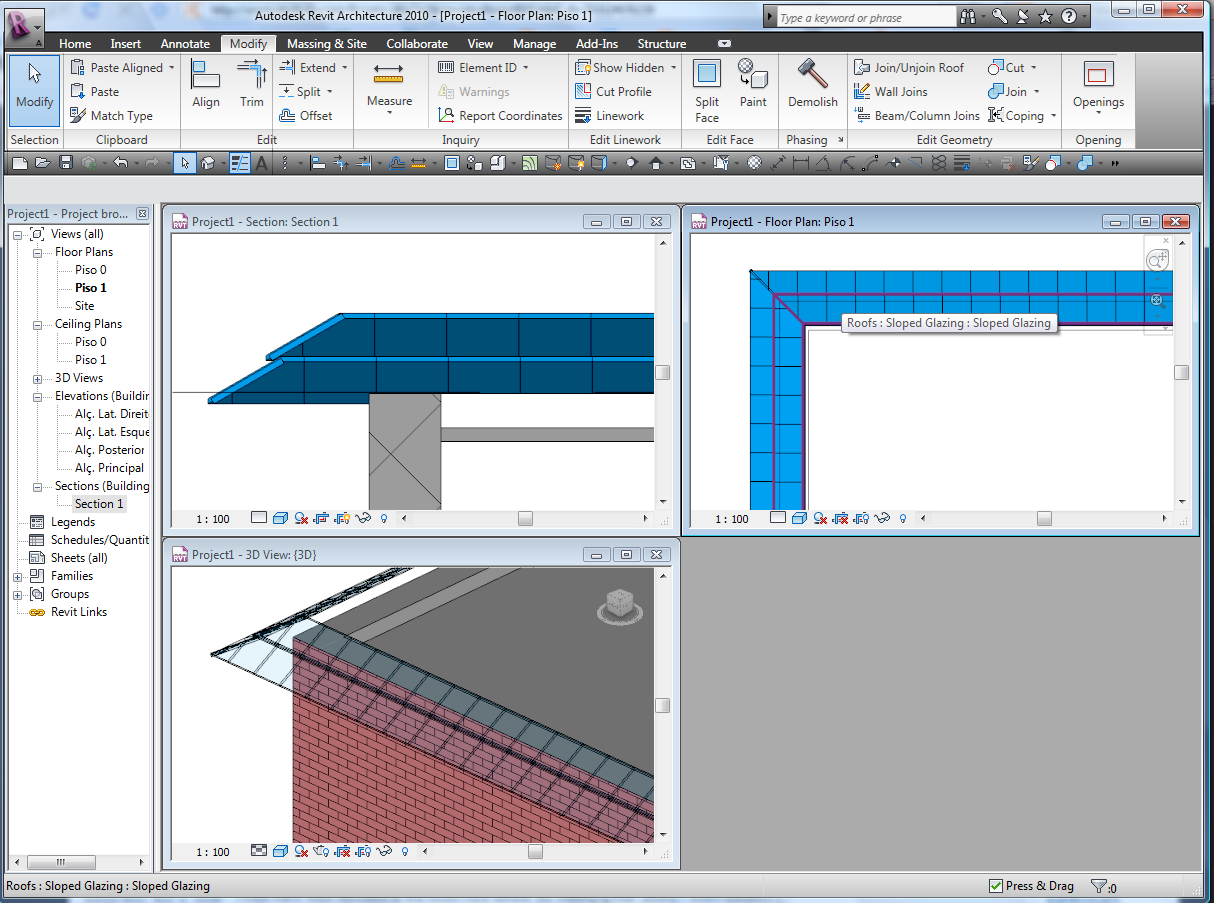

Look this family I post, you can create another family like you want to use in the ridge tiles.... to create the main roof, i think i use (if you don't want to use a simple texture) the "Slope Glazing Sytem".. Several slope glazing that overlap each other like in the image...





Attached Images


Attached Files

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, May 2, 2010 at 10:44:09 AM | 3D Roof Tiles for temple

#3

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes


Also,check this thread, could be useful for you.....

http://www.revitcity.com/forums.php?action=viewthread&thread_id=19197


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Sun, May 2, 2010 at 10:48:22 AM | 3D Roof Tiles for temple

#4

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes


BTW- you can adapt (modify) these families to get the type of roof you use in your country (India).....

-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Mon, May 3, 2010 at 5:29:38 AM | 3D Roof Tiles for temple

#5

Bansri


active

Joined: Sun, Nov 2, 2008
39 Posts
No Rating


thanks everyone for your help.

 i was trying to use the sloped glazing for my roof tiles. i can place them correctly in the middle, but when they meet corners where they need to be cut to fit to a different shape; revit does not accept the family and replaces it with the glazed panel.

How do you make the family that cuts the corners in the sloped glazing...?






This user is offline



Mon, May 3, 2010 at 7:42:18 AM | 3D Roof Tiles for temple

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 391 Votes


Maybe you should consider using a roof instead of sloped glazing.

This user is offline



Mon, May 3, 2010 at 7:49:52 AM | 3D Roof Tiles for temple

#7

Bansri


active

Joined: Sun, Nov 2, 2008
39 Posts
No Rating


but i need the tile to be modeled in 3d...

so how can i do it with roof only?




This user is offline



Mon, May 3, 2010 at 8:20:24 AM | 3D Roof Tiles for temple

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 391 Votes


I would probably do a model in place family using extrusions and voids.  One family for each roof side similar to what I did here for log walls: http://www.revitcity.com/forums.php?action=viewthread&thread_id=6540&start=15  You would use a void that cuts the mitered corners.

This user is offline



Sat, May 15, 2010 at 2:47:38 AM | 3D Roof Tiles for temple

#9

Bansri


active

Joined: Sun, Nov 2, 2008
39 Posts
No Rating


hi...

Typhoon: I saw your gallery. Wow, that was really a nice work with roof tiles.

  just can't seem to do it right. Can you please help?

Did u use only the texture: how did you define the ridge tile and the roof tiles seperately in the texture?

Did you model these components? what about the tiles that cut their profiles near the ridge.. how do we model them??



i am trying this out for a long time and it just doesn;t work for me... can you share some rvt file for reference?

or can you please share the process?




This user is offline



Sat, May 15, 2010 at 6:55:41 AM | 3D Roof Tiles for temple

#10

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Sometimes I use Sloped glazing system but to not increase the file size i use only a texture to the main roof then i apply the ridge and so one with this families i just attached.. also check this site for textures: http://www.cgtextures.com/





-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
