Forums >> Revit Building >> Technical Support >> Cut parts from roof

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Apr 27, 2010 at 1:00:41 PM | Cut parts from roof

#1

bengtm


active

Joined: Mon, Mar 8, 2010
37 Posts
3 Stars: 2 Votes

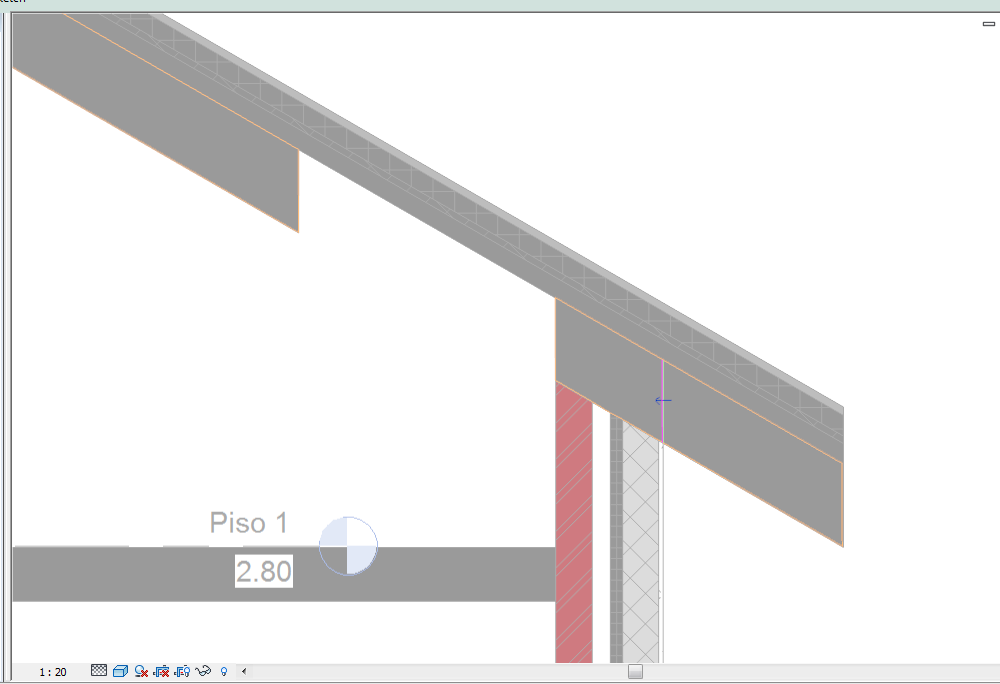

Please check attachments.

 I would like to know if there's a way to cut special parts from the roof?

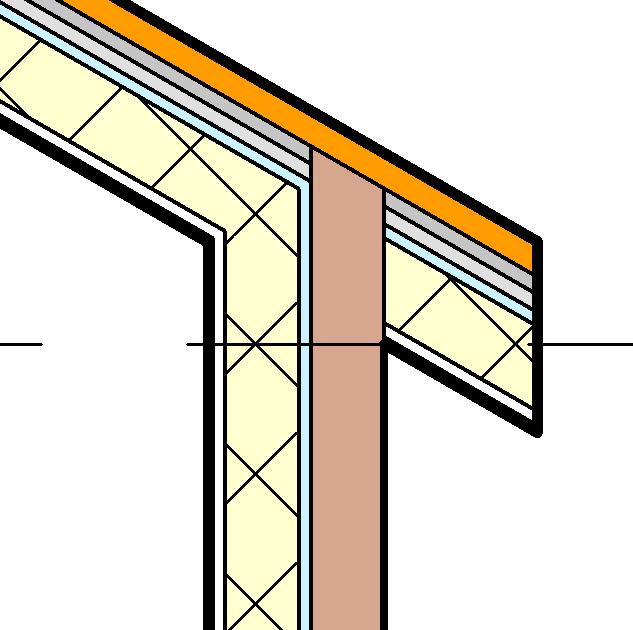

 If you see the pic with two pics in it, I'd like to cut that big part of Isolation material away.

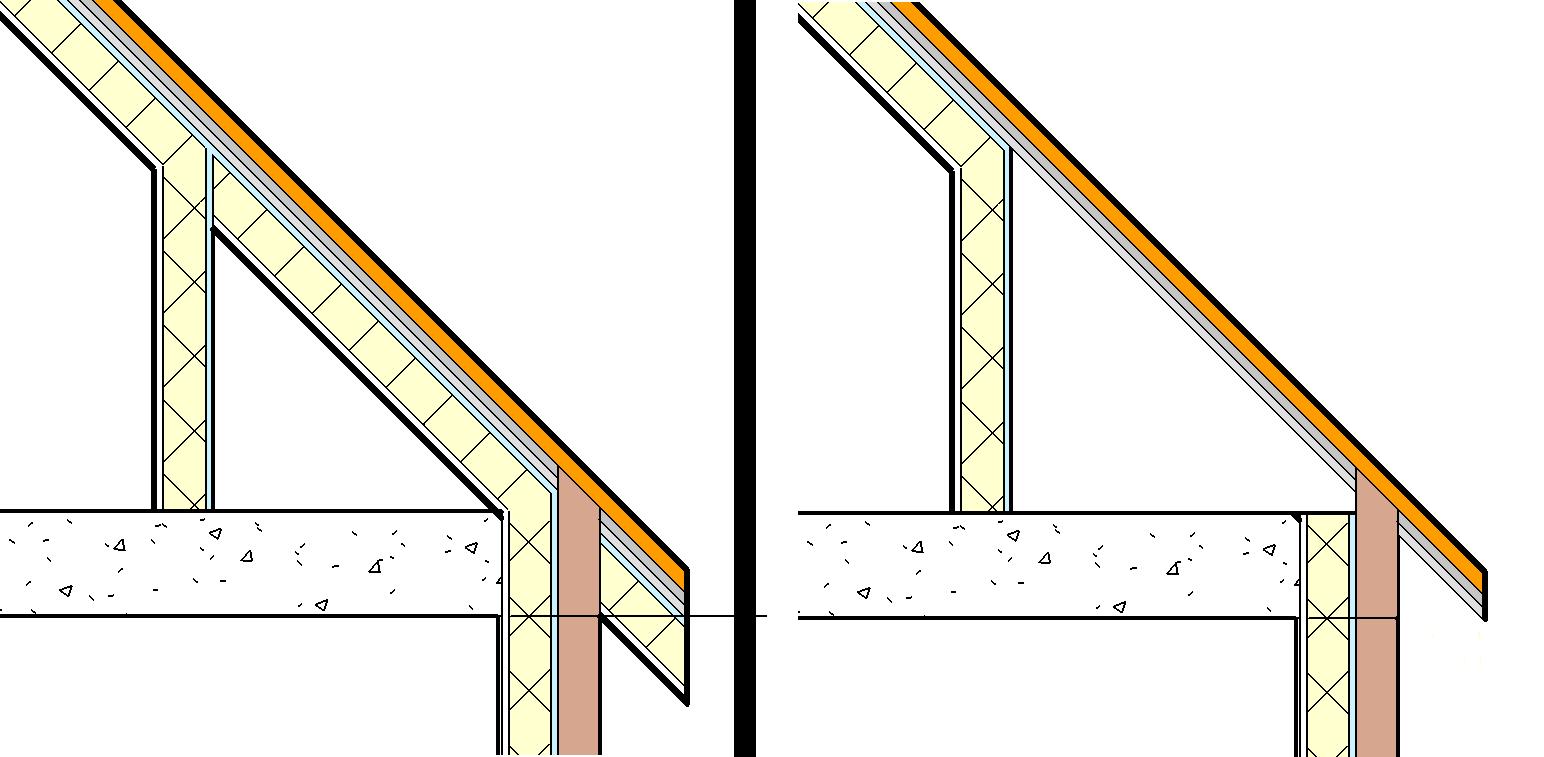

 If you watch the second pic, I'd just like to remove the Isolation materials on the outside.

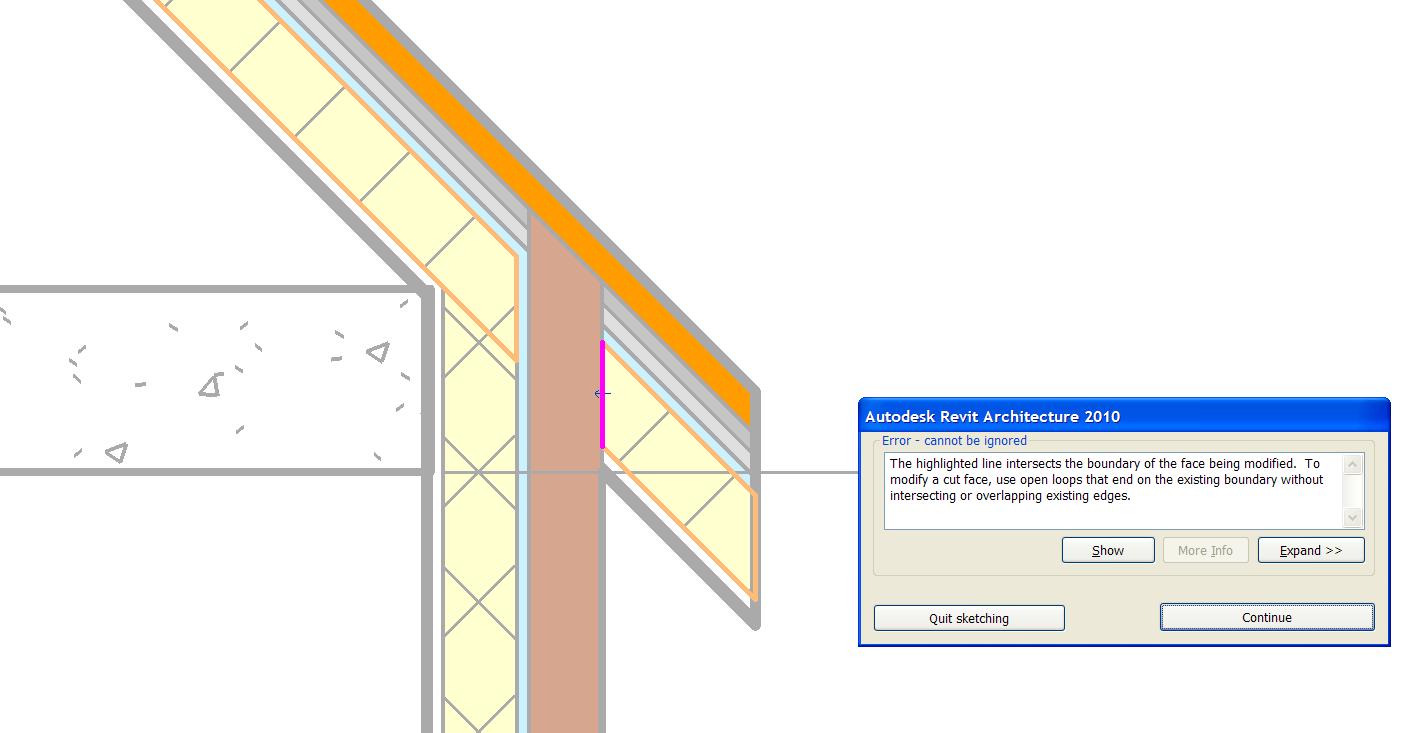

 I've been trying a bit with the "Cut Profile" function, but it doesn't want to cut straight?



Any tips? kindest regards.



Attached Images


This user is offline



Tue, Apr 27, 2010 at 1:20:17 PM | Cut parts from roof

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

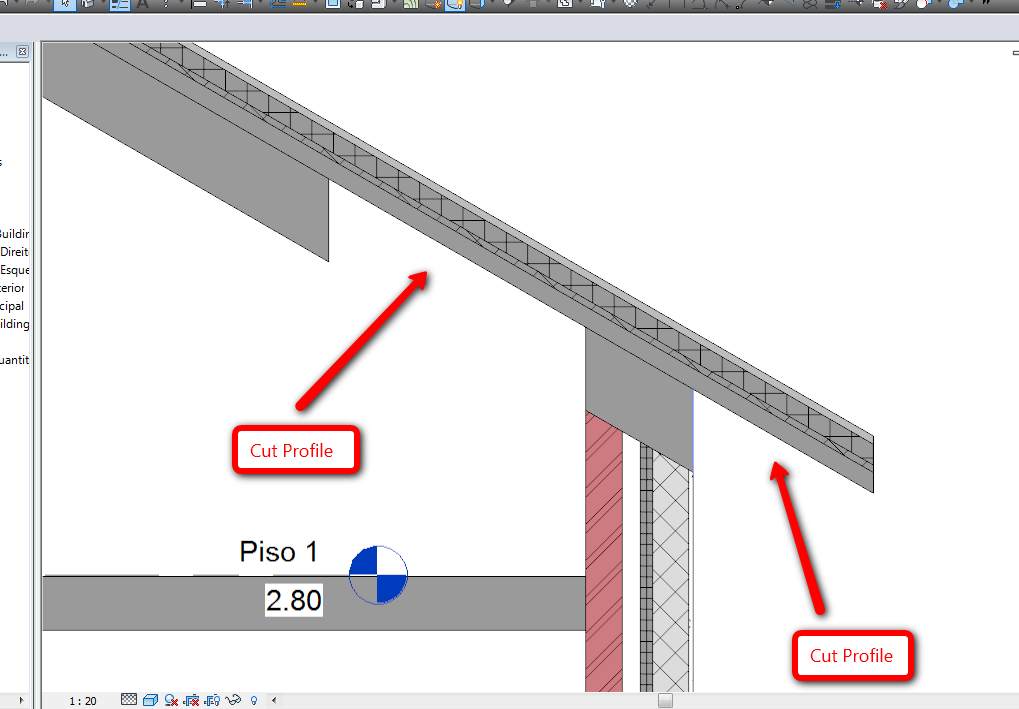

Use the "Cut Profile"...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Apr 27, 2010 at 1:39:04 PM | Cut parts from roof

#3

bengtm


active

Joined: Mon, Mar 8, 2010
37 Posts
3 Stars: 2 Votes

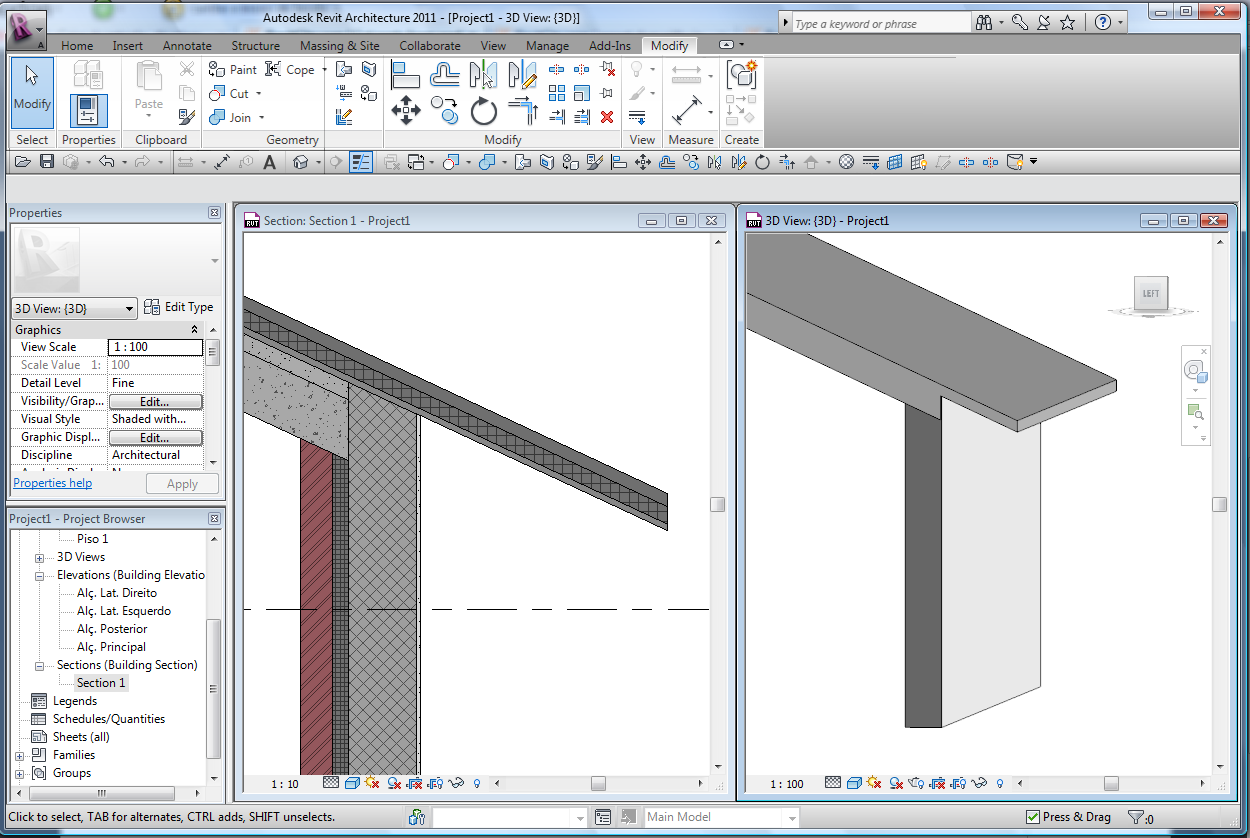

Please see my new attached pic. I guess it is becoming a problem because I have my wall going up through some layers, + the fact that I want to delete from the boundary.

 I don't see why it wouldn't want to cut from the boundary though, what do you think? :s



Attached Images


This user is offline



Tue, Apr 27, 2010 at 2:03:20 PM | Cut parts from roof

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

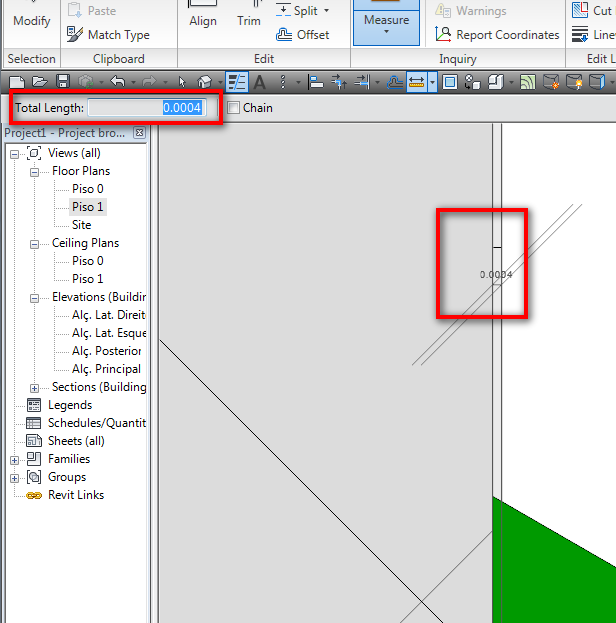

That's because you are drawing the "Cut Profile" on the orange boundary, create the "cut" a few millimeters of the orange line.





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Apr 27, 2010 at 2:16:24 PM | Cut parts from roof

#5

bengtm


active

Joined: Mon, Mar 8, 2010
37 Posts
3 Stars: 2 Votes


I guess i'l do it that way. Thanks alot Typhoon, always as helpful! SmileSmileSmile

This user is offline



Tue, Apr 27, 2010 at 4:28:24 PM | Cut parts from roof

#6

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


just to double check in case,  "Cut Profile" is view specific. it does not actually change the model.

-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Wed, Apr 28, 2010 at 10:12:36 AM | Cut parts from roof

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

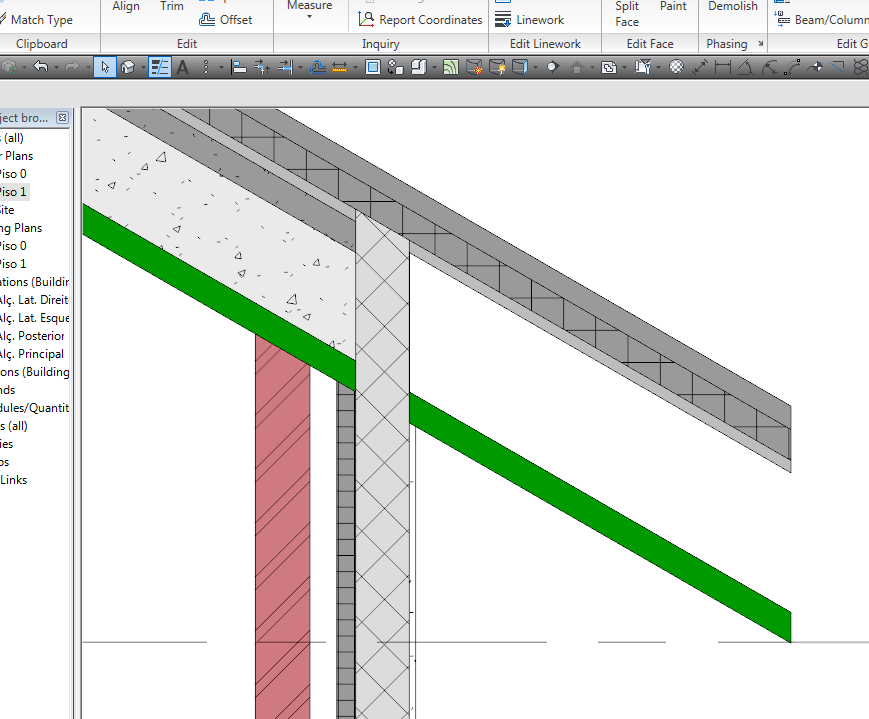

Yep, Coreed is right, if you need to really cut that portion of roof to show in 3D, rendering.... Use an "In-Place" in the category "Roof" and chose "Void Extrusion"...





Edited on: Wed, Apr 28, 2010 at 5:13:07 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Apr 29, 2010 at 2:35:41 PM | Cut parts from roof

#8

bengtm


active

Joined: Mon, Mar 8, 2010
37 Posts
3 Stars: 2 Votes


To do this I should:

 1. Component -->  Model In-place

2. Pick "Roofs" -> name it whatever

3. Set work plane on the edge of the roof

4. Select Void Extrusion

5. Draw the extrusion i want, then pull it as far as i want.

6. BAM it should be done.



But when i press Finish the error message "Some Void Forms of this family do not cut anything and will be deleted. To make a Void Form cut something else use the Cut Geometry tool."



When I try to use the Cut Geometry tool it doesn't want to even touch the roof? wtf.


This user is offline



Thu, Apr 29, 2010 at 2:43:03 PM | Cut parts from roof

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes


Are you sure the "Void" you create was in "Roof" Category???




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
