Forums >> Revit Building >> Technical Support >> Column to diagonal beam/brace connection problem

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Apr 23, 2010 at 5:27:03 AM | Column to diagonal beam/brace connection problem

#1

rdelgadillo


active

Joined: Tue, Sep 29, 2009
1 Posts
No Rating

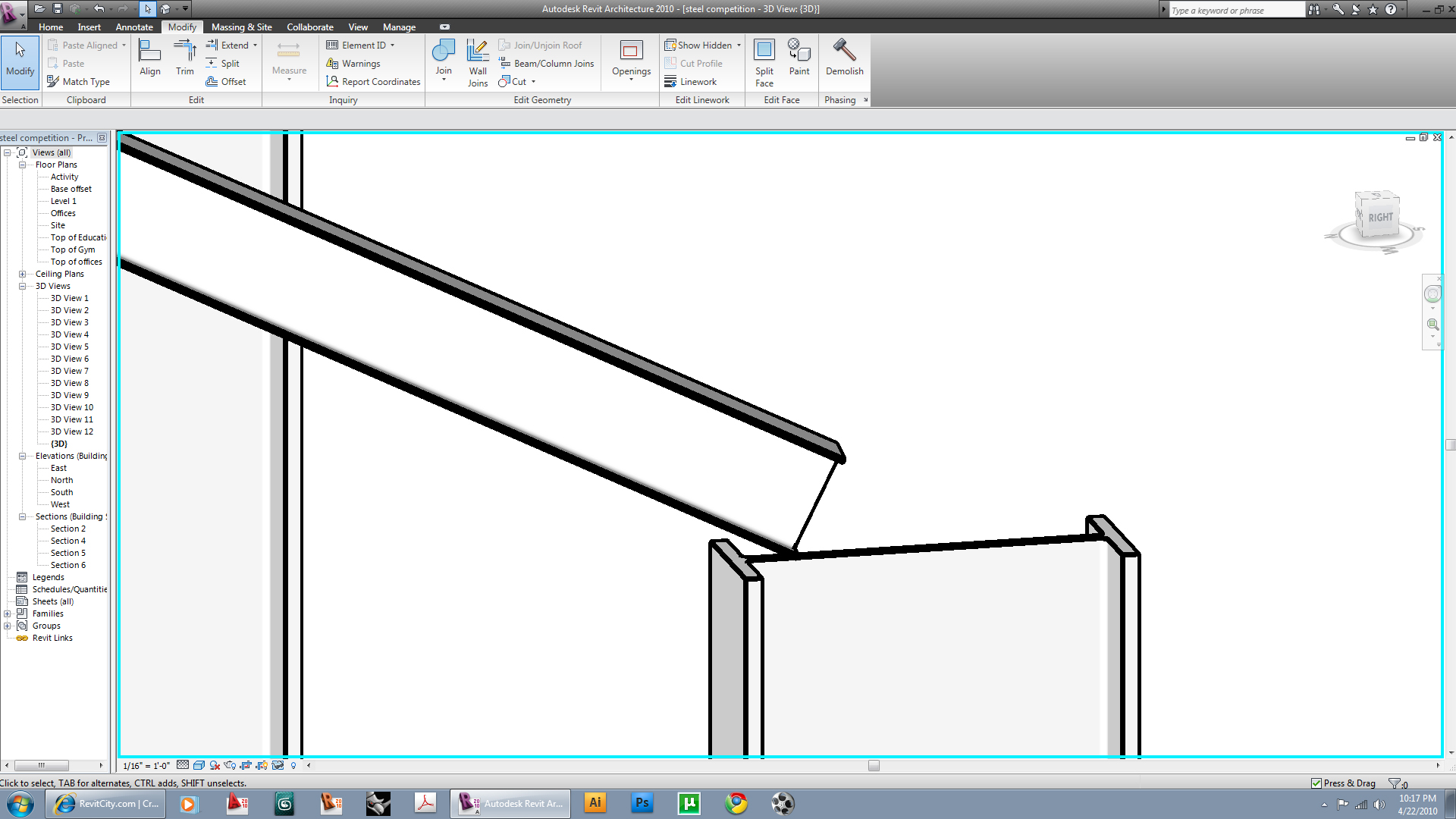

Hi Everyone,I'm having trouble joining diagonal beams to a column. I am using Revit Architecture 2010 and I just can't find a way to join them (see attached image). I don't need it for sections or details, it's more for renderings/3d model.Thanks in advance

Attached Images


This user is offline



Fri, Apr 23, 2010 at 9:37:23 AM | Column to diagonal beam/brace connection problem

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

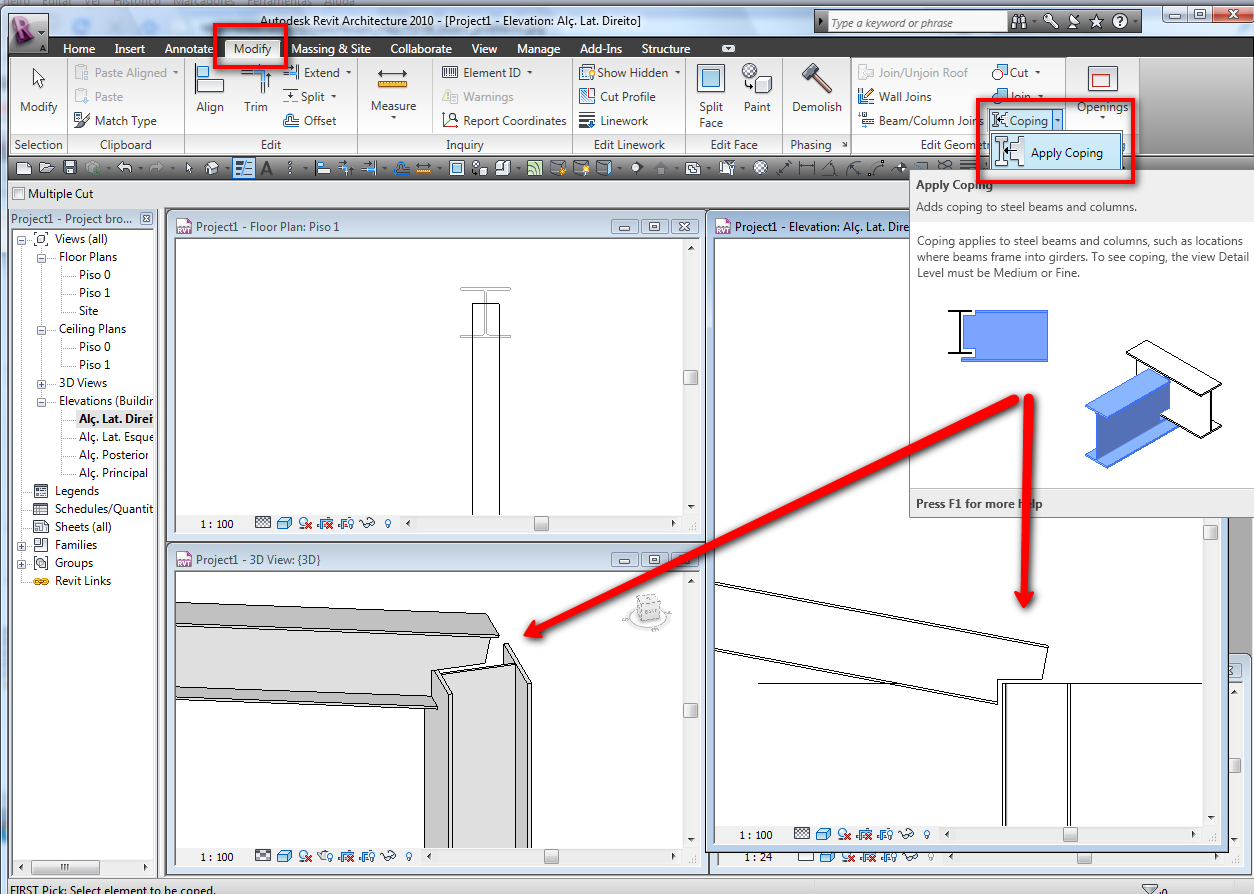

Did you "play" with the "Coping" tool?





Edited on: Fri, Apr 23, 2010 at 4:38:04 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Apr 23, 2010 at 9:40:24 AM | Column to diagonal beam/brace connection problem

#3

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

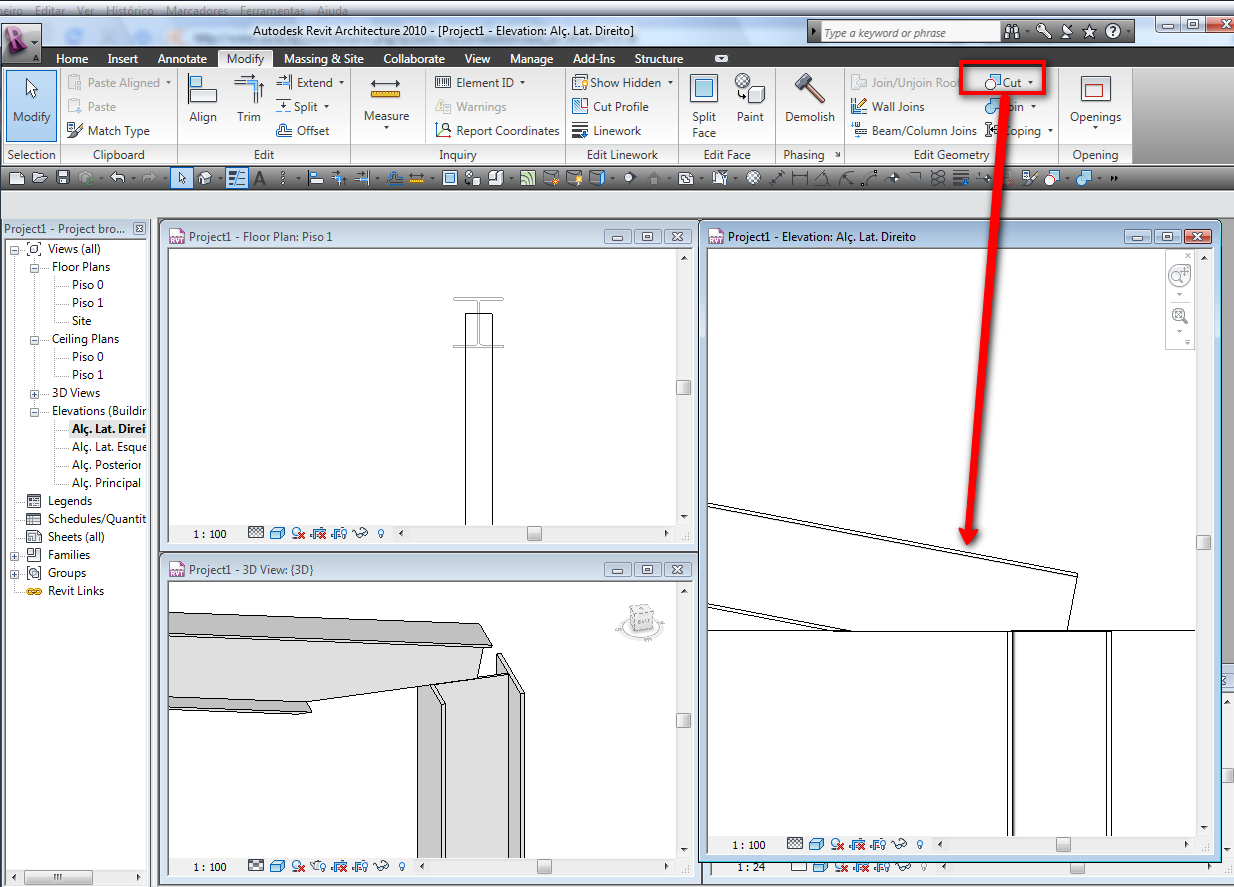

Or with the "CUT" tool??





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
