Wed, Apr 21, 2010 at 9:21:31 AM | roof slopes with skylight openings and notch

#1

westminster30


active

Joined: Tue, Feb 16, 2010
17 Posts
No Rating


Hi revitalistas!

 I've been checking the forum for a possible answer.  I have a pent-up roof and it looks fine when the roof is rectangular.  The roof, however, has skylight openings and a notch.  I go to edit boudaries (or footprint) and weird roof slopes appear.

 This is what I did --

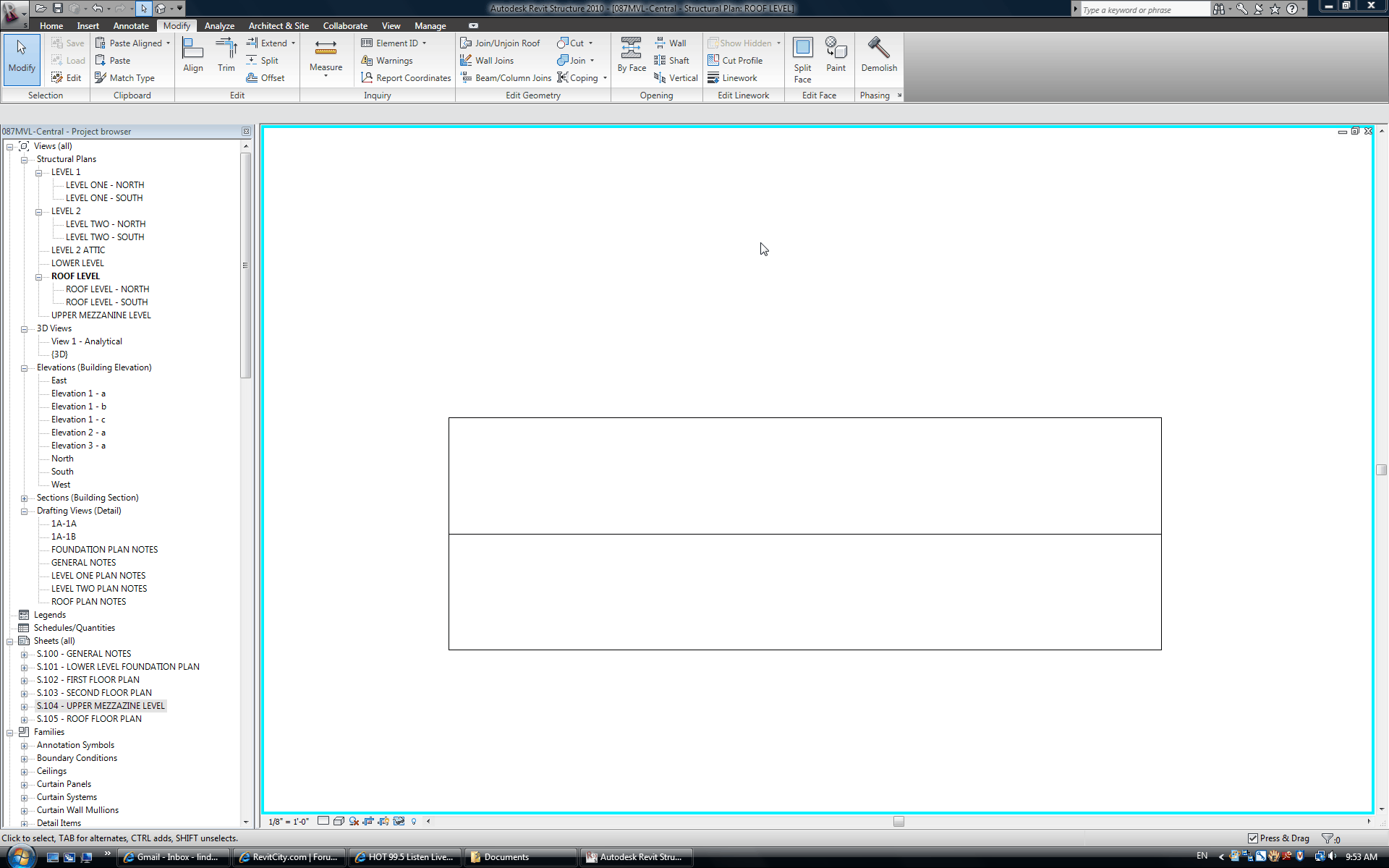

--I drew my rectangular roof (1-1/2" metal deck)

--after giving it an elevation height, I drew in my split line and added elevation points to both ends.

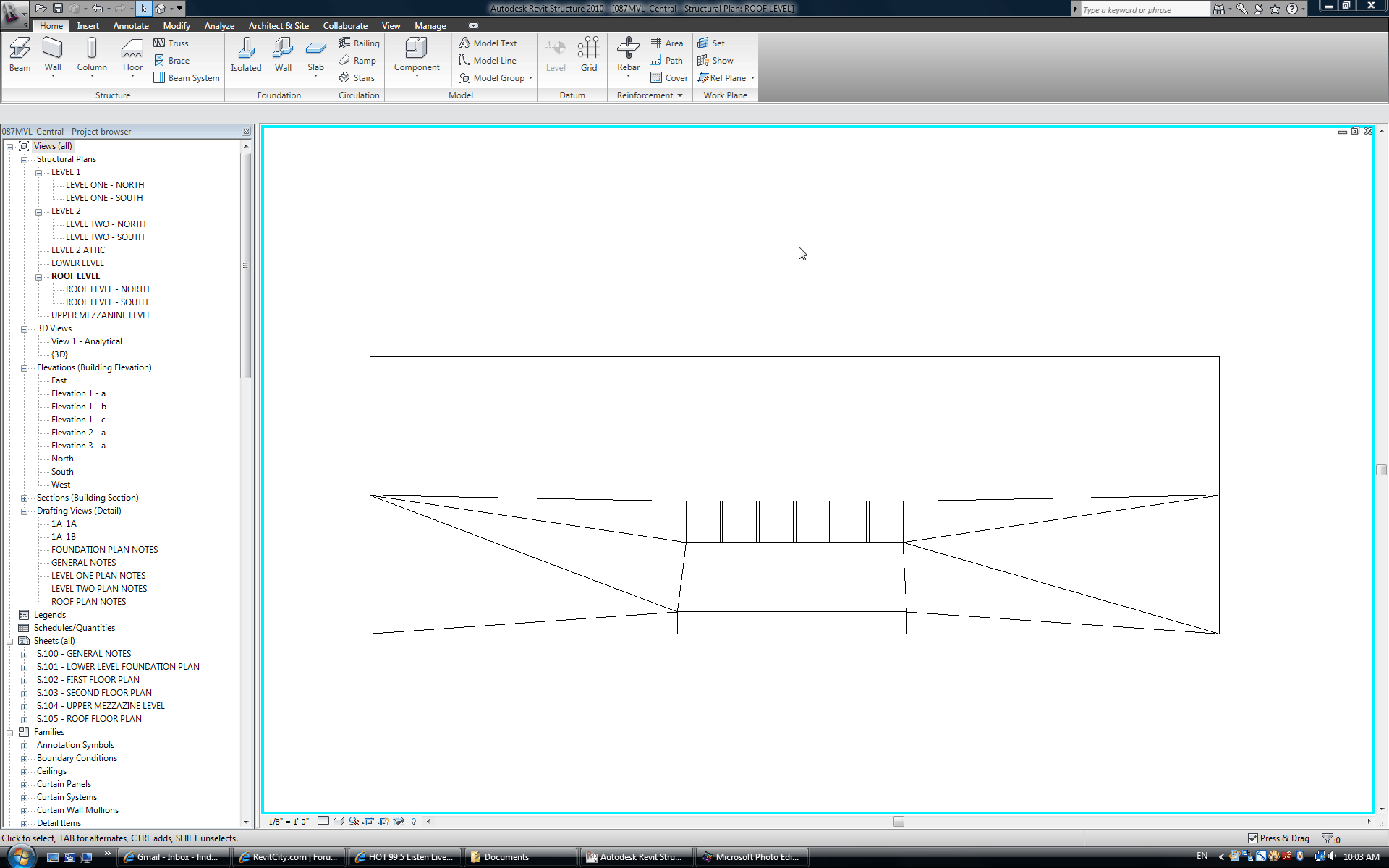

--I go to edit boundary, I draw in the openings.  Weird roof slope appears.  I add in elevation points the skylight openings and to the inside of the notch.

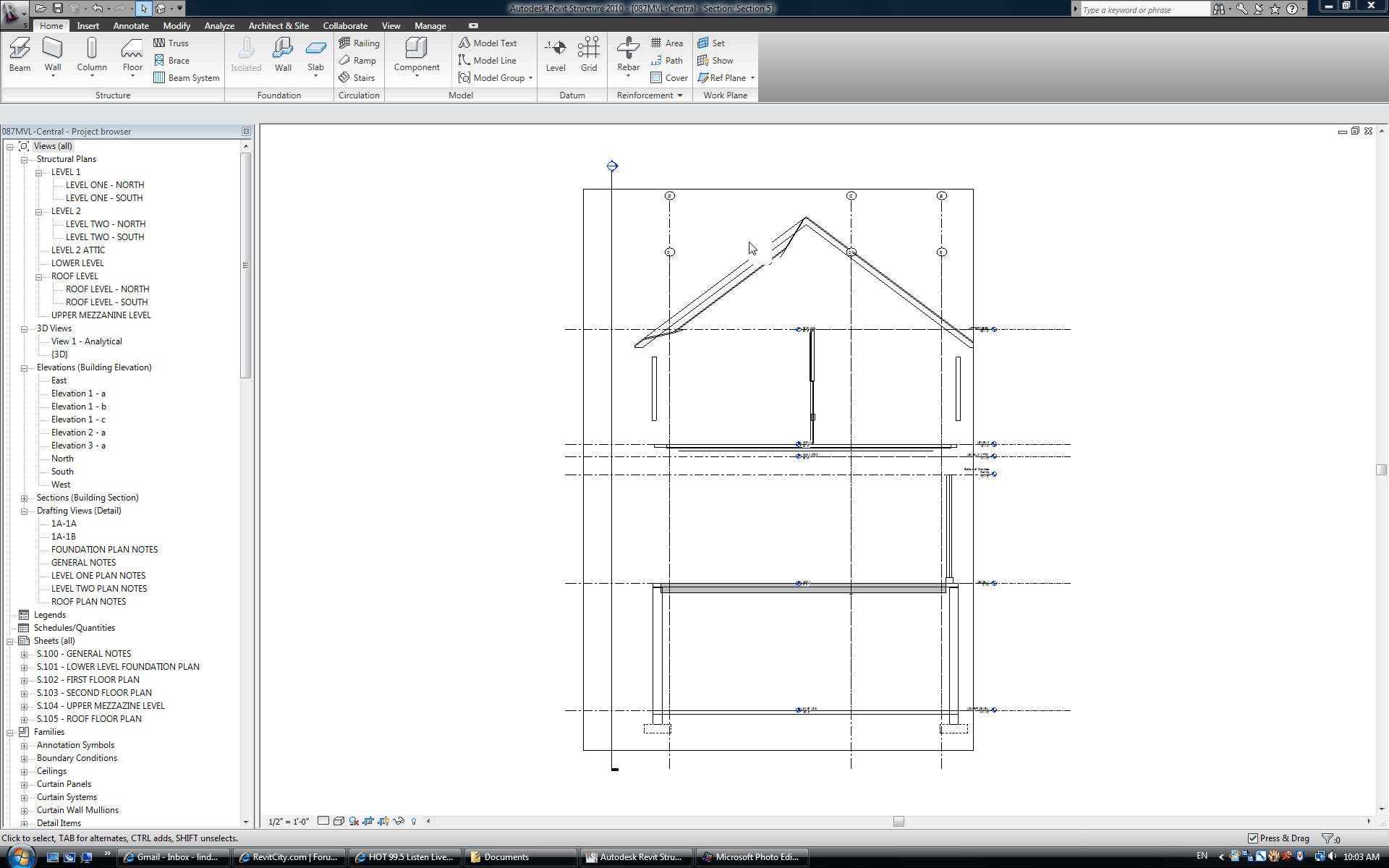

Am I doing this right?  I don't think I should be seeing those lines.  plus, in the section view, it doesn't look right.

 Also , and I'm just wondering -- I'm working with just the structure aspect of the revit model.  What difference does it make if I draw a floor as the roof or draw the roof under Architect & Site.  I've always drawn it as a floor (mainly because that's what I've been instructed to do).

 If anyone could help, that would be great.

 Thanks,

Westminster30





Attached Images

75583_ScreenHunter01_Apr._21_09.53.gif75583_ScreenHunter02_Apr._21_09.54.gif75583_ScreenHunter03_Apr._21_10.03.gif75583_ScreenHunter04_Apr._21_10.03.gif

This user is offline



Wed, Apr 21, 2010 at 9:31:12 AM | roof slopes with skylight openings and notch

#2

westminster30


active

Joined: Tue, Feb 16, 2010
17 Posts
No Rating

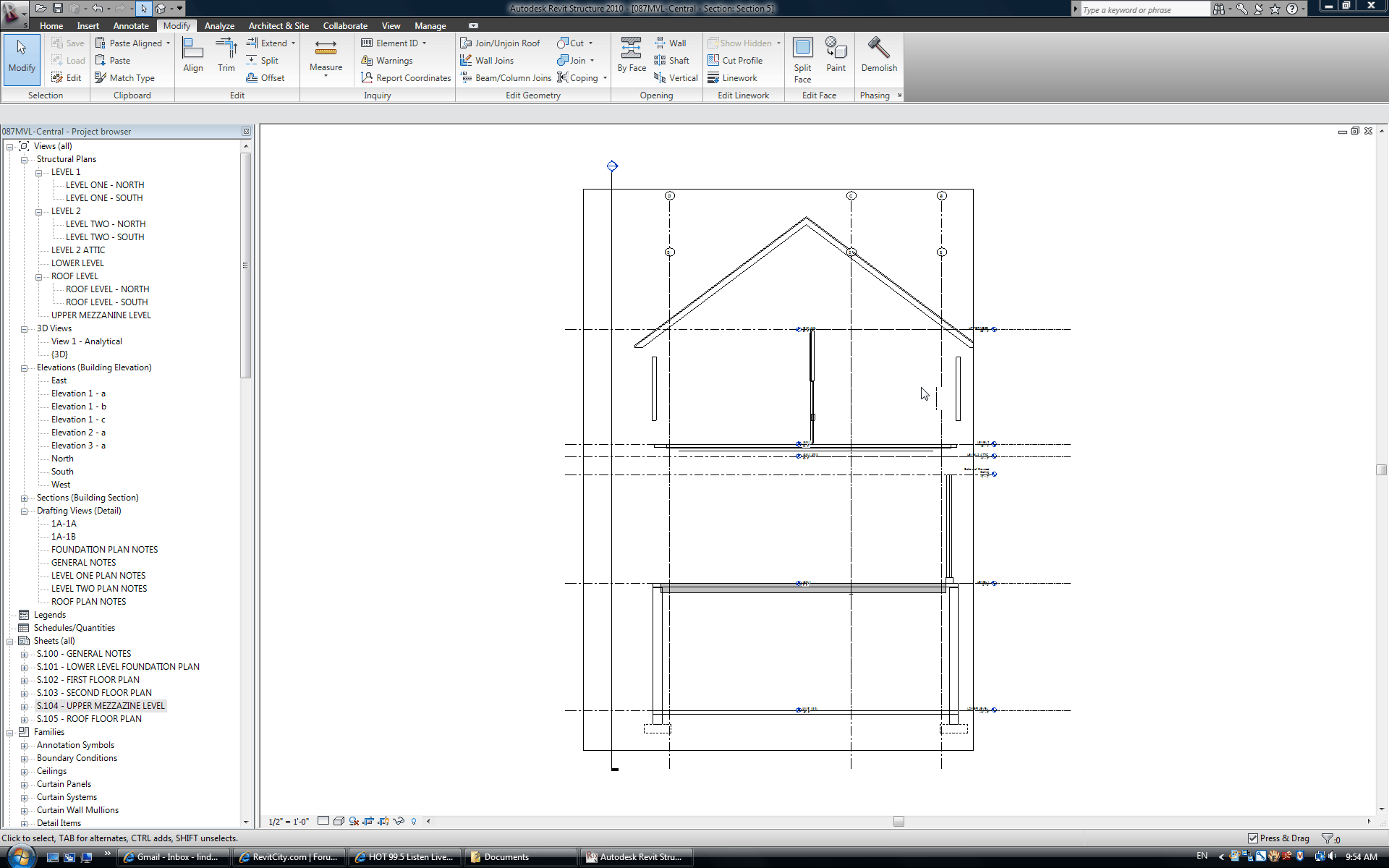

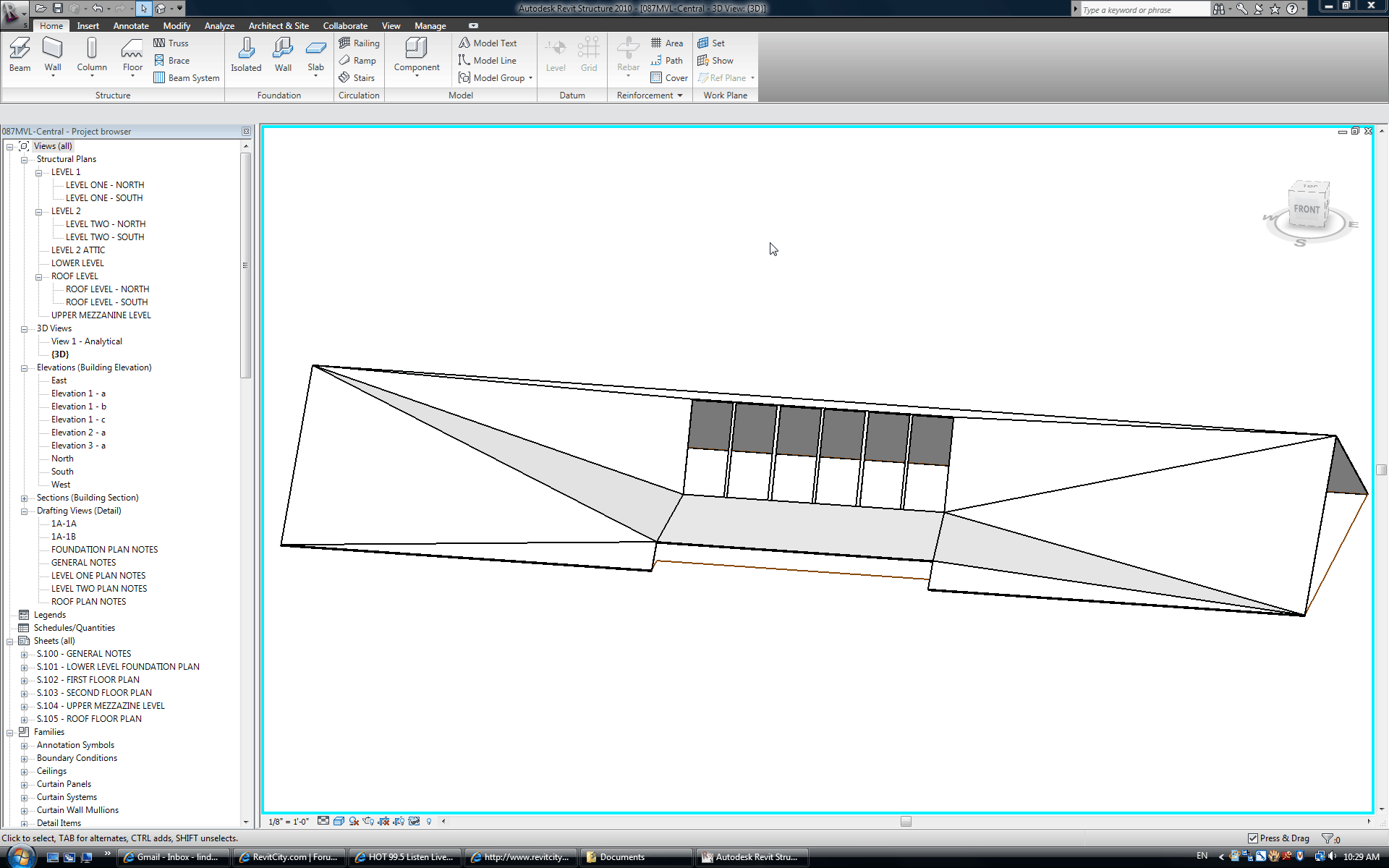

I know what's wrong with it, but I'm not sure on how to fix it.

The openings and notch isn't going along the slope.



Attached Images


This user is offline



Wed, Apr 21, 2010 at 9:37:30 AM | roof slopes with skylight openings and notch

#3

GRINHEART


active
GRINHEART Avatar

Joined: Fri, Jun 12, 2009
157 Posts
4 Stars: 5 Votes


Why don't use the "opening by face" tool? go to modeling>opening by face... you have to use the roof tool for it... In my opinion, if you're modeling a roof - use a roof tool not a floor tool.


-----------------------------------

 "If you tell the truth, you don't have to remember anything"

This user is offline

View Website

Wed, Apr 21, 2010 at 9:45:31 AM | roof slopes with skylight openings and notch

#4

westminster30


active

Joined: Tue, Feb 16, 2010
17 Posts
No Rating


I will try that.

 Thanks!

westminster


This user is offline



Wed, Apr 21, 2010 at 9:46:21 AM | roof slopes with skylight openings and notch

#5

GRINHEART


active
GRINHEART Avatar

Joined: Fri, Jun 12, 2009
157 Posts
4 Stars: 5 Votes


correction.... you can use the opening by face tool in any planar surface.


-----------------------------------

 "If you tell the truth, you don't have to remember anything"

This user is offline

View Website

Wed, Apr 21, 2010 at 10:26:18 AM | roof slopes with skylight openings and notch

#6

westminster30


active

Joined: Tue, Feb 16, 2010
17 Posts
No Rating


thanks!

It works great for the skylight openings.  But what about the notch?  If I edit the footprint, it's as if I'm editing on a flat surface.

W


This user is offline



Wed, Apr 21, 2010 at 10:42:09 AM | roof slopes with skylight openings and notch

#7

GRINHEART


active
GRINHEART Avatar

Joined: Fri, Jun 12, 2009
157 Posts
4 Stars: 5 Votes


just create an in-place generic void form extrusion... you can set the of your extrusion there... then use cut geometry to show the notch.

-----------------------------------

 "If you tell the truth, you don't have to remember anything"

This user is offline

View Website

Wed, Apr 21, 2010 at 10:44:53 AM | roof slopes with skylight openings and notch

#8

GRINHEART


active
GRINHEART Avatar

Joined: Fri, Jun 12, 2009
157 Posts
4 Stars: 5 Votes


you can set* your extusion there...

-----------------------------------

 "If you tell the truth, you don't have to remember anything"

This user is offline

View Website

Wed, Apr 21, 2010 at 10:46:48 AM | roof slopes with skylight openings and notch

#9

GRINHEART


active
GRINHEART Avatar

Joined: Fri, Jun 12, 2009
157 Posts
4 Stars: 5 Votes


argh!!! i meant to say... you can set your extrusion DEPTH there.

-----------------------------------

 "If you tell the truth, you don't have to remember anything"

This user is offline

View Website

Wed, Apr 21, 2010 at 11:00:05 AM | roof slopes with skylight openings and notch

#10

westminster30


active

Joined: Tue, Feb 16, 2010
17 Posts
No Rating


lol!  I will try that.  thanks, grinheart!


This user is offline



Wed, Apr 21, 2010 at 12:49:19 PM | roof slopes with skylight openings and notch

#11

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

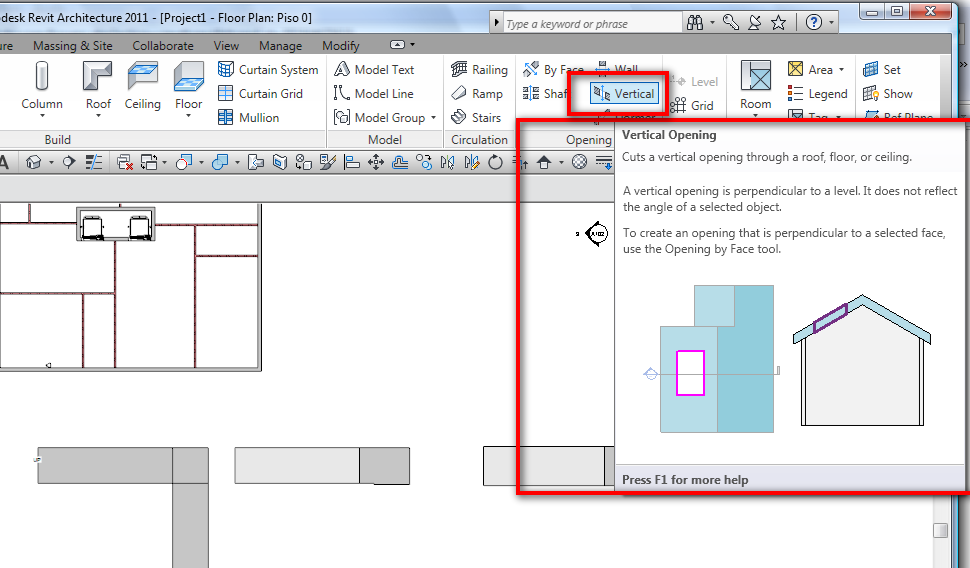

One Question: Did you try with the "Vertical Opening" tool in that Slab/roof???





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Apr 21, 2010 at 1:09:29 PM | roof slopes with skylight openings and notch

#12

westminster30


active

Joined: Tue, Feb 16, 2010
17 Posts
No Rating


No, I did not try that -- but good to know!  Thanks!

 I would think there's an easier way to modifying the roof edge...

 Thanks, guys!


This user is offline
