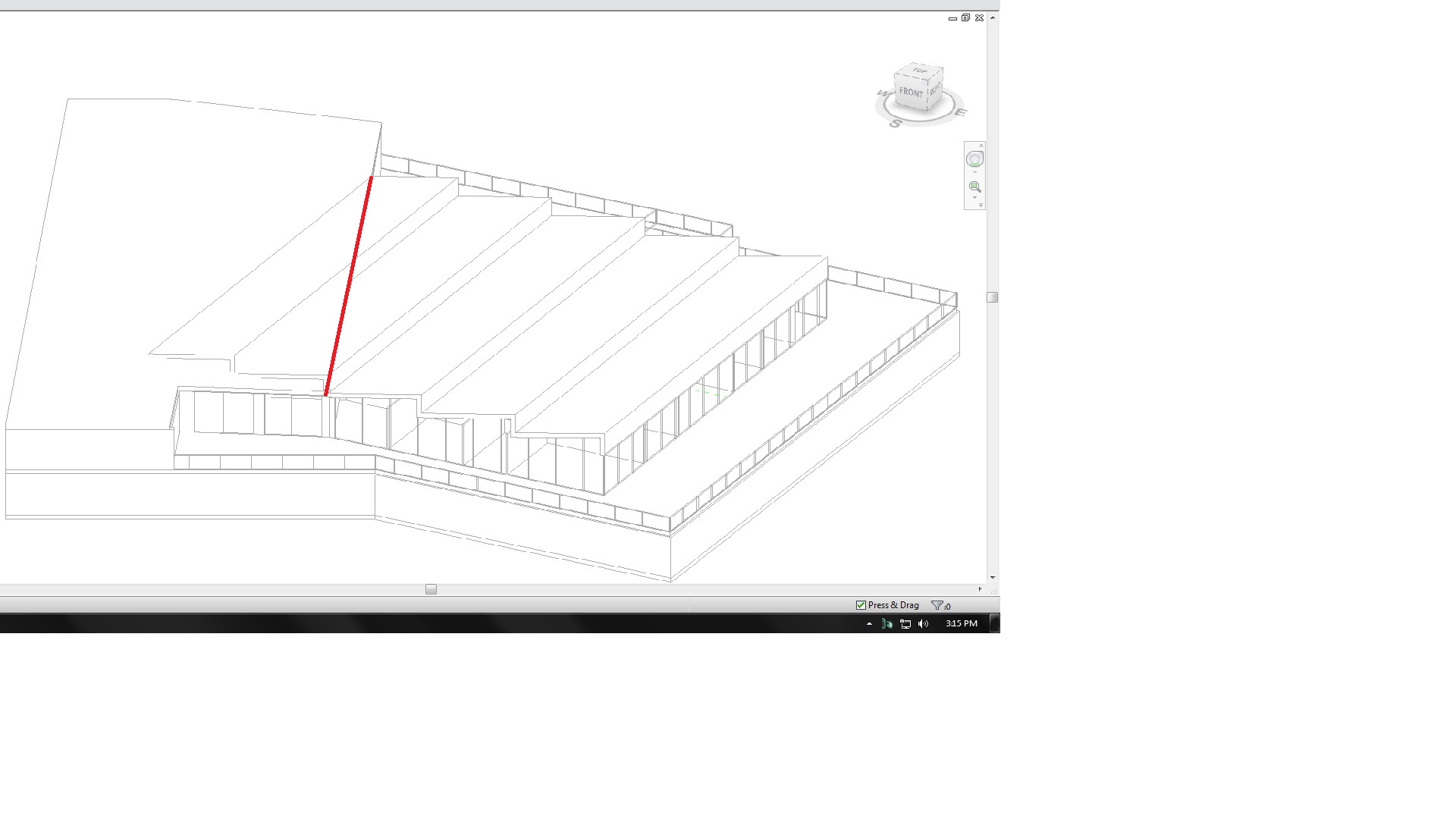

Hey, Just a quick question. I am modeling up a building with a saw tooth roof that meets with a flat roof half way along the building but i need to trim the saw tooth roof along the red line, and remove everything that is on the left. The flat roof section is a floor slab that has been coppied up. Is this possible? OR do i need to re-draw this as a roof to be-able to do this? Using Revit MEP 2010 Thanks.
|
This user is offline |
|
 | |
|
|
active
Joined: Fri, Nov 7, 2008
135 Posts
 |
I would re-draw it but if you just change the profile to match what you want it should be easy go to your site plan and draw your profile so it buts up to your roof, and then if it delets any of your elevation points redraw them
-----------------------------------
- Just trying to help out while I wait in the office for my renders to complete www.danrossiter.co.uk |
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
Try to use the "Vertical Opening" in the "Modify>Openings"
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Wed, Mar 4, 2009
6 Posts
No Rating |

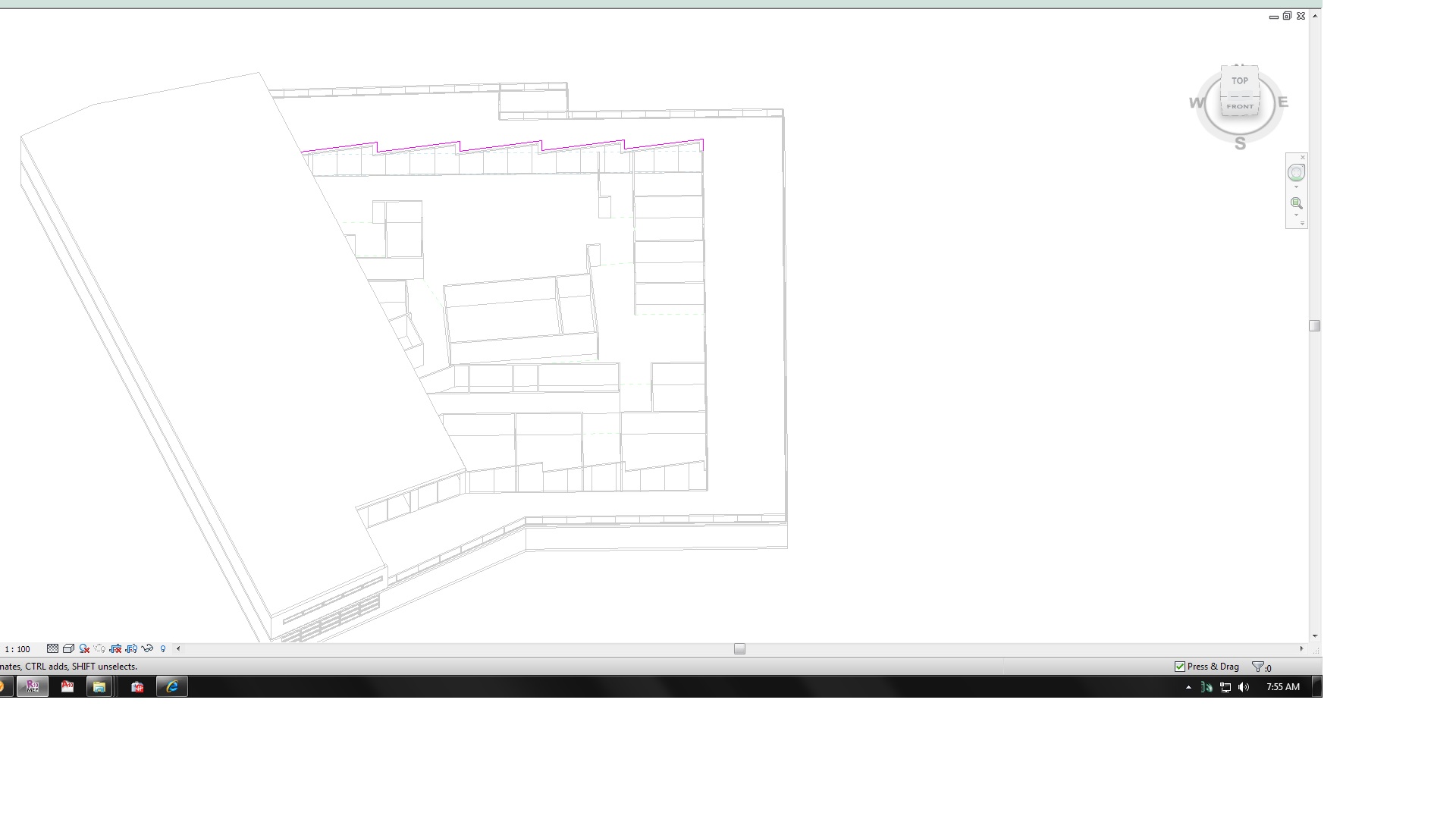

When i try to use the vertical opening i just get the error "The roof couldn't be cut." as soon as i click the button, before any user input. Is there a way to you can draw a profile on both sides? as i have drawn the roof profile in elevation (see pic) but i need it to come across on an angle, as it dosnt butt up square with the other roof.
|
This user is offline |
|
|
|
active
Joined: Wed, Mar 4, 2009
6 Posts
No Rating |
When i try to use the vertical opening i just get the error "The roof couldn't be cut." as soon as i click the button, before any user input. Is there a way to you can draw a profile on both sides? as i have drawn the roof profile in elevation (see pic) but i need it to come across on an angle, as it dosnt butt up square with the other roof.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|

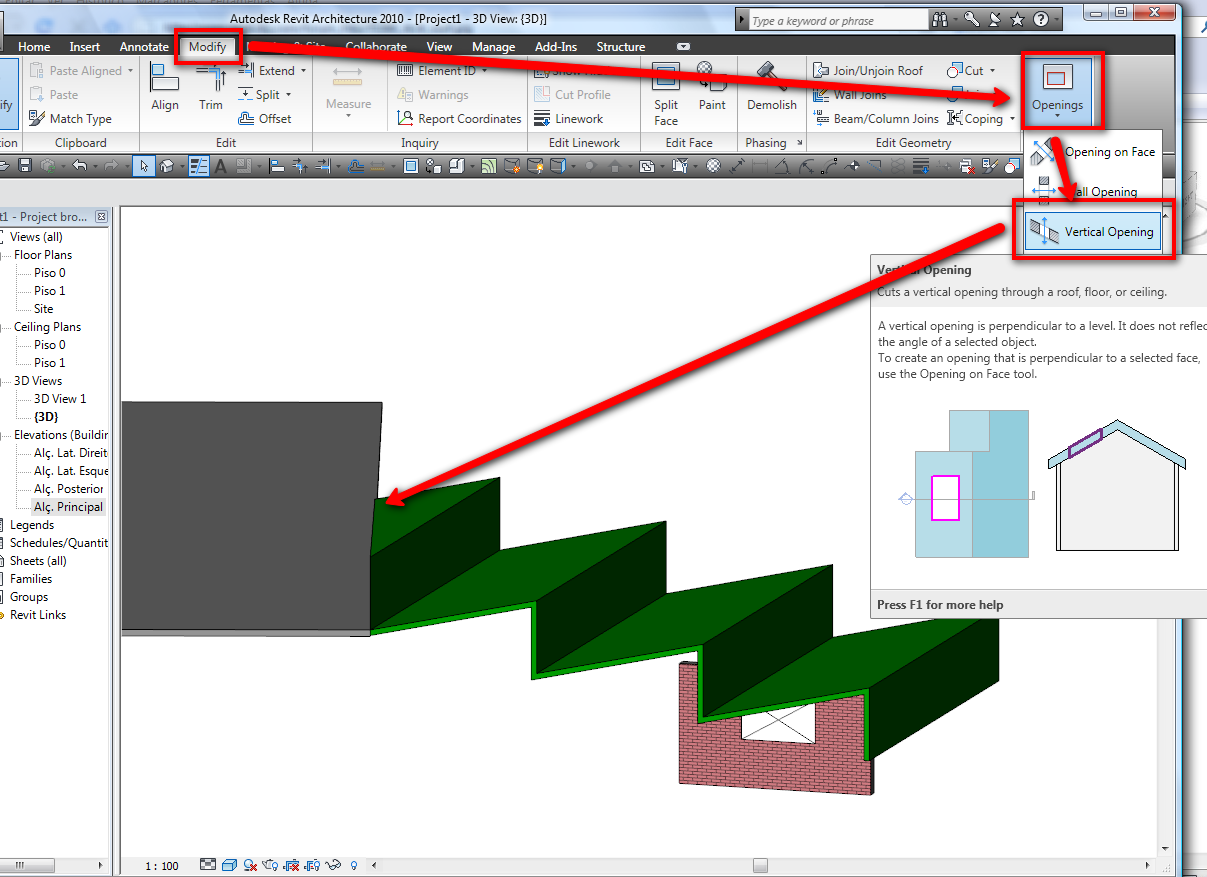

Look at my image above, i go directly to "Modify>Openings>Vertical Openings"... Can you put here only those two Roofs, so we can take a look?
Edited on: Tue, Apr 20, 2010 at 6:30:54 AM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Thu, Apr 28, 2011
1 Posts
No Rating |
Hi I really need to know how you created that sawtooth roof, ive been trying to work this out for hours...
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Roof > Extrusion
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
