i'm having trouble sloping my roofs.  i'm using revit structure 2010.

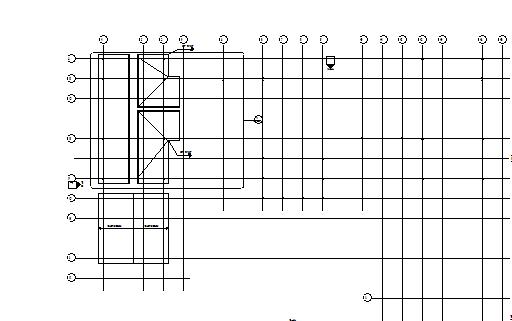

i created a floor and added in elevation points and a split line.  on plan, it cuts the floor into two parts, although they are part of one entity.  in section and 3d view, it looks correct, but it doesn't look right on plan.

i don't know how to do a screenshot in pdf format, so i exported into an image, and did a screencap in word.  can anyone help me how to do that, so i can better illustrate my problem?

 i've looked through other threads and none have seemed to help me.

 Bah!!!

Attached Images

Attached Files 74814_help.doc

This user is offline

lalaindahouse

active

Joined: Fri, Jan 8, 2010
20 Posts
No Rating

okay.  i think i've solved the probelm.  my cut plane wasn't high enough.  <d'oh>

 but if anyone can tell me how to do a screencap to pdf format, that would be helpful.

This user is offline

itsmyalterego

active

Joined: Thu, May 28, 2009
829 Posts

The printscreen key puts your current screen image onto the clipboard, and you can paste it into MSpaint or photshop with ctrl-V.   simplest way to get an idea across, or off of revit at least.

If you've got adobe acrobat, you can then print from photoshop to pdf format, but I don't believe there's any direct way to create a pdf screenshot, or the like.  I've got a fairly low opinion of the format, myself.
