Wed, Apr 7, 2010 at 3:53:11 PM | Roof, Roof, Tower and nary a boolean to be found

#1

1stepover


active

Joined: Sun, Oct 7, 2007
4 Posts
No Rating


Greetings,

New here and new to Revit, but I have been around the Architectural software block several times.  I finally committed to doing a project entirely in Revit and I am thrilled with the software so far and looking forward to spending a lot more time in this forum.  Without further gilding, however, I have gotten snagged by an issue in my project that I hope I can find some help with.

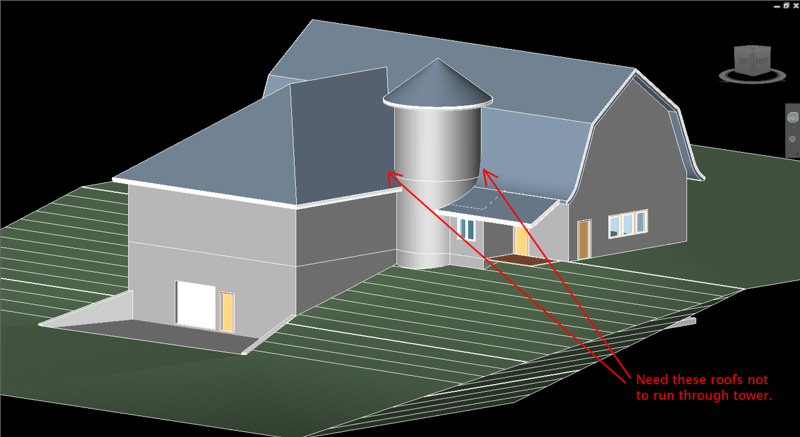

As seen in the attached picture I have a round tower that is inset into an L shaped barn.  Part of the barn has a gambrel roof that I built by extrusion due to the flared eaves.  The other part has a hipped roof that is joined to the gambrel.  Both roofs currently intersect and run through the tower.  I can cut a vertical opening in either roof to block out the tower mass, but when I cut the opening in the gambrel roof I get the error that the hipped roof no longer intersects part of it and can not be joined.  I get the same error if I try to cut a shaft opening through both roofs, or try and edit the footprint of the hipped roof and then join to the cut gambrel.  I'm running out of ideas on how to handle this and any suggestions would be appreciated, especially ones that work.

I'm running Revit 2010, thanks in advance for the help.



Attached Images


This user is offline



Wed, Apr 7, 2010 at 6:15:39 PM | Roof, Roof, Tower and nary a boolean to be found

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Can you put here only those walls with those roofs so i can check?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Apr 7, 2010 at 6:25:25 PM | Roof, Roof, Tower and nary a boolean to be found

#3

1stepover


active

Joined: Sun, Oct 7, 2007
4 Posts
No Rating


The two roofs and tower walls causing me trouble are attached.  Thanks for looking.

Attached Files

This user is offline



Wed, Apr 7, 2010 at 7:23:16 PM | Roof, Roof, Tower and nary a boolean to be found

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Hi, see the video: http://screencast.com/t/MDEyZDBm

Or download from here:  http://www.megaupload.com/?d=H3HW3JZY





Edited on: Thu, Apr 8, 2010 at 12:32:24 PM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Apr 7, 2010 at 9:06:42 PM | Roof, Roof, Tower and nary a boolean to be found

#5

1stepover


active

Joined: Sun, Oct 7, 2007
4 Posts
No Rating


Awesome Typhoon, thank you so much!  I'm going to make a donation to RevitCity for that one!  Thanks as well for introducing me to Jing, I'm going to have to play around with that a little as well.

This user is offline



Thu, Apr 8, 2010 at 10:02:02 AM | Roof, Roof, Tower and nary a boolean to be found

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Your Welcome....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
