Forums >> Revit Building >> Technical Support >> Baluster connectors not staying parallel to railing.

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Apr 7, 2010 at 11:22:06 AM | Baluster connectors not staying parallel to railing.

#1

noki96


active

Joined: Fri, Oct 9, 2009
3 Posts
No Rating


Hi Everybody,

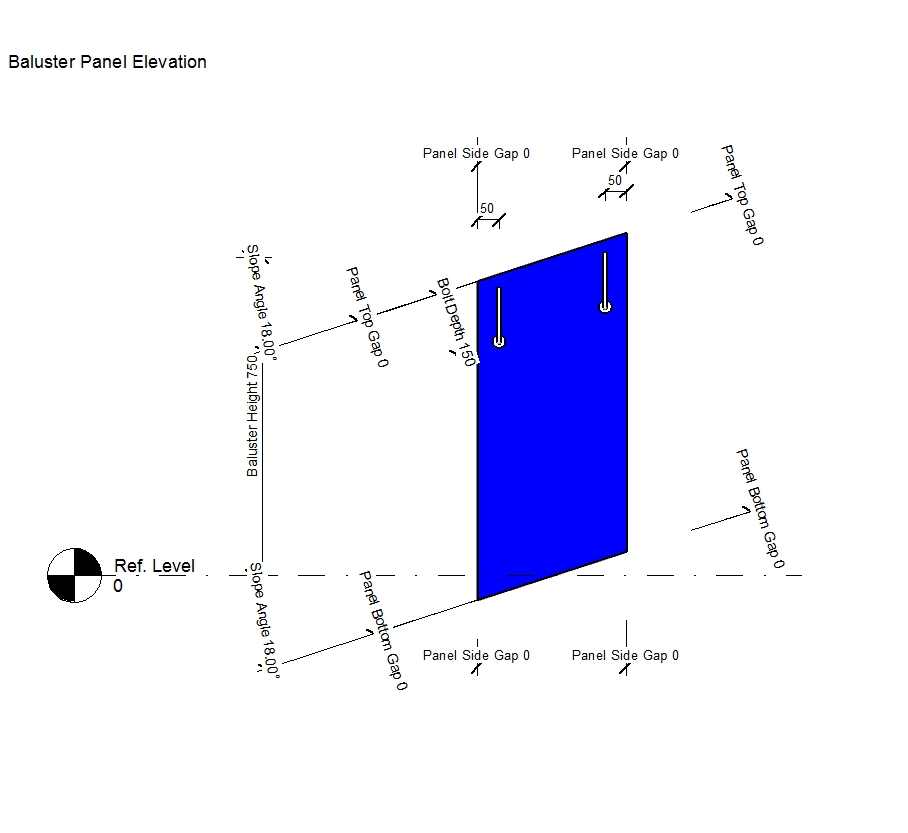

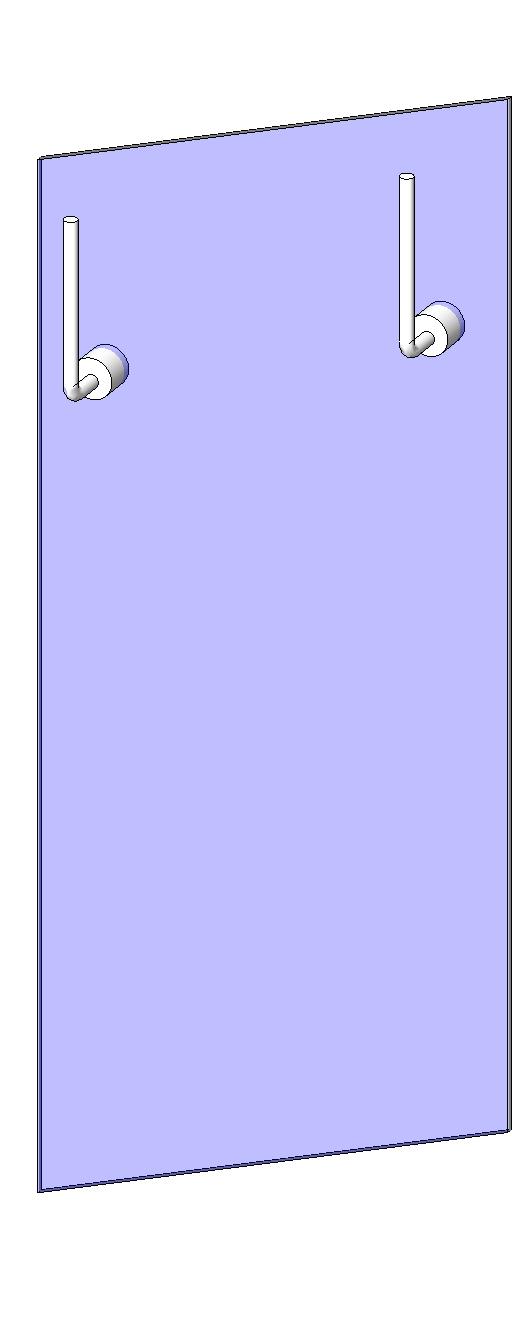

I am slowly getting my head around families but have been stuck on this frustrating problem. As you can hopefully see from the 3rd image the vert. baluster connectors along the floor are ok and run parallel to the railing but the balusters along the stairs are also level but i would lke them to run parallel to the railing above them. i have been trying in the family editor to lock the connectors to the sloped reference plane but cannot because of the shape of them. Does anyone have any ideas on how to constrain them? I would really appreciate some feedback or tips.

Thanks in Advance Guys.



Attached Images

74787_MBaluster_-_Dineen_Rear_exterior_sloped.jpg74787_MBaluster_-_Dineen_Rear_exterior.jpg74787_Dineens_Stairs.jpg

This user is offline



Sat, Apr 10, 2010 at 10:52:02 AM | Baluster connectors not staying parallel to railing.

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Can you put here that baluster so we can take a look and give you the correct answer?






-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, Apr 11, 2010 at 12:24:21 AM | Baluster connectors not staying parallel to railing.

#3

noki96


active

Joined: Fri, Oct 9, 2009
3 Posts
No Rating


Hey Typhoon,

Thanks for response, as requested here is attached baluster file. (revit 2009)



This user is offline



Sun, Apr 11, 2010 at 6:37:41 PM | Baluster connectors not staying parallel to railing.

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Here you have, a video and the Family: http://www.megaupload.com/?d=GH19ASLK





Edited on: Wed, Apr 28, 2010 at 6:54:14 AM

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Apr 12, 2010 at 5:34:29 AM | Baluster connectors not staying parallel to railing.

#5

noki96


active

Joined: Fri, Oct 9, 2009
3 Posts
No Rating


Hey Typhoon,

thanks very much for reposting the rfa file but I really appreciate the time you took to make video.

Exactly what i was asking and easy to understand!!!

Once again I really appreciate it.




This user is offline



Mon, Apr 12, 2010 at 8:37:59 AM | Baluster connectors not staying parallel to railing.

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Your Welcome




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
