Forums >> Revit Building >> Technical Support >> Add "grouting" between a flat wide base and angled narrow top

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Mar 12, 2010 at 8:11:09 PM | Add "grouting" between a flat wide base and angled narrow top

#1

arianachan


active

Joined: Wed, May 13, 2009
4 Posts
No Rating


Hello all,

I wonder if we can do a sweep blend between a flat plane and an angled plane?The attached image shows a concrete base and steel connector above. I don't know how to create "grouting" between them with Revit 2009.

Thanks in advance for your help.





Attached Files

This user is offline



Fri, Mar 12, 2010 at 8:23:17 PM | Add "grouting" between a flat wide base and angled narrow top

#2

EugenioFV


active

Joined: Tue, Jan 5, 2010
18 Posts
No Rating


I think all you need to do is create a sweep blend (in section view) using an arc as the path, so that the top node of the arc is perpendicular to the base of the steel connector. After that just make the profiles as you want them, and done.



I dont know if this helps you,  let me know if it wasnt what you wanted.


This user is offline



Fri, Mar 12, 2010 at 8:32:10 PM | Add "grouting" between a flat wide base and angled narrow top

#3

arianachan


active

Joined: Wed, May 13, 2009
4 Posts
No Rating


Thanks for your quick response, EugenioFV.

But do you mean I need to create individula sweep on each side? as "profiles" for front, side and back are different. Then what about the center? another extrusion?

 Thanks.


This user is offline



Fri, Mar 12, 2010 at 9:41:03 PM | Add "grouting" between a flat wide base and angled narrow top

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

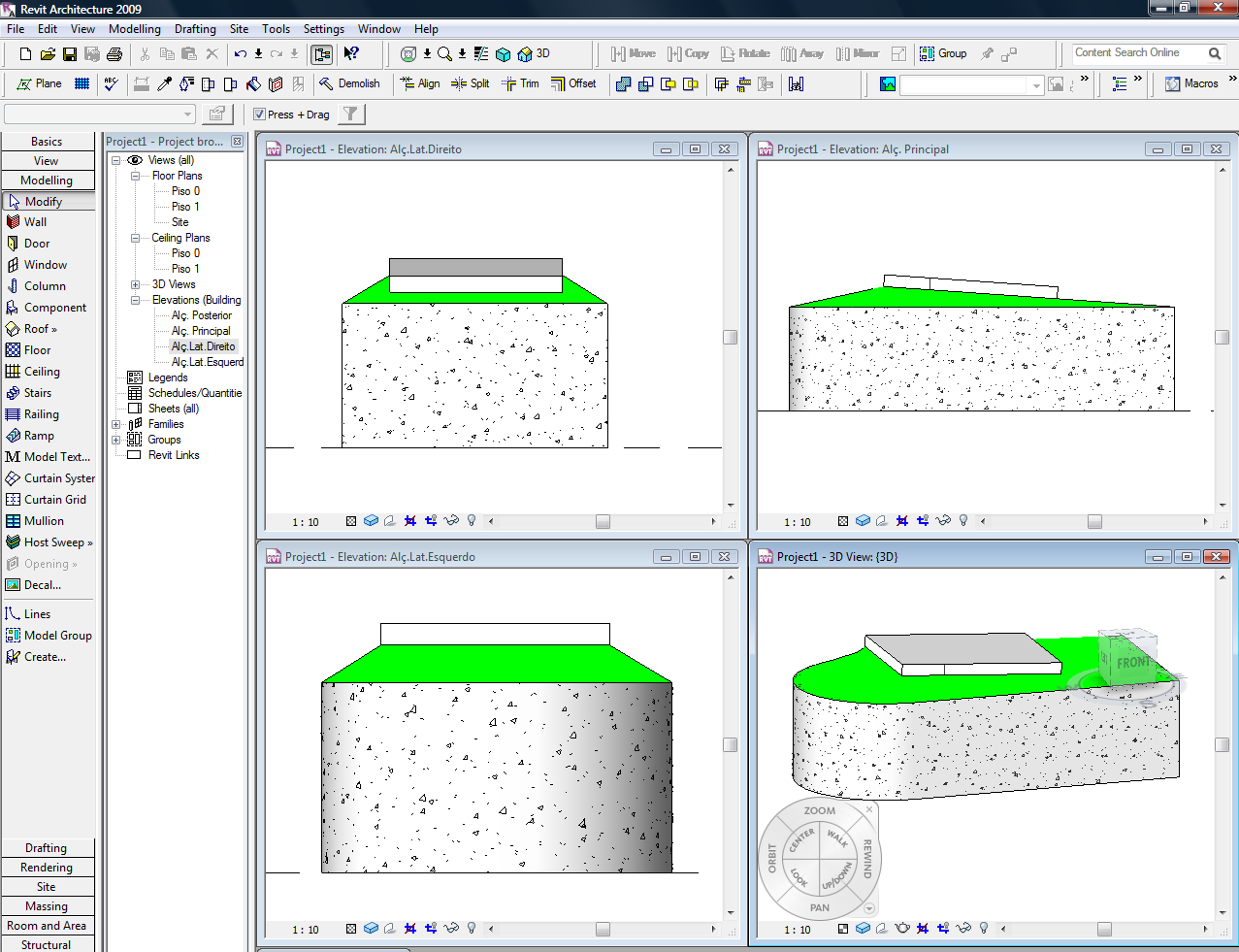

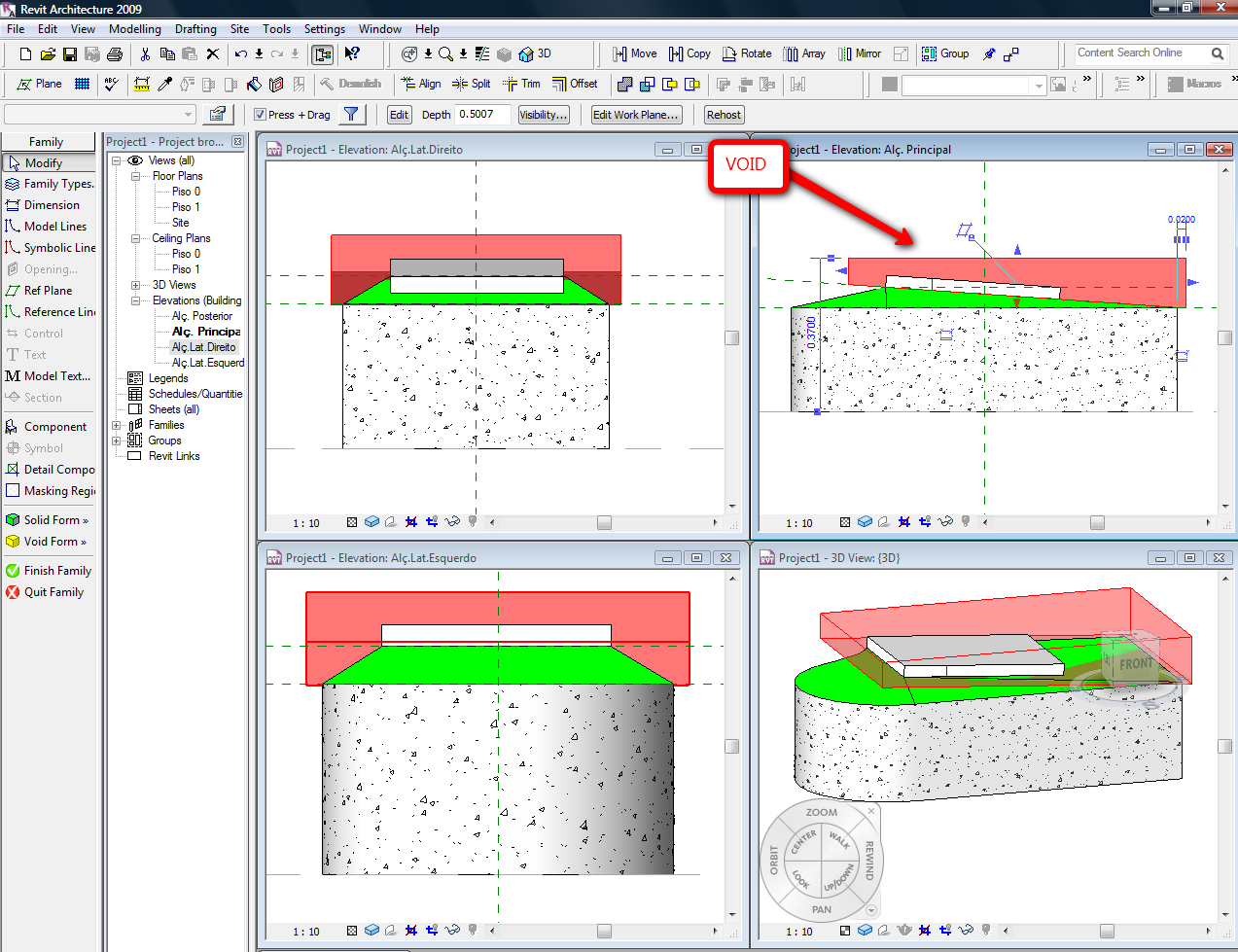

I just used the "Solid Blend" then a  "Void Extrusion", I don't know if this is the shape you want/need for your "Grouting"....





Edited on: Fri, Mar 12, 2010 at 3:41:19 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Mar 12, 2010 at 9:51:36 PM | Add "grouting" between a flat wide base and angled narrow top

#5

arianachan


active

Joined: Wed, May 13, 2009
4 Posts
No Rating


Thanks a lot!

this is what I need. i tried void extrusion before, but it would "cut" other things (above) out as well.is it i should create a family?

thanks, thanks, thanks....


This user is offline



Fri, Mar 12, 2010 at 10:18:27 PM | Add "grouting" between a flat wide base and angled narrow top

#6

arianachan


active

Joined: Wed, May 13, 2009
4 Posts
No Rating


Hi Typhoon,

May I ask for your further assisting on creating the “grout” that you mention in the post?



I was able to create the "Solid Blend" then a "Void Extrusion". However, how can I adjust the void in front view as per your image?



Please see the attached Revit file that I have been worked on.

Thanks again for your help!

Attached Files

This user is offline



Sat, Mar 13, 2010 at 1:40:32 PM | Add "grouting" between a flat wide base and angled narrow top

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Look my model





Attached Files

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
