hi all wizards etc...

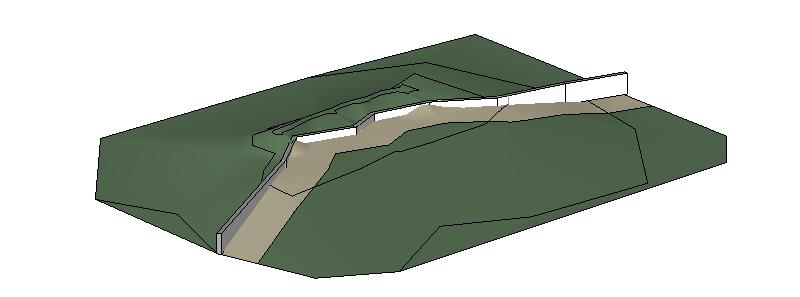

what woudl be the best way to creat e wall that varies in height that runs along a pathway- (as in image) taking into account that it may be a 'site family' component... is there a way to create a family of - walls mayeb that will automatically attach to the topography...-

same as with parking lines do thi-- maybe there is  way to do it with walls... i guess they woudl have to be in smaller increments.. but that will then create lots of work for placing them each time in all angles -lets not mention curves...

anywa help is appreciated

eli

Attached Images

-----------------------------------

eli

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

This user is offline

online2000

active

Joined: Sun, Feb 22, 2009
43 Posts

 i guess i am looking for a smarter tool thatwont require prfile dediting for each wall-

the bottom is not the issue (for rendering purposes) since the bottom may as wel be 10m under topographical level, but the top should be a consistant slope...

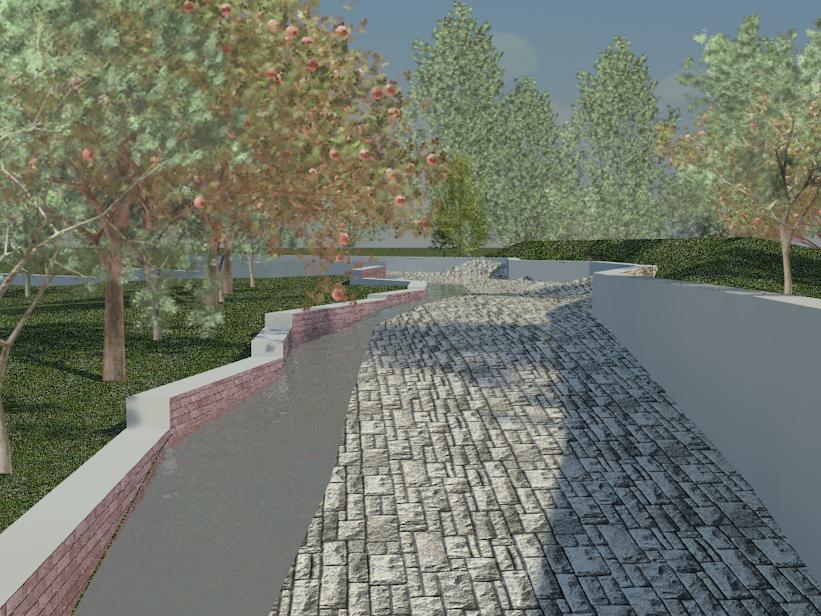

if it was a brick wall as in image-it would require lots of editing to follow path ofth water stream and the top level would need to have a constant slope (as per topographical solope)

AND!!!- while i am at it-- any ideas about how to manipulate render maps to curve? i remember some part of the 2010 new tps showing patten that changes (streches) to shape around a corner of a roof overhang-- will try find image fo this topic..

thanks

Attached Images

-----------------------------------

eli
