Mon, Mar 8, 2010 at 5:24:52 PM | underside of stair

#1

vblevin


active

Joined: Wed, Jun 27, 2007
46 Posts
No Rating


I have a winder stair. How the heck do I model the underside of the stair as a flat surface so that I dont see the treads and risers?

This user is offline



Mon, Mar 8, 2010 at 5:45:50 PM | underside of stair

#2

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 12 Votes


Use sweep blend create path along spiral of stair, draw sections at top and bottom of stair. Read you manual about sweep blends.

This user is offline



Mon, Mar 8, 2010 at 6:01:47 PM | underside of stair

#3

vblevin


active

Joined: Wed, Jun 27, 2007
46 Posts
No Rating


can anyone offer a little more instruction please.

This user is offline



Mon, Mar 8, 2010 at 6:28:08 PM | underside of stair

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Just a question: Why don't you use the "Monolithic Stair"?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Mar 8, 2010 at 7:37:40 PM | underside of stair

#5

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 12 Votes

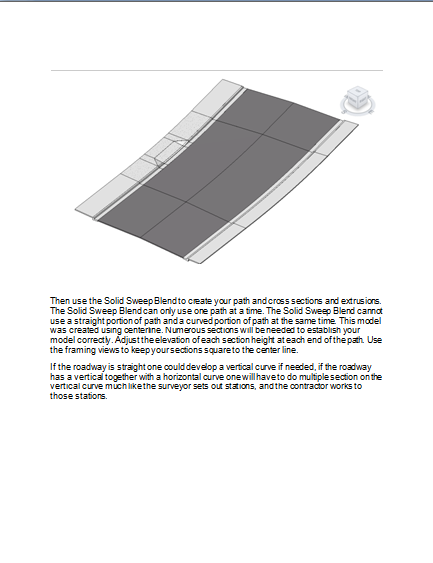

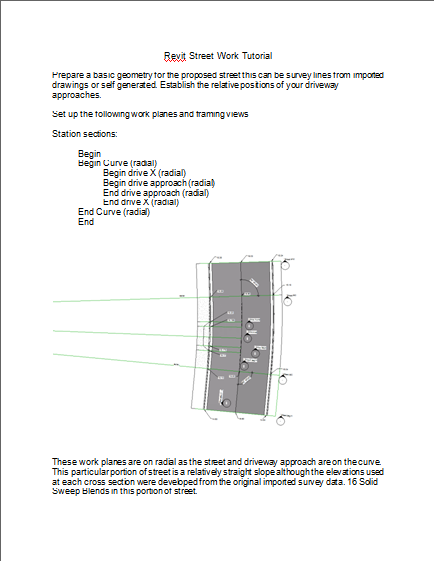

Attached are two files which will help you with understanding the sweep blend technique.

Attached Images


This user is offline



Mon, Mar 8, 2010 at 7:38:41 PM | underside of stair

#6

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 12 Votes


This one is even better I did these a while ago.

This user is offline



Mon, Mar 8, 2010 at 8:47:51 PM | underside of stair

#7

vblevin


active

Joined: Wed, Jun 27, 2007
46 Posts
No Rating


thanks for the tutorila. And i tried to make it monolithis with smooth underside, but for some reason it still comes out stepped






This user is offline



Tue, Jun 24, 2014 at 2:17:50 PM | Curved monolithic stair w/ smooth underside

#8

rduke


active

Joined: Wed, Aug 1, 2012
1 Posts
No Rating


Hi Folks,

My firm trying to model part of a project in Revit to see if it would be a viable option for us going forward.  I've attached a project file of a spiral stair as well as a pdf of a cad drawing of what we'd like the stair to look like ultimately.  I have a couple questions.

-We'd like the underside of the stair stair to be smooth and to be able to modify the depth and profile of the stringer.  You'll see in the project file that the stair has a smooth underside but the stairs on the inside of the curve project into the the smooth underside.  I've tride adjusting the riser and tread thickness and have had no luck.  Is there any way to change the smooth underside or change the stringer profile on a monolithic stair.

-We'd like to have a bullnose step at the first rise.  Is there an easy way to do this?

Any advice you could give me or tutorials or relevant threads you could direct me to would be greatly appreciated.



This user is offline
