Forums >> Revit Building >> Technical Support >> Complex Window Families

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Mar 3, 2010 at 9:09:59 AM | Complex Window Families

#1

amycarnahan


active

Joined: Tue, Nov 3, 2009
2 Posts
No Rating


Someone in our office has modeled a complex window family where the initial opening in the template is deleted and several voids are extruded to cut through the various materials in the wall (i.e. brick opening, core opening, finish opening).   When loaded into the project, the window does not appear correctly in plan.  It seems as is the voids are blocking all of the solid extrusions.  This window was modeled according to a "How to" revit article.  All steps were followed.  Why is the window not appearing correctly in plan?

This user is offline



Wed, Mar 3, 2010 at 10:02:08 AM | Complex Window Families

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Because it was still probably modeled incorrectly.



If you want someone to look at the family, post it.  Otherwise nobody can answer you - just too complex to guess.


This user is offline



Wed, Mar 3, 2010 at 10:52:03 AM | Complex Window Families

#3

amycarnahan


active

Joined: Tue, Nov 3, 2009
2 Posts
No Rating


Sorry. I forgot to attach the family.  You will see that it looks ok in plan in the family.  It only views incorrectly when loaded into a project.



This user is offline



Wed, Mar 3, 2010 at 1:02:09 PM | Complex Window Families

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


 "This window was modeled according to a "How to" revit article.  All steps were followed.  Why is the window not appearing correctly in plan?"

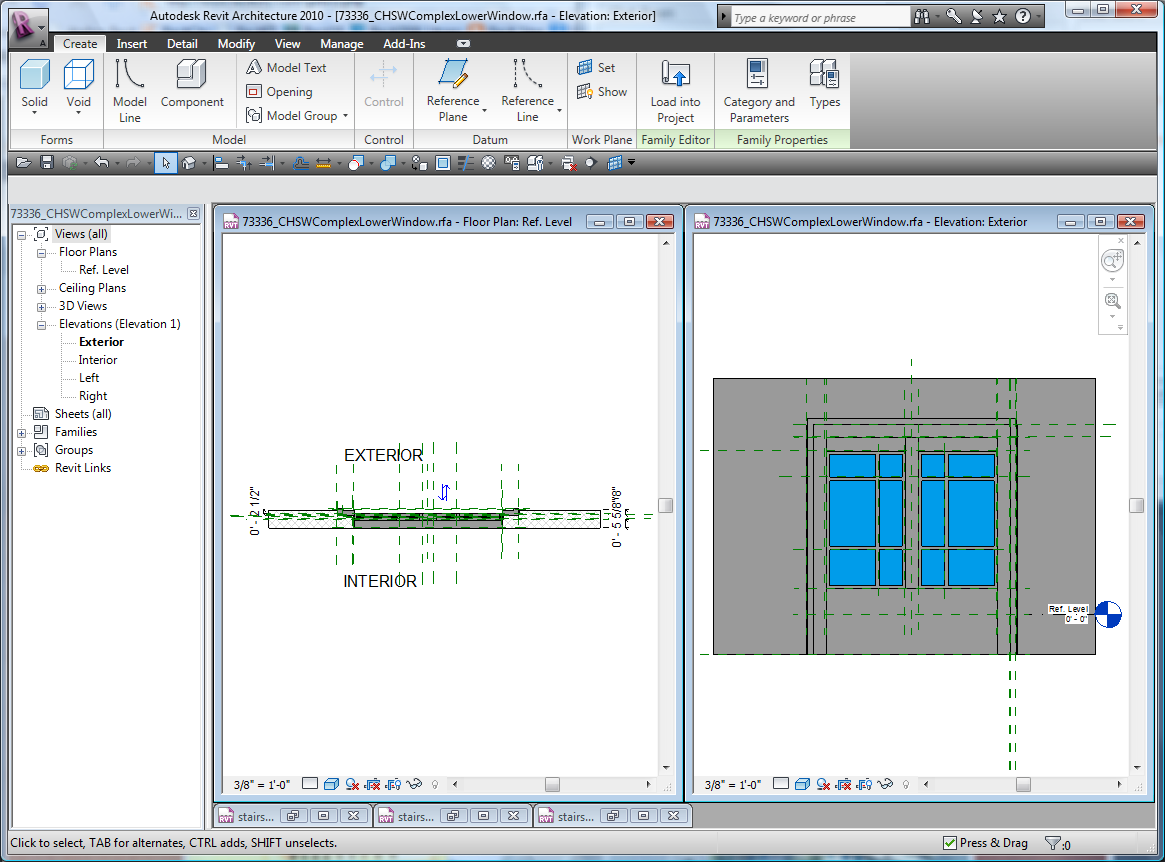

WHAT??? are jokking right? You don't have any Dimension or Parameter in this window... How do you want to control THIS window in the project? The unique dimensions that appear are the "Automatic Sketch Dimensions"...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Mar 3, 2010 at 1:42:29 PM | Complex Window Families

#5

hisdirt


active

Joined: Sun, Nov 6, 2005
123 Posts
5 Stars: 5 Votes


You mean a complex window families like the attached images? Typhoon is right, you need a series of parameters driving the thickness of the internal/external claddings that can be either instance or type based.



And the reason you use void sweeps/extrusions rather than openings is due to the fact that you can only have one opening OR many voids cutting the wall, not both.



Hope this helps!





Edited on: Wed, Mar 3, 2010 at 1:45:19 PM
