Forums >> Revit Building >> Technical Support >> Wire Mesh curtain wall?

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Mar 1, 2010 at 12:34:48 AM | Wire Mesh curtain wall?

#1

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


Presently, I am trying to create a curtain wall for my project that is made of a specific type of wire mesh, Lamelle from GKD Metal Fabris:

[img]http://www.gkdmetalfabrics.com/assets/products/3_4Webview/Lamelle-(Persp)_web.jpg[/img]



I've made the curtain wall panel, but it in incredibly processor intensive, and that's only a single panel, I haven't even tried putting it to a whole curtain wall yet.  Is there a default material in revit like this, or a place I can download one?  That would help me out immensely



Thanks in advance.


This user is offline



Mon, Mar 1, 2010 at 1:46:09 PM | Wire Mesh curtain wall?

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


As you have found out, you don't want to do this as a solid with void holes....   Use a material.  If they have an image of their material, you might be able to make your own pattern.  Read some of the links below and if not there, search the forums.

This user is offline



Mon, Mar 1, 2010 at 3:09:09 PM | Wire Mesh curtain wall?

#3

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


I need it to have transparency and glow properties, so a simple image won't work.  How do I create a material that has holes in it?

This user is offline



Mon, Mar 1, 2010 at 3:15:56 PM | Wire Mesh curtain wall?

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


If you have that image in JPG or PNG, then open the image in Photoshop and create a new one BUT in Alpha channel, with this you can use that "Alpha Channel" image in "Bump" parameter to create the effect you want... Try and say something...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Mar 1, 2010 at 3:38:18 PM | Wire Mesh curtain wall?

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Wow ... we try to help and you disregard our answer ....



As I said ... in the post below, it suggests you look it the materials - under metals!   Look at "Chrome Satin Screen"  You can change the hole type.


This user is offline



Sun, Mar 18, 2012 at 4:54:23 PM | Wire Mesh curtain wall?

#6

MIDStudent


active

Joined: Sun, Mar 4, 2012
3 Posts
No Rating


I am trying to do that same thing but for some reason I don't seem to have "Chrome Satin Screen" in my materials list... I am using Revit Architecture 2012.  Any help would be greatly appreciated on how to go about this.


This user is offline



Mon, Mar 19, 2012 at 1:30:11 PM | Wire Mesh curtain wall?

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


There are several different ones in 12.... Keep looking

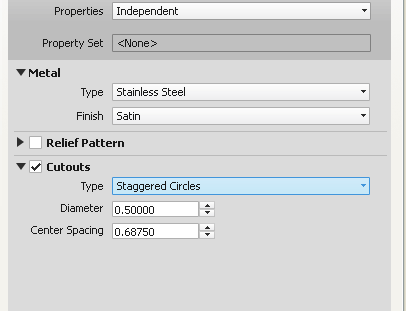

You can use a bitmap for the holes - custom - or use one of the standard patters but with the size you specify.



Attached Images


This user is offline



Fri, Oct 24, 2014 at 4:10:47 PM | Wire Mesh curtain wall?

#8

sgray05


active

Joined: Tue, Jan 17, 2012
50 Posts
No Rating


WWHub.

Please excuse me replying to a 2 yr old thread, however I am trying to achieve the same result as discussed in this thread. I have searched all the materials that are standard with the program and am unable to find any that provide this type of mesh effect that is reflected in the image you provided.

I am working on revit 2014 and I can't imagine that they would exculde this content. Is there any place that I can easily download this material or an easy way to custom create.



Thanks.




This user is offline



Fri, Oct 24, 2014 at 6:21:59 PM | Wire Mesh curtain wall?

#9

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


It should be there.

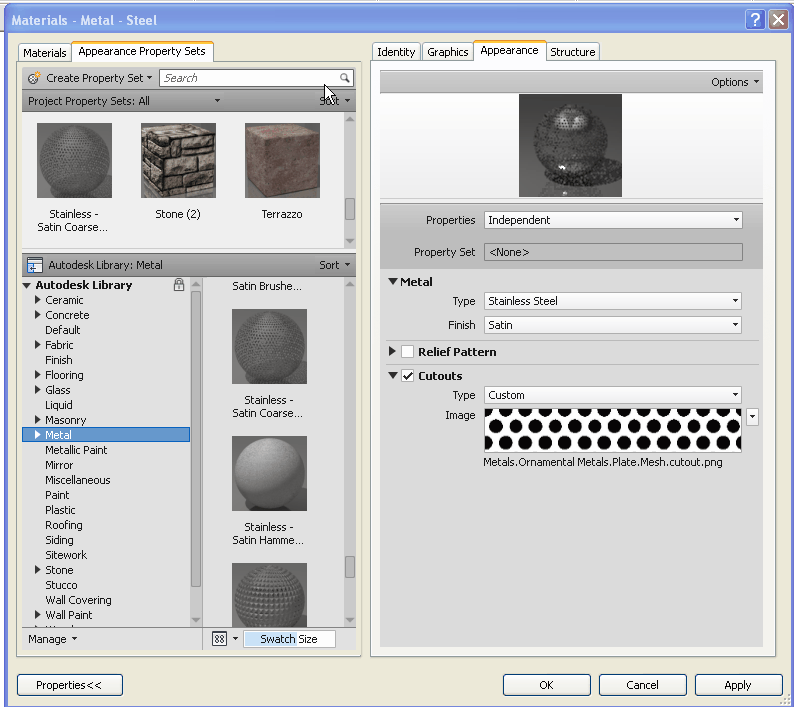

Attached Images


This user is offline
