hey guys, first post here so excuse my lack of knowlege as im pretty new to revit.

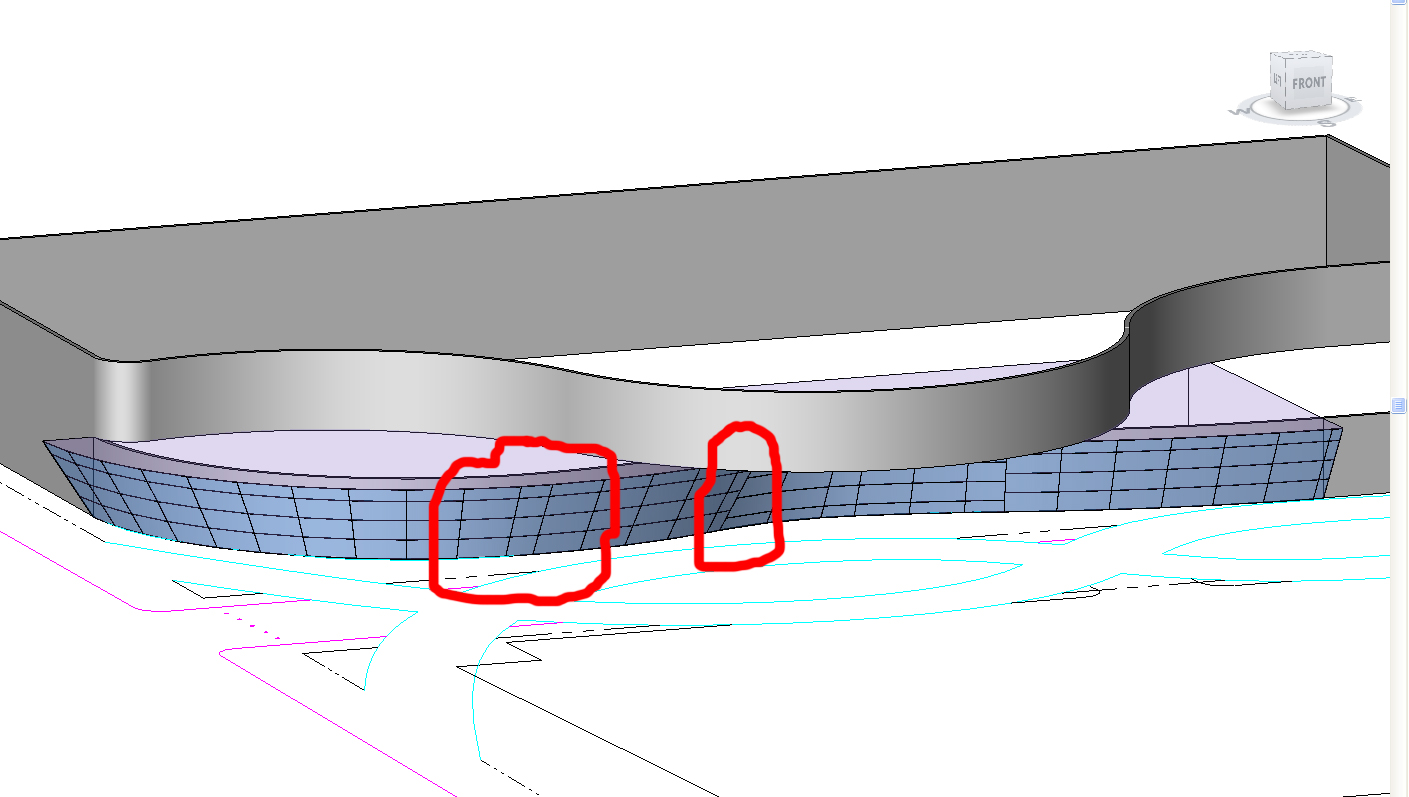

anyways, i have a portion of a building im designing that has a curved wall which angles out on the vertical axis. now i can get the wall to be that way but when put a curtain grid across the surface it treats each curve as a seperate facade and the grids don't match. i haven't been able to join the walls or create one single facade any way i try. i've thought that maybe by starting off with a spline for the curve it will give me one solid wall but its nearly impossible for me to get a spline to follow where i want it to and it seems like it should work when i just pick the lines i want/already have and i haven't found a way to join the lines into one. i've attached (tried to attach) a pic showing the over all concept and problem areas

anyone got any ideas?
