Forums >> Revit Building >> Technical Support >> Attaching chairs to an extruded floor?

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Feb 23, 2010 at 8:25:59 PM | Attaching chairs to an extruded floor?

#1

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


I am attempting to set up a sloped floor for an auditorium space in my project.  Presently I have had to make a different floor for each of the chair heights.  This seems incredibly inefficient.  SO instead I have now created the sloped floor (more specifically, I created a roof by extrusion, but it should theoretically work the same for my purposes)



Now the problem I am having is that I cannot find the "attach" option for the chairs so I can assign them to floor object.



I've included a screenshot, I need the floating chairs the be aligned vertically with the sloped floor beneath them.



Thanks in advance.


This user is offline



Tue, Feb 23, 2010 at 8:28:39 PM | Attaching chairs to an extruded floor?

#2

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


ok, so it didn't include my image in the post.  Here it is.

 [IMG]http://i41.photobucket.com/albums/e262/cstgirllover/Architecture/Revit/ChairsandFloor.jpg[/IMG]


This user is offline



Tue, Feb 23, 2010 at 9:04:50 PM | Attaching chairs to an extruded floor?

#3

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 24 Votes

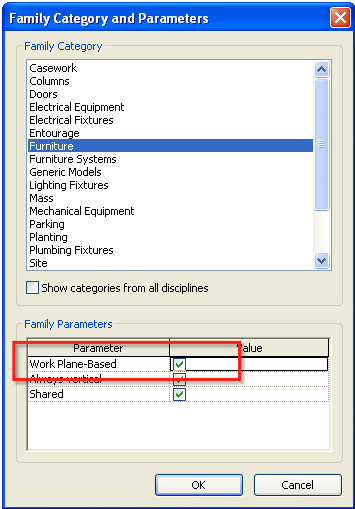

Take your chair family, open it up, go to the family categories and parameters, check the "work plane" based box, save family, load into your project.



The family will now want to host itself to the faces of your floor.



Tip: Go to 3D view and place a chair on each riser.  Then switch to floor plan to position, copy/array.



Alternate: Create new face based family and next the chair family into it.  Use similar to above in project.



HTH





Attached Images


-----------------------------------

Tom

www.reviteer.com   http://twitter.com/Reviteer



This user is offline

View Website

Tue, Feb 23, 2010 at 9:49:50 PM | Attaching chairs to an extruded floor?

#4

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


Ok, that worked.  Thank you, but now it's saying "Can't rotate element into this position" when I try to turn the cahir to face the front of the auditorium.



I guess I could edit the family to face the correct direction, but I would prefer it if there were some other method.  Any thoughts?


This user is offline



Wed, Feb 24, 2010 at 12:03:05 AM | Attaching chairs to an extruded floor?

#5

TomDorner


active

Joined: Sun, Apr 25, 2004
1207 Posts
4.5 Stars: 24 Votes


Can you use the space bar to rotate the chair prior to placement?

-----------------------------------

Tom

www.reviteer.com   http://twitter.com/Reviteer



This user is offline

View Website
