Forums >> Revit Building >> Technical Support >> Roof problems with 2 gable roofs with different pitches.

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Feb 22, 2010 at 6:59:53 PM | Roof problems with 2 gable roofs with different pitches.

#1

adeuley


active

Joined: Tue, Jun 16, 2009
27 Posts
No Rating

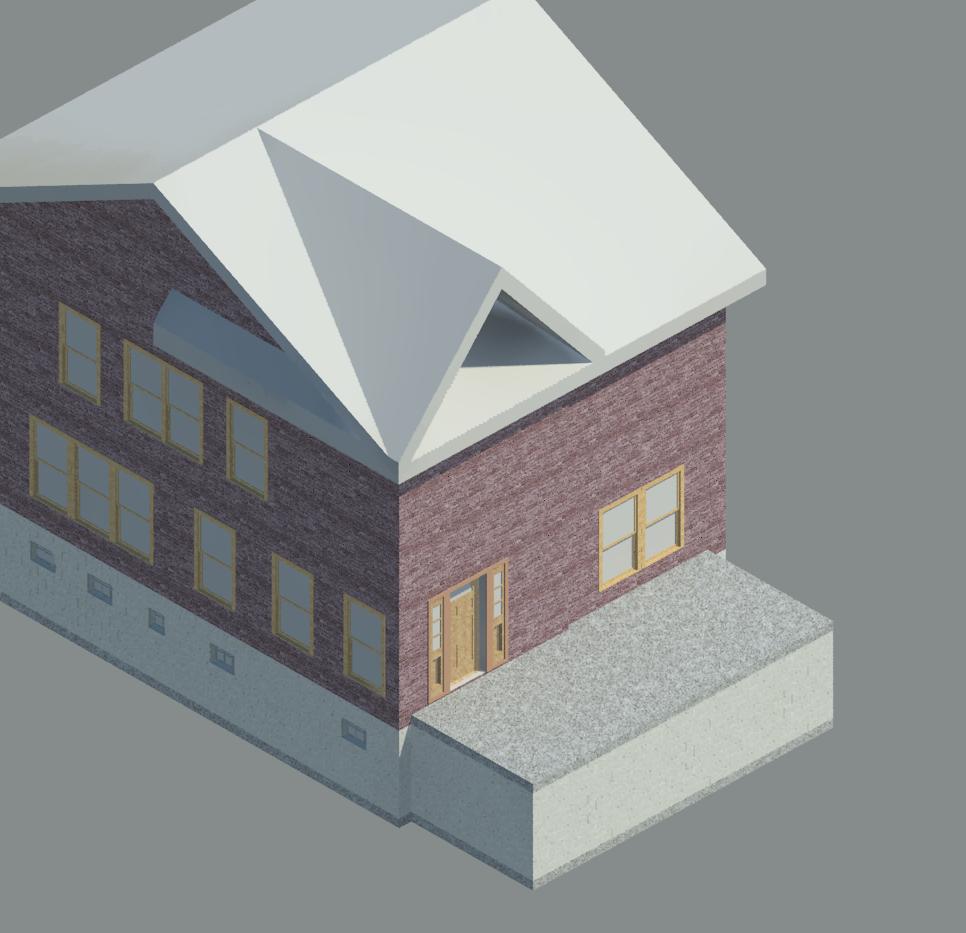

I am trying to join two roofs. One has a pitch of 6/12 and the other of 14/12. I can create both of them fine but can't seem to join them. I have tried using the Join roofs command but they don't create a seam between them. I have included a picture for reference. Any help would be appreciated. Thanks.

Attached Images


Attached Files

This user is offline



Mon, Feb 22, 2010 at 7:15:28 PM | Roof problems with 2 gable roofs with different pitches.

#2

jterrell


active

Joined: Thu, Mar 9, 2006
118 Posts
3 Stars: 5 Votes


You'll probably have to do some manual cutting using vertical openings if the roofs won't join

This user is offline

View Website

Mon, Feb 22, 2010 at 7:15:54 PM | Roof problems with 2 gable roofs with different pitches.

#3

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

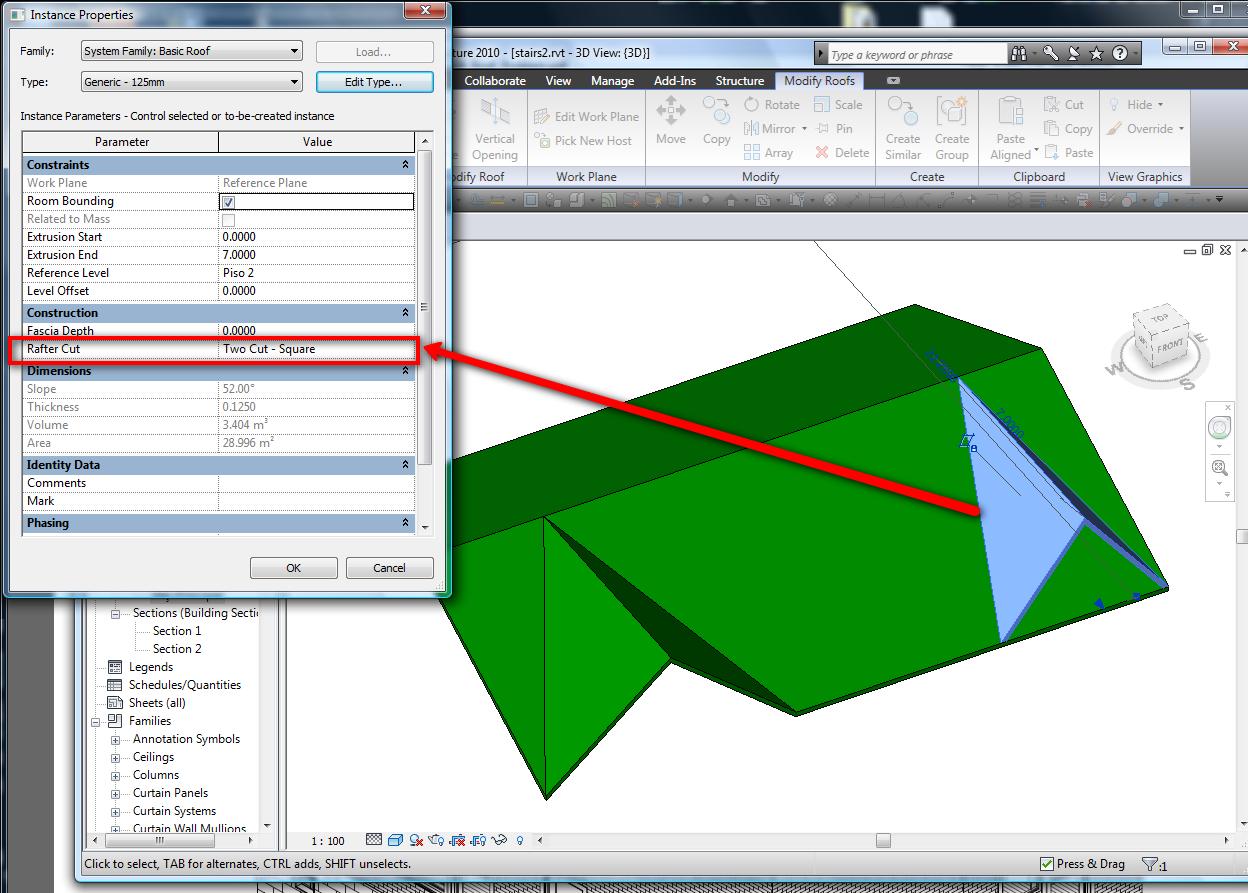

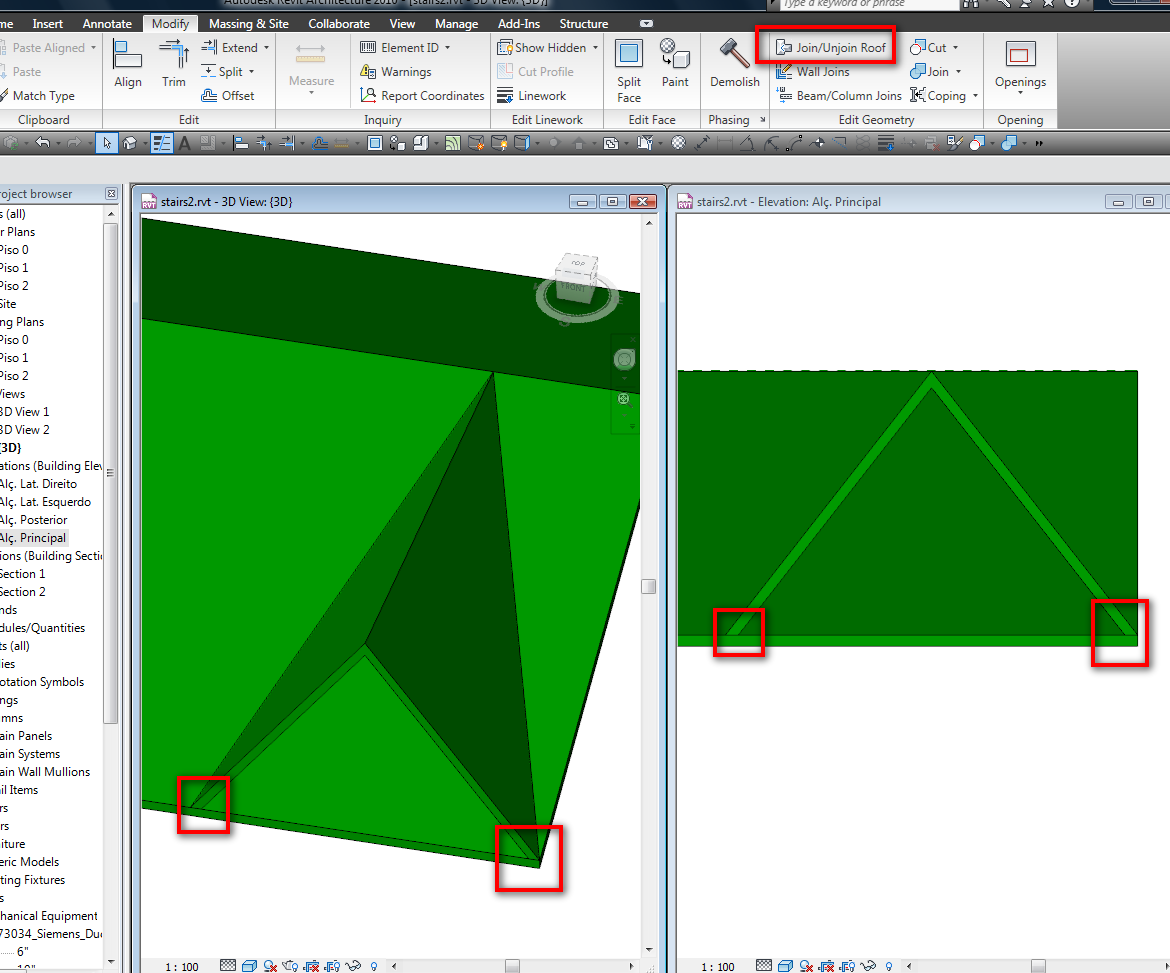

Pick in that small roof, go to properties, change the "Rafter Cut" to "Two Cut - Square" then use the "Join/Unjoin Roof" tool....

Check the image attached.





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Feb 23, 2010 at 8:35:11 PM | Roof problems with 2 gable roofs with different pitches.

#4

adeuley


active

Joined: Tue, Jun 16, 2009
27 Posts
No Rating


I have tried cutting opening and changing it to square plumb but I still get the error message that they can not be joined.

This user is offline



Wed, Feb 24, 2010 at 7:43:20 PM | Roof problems with 2 gable roofs with different pitches.

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

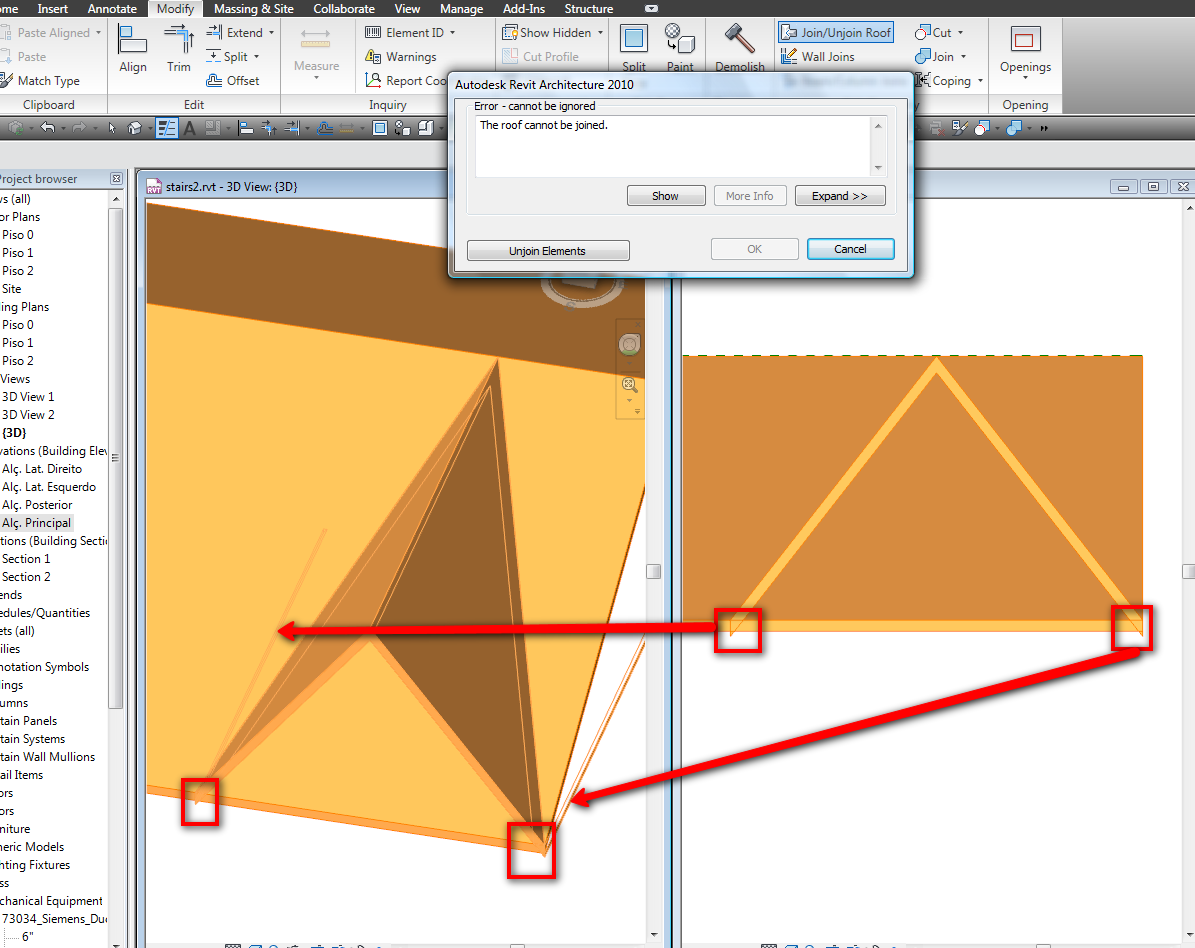

That's the Error? so... that's the problem.....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Apr 28, 2010 at 9:28:42 PM | Roof problems with 2 gable roofs with different pitches.

#6

egoled


active

Joined: Sun, May 31, 2009
16 Posts
No Rating


Hey guys i need some help.

 I need to build a roof that looks like this photo.. is there a way to build a double pitched roof. I have tried to join to seperate roofs but with no success. I have also tried to draw the roof with a valley but did not work. I hope some one can help me as I need a solution fast.







Attached Images


This user is offline



Wed, Apr 28, 2010 at 9:30:54 PM | Roof problems with 2 gable roofs with different pitches.

#7

egoled


active

Joined: Sun, May 31, 2009
16 Posts
No Rating


Also it would be helpful if any one had ideas with how to replicate the brickwork

This user is offline



Thu, Apr 29, 2010 at 2:27:44 AM | Roof problems with 2 gable roofs with different pitches.

#8

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes

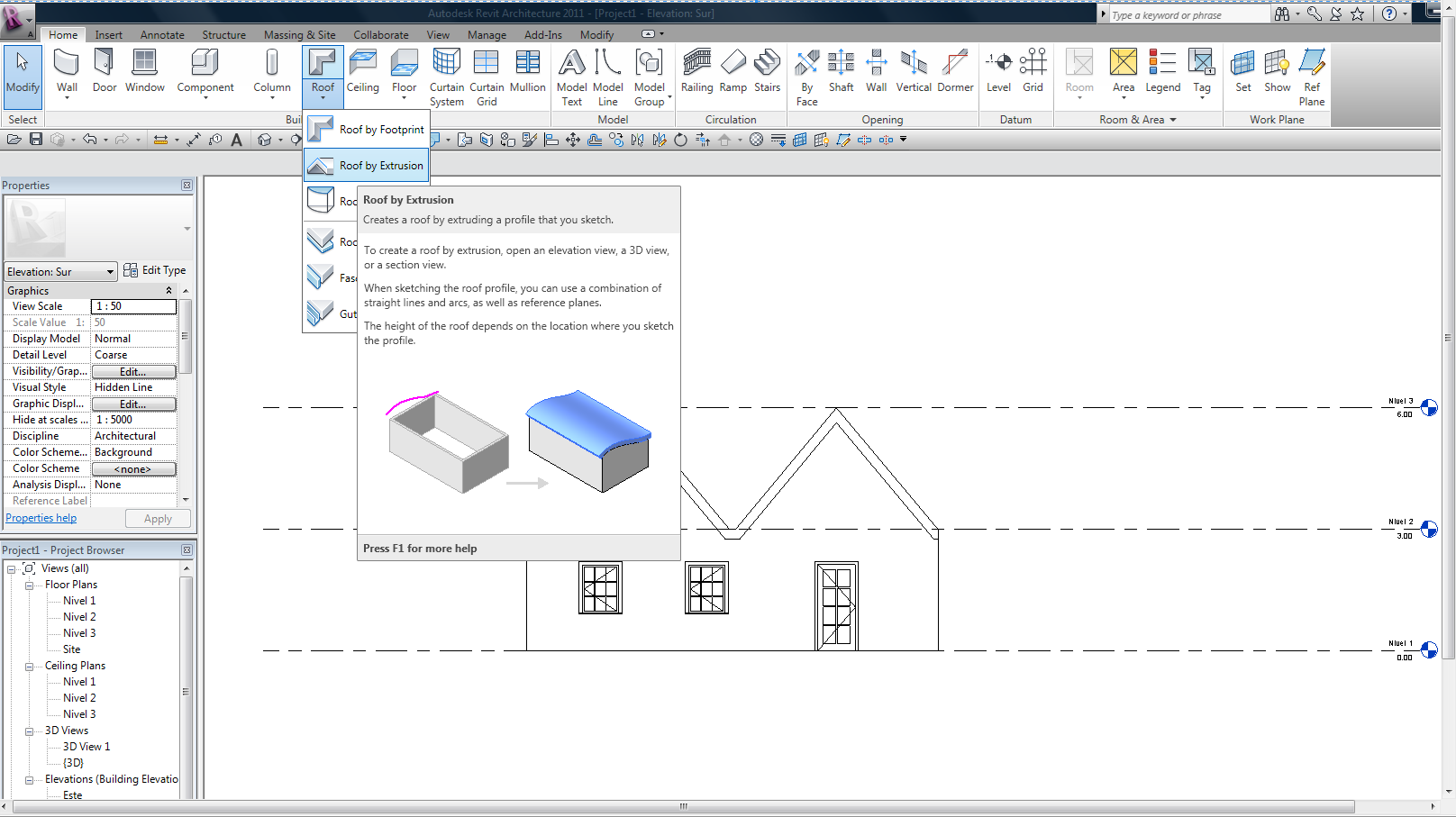

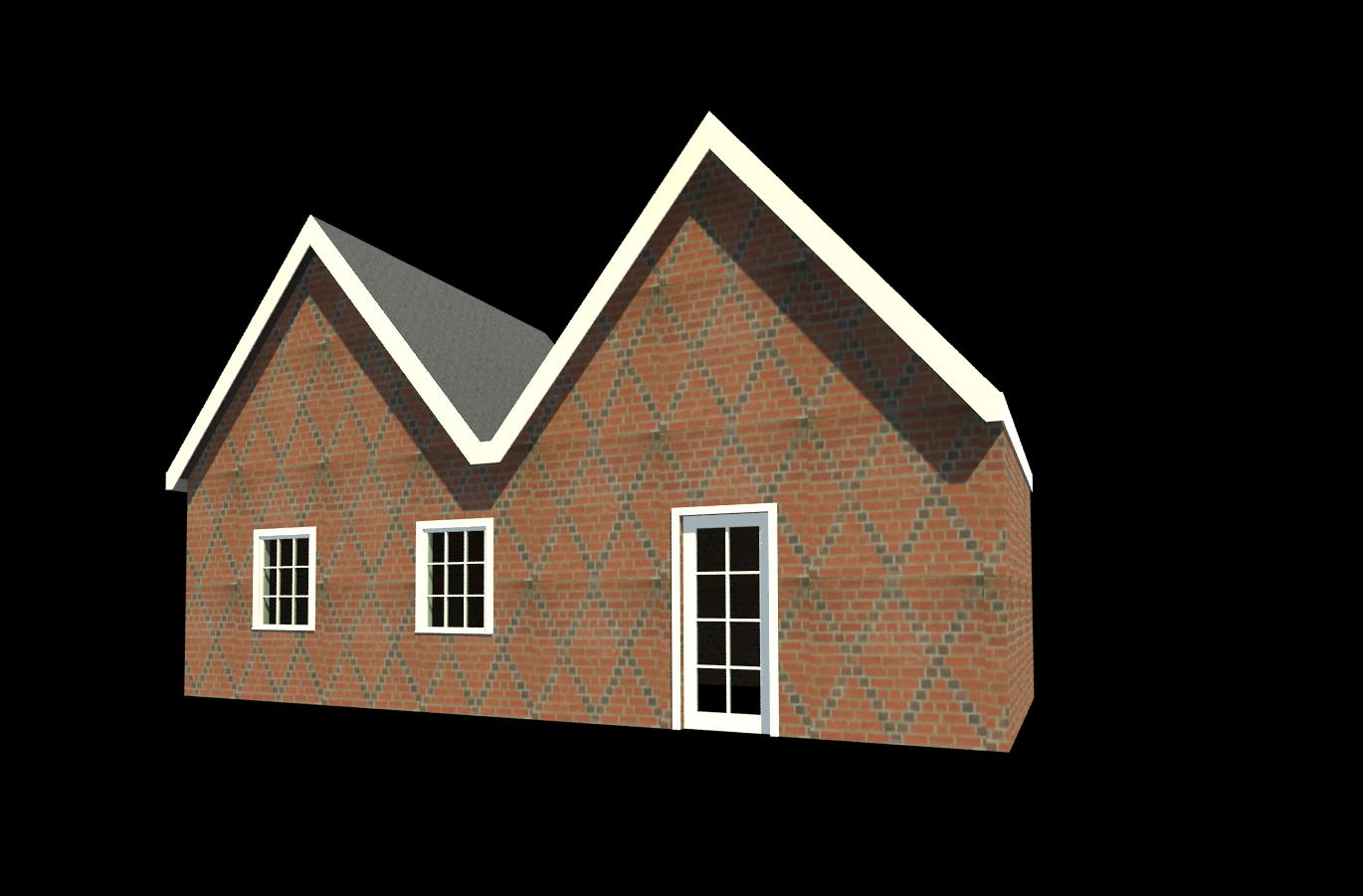

You can use Roof by Extrusion and an image for the brick work.....

Attached Images


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Sat, May 1, 2010 at 6:27:57 PM | Roof problems with 2 gable roofs with different pitches.

#9

egoled


active

Joined: Sun, May 31, 2009
16 Posts
No Rating


erland

 Thanks realy appreciate that thanks... thanks for the quick response


This user is offline
