Forums >> Community >> Newbies >> topo lines under trees

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Feb 16, 2010 at 2:20:37 AM | topo lines under trees

#1

nklank


active

Joined: Wed, Nov 4, 2009
6 Posts
No Rating


Is there a way to hide the topo lines underneath trees and other vegetation families in site plans other than taking the finished pdf into illustrator?

 Thanks

Nick


This user is offline



Tue, Feb 16, 2010 at 11:27:19 AM | topo lines under trees

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

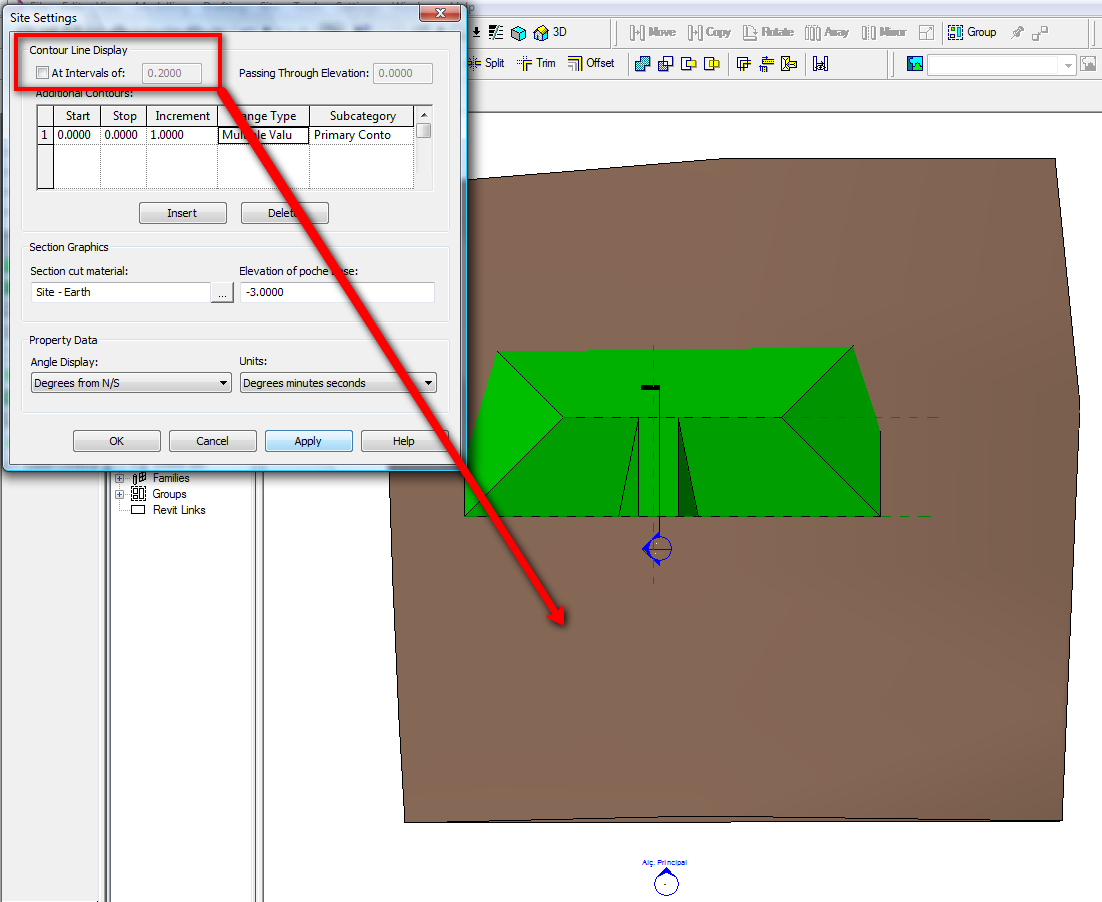

"Topo Lines" - are you talking about this topo lines?





Edited on: Tue, Feb 16, 2010 at 5:51:40 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Feb 16, 2010 at 11:49:11 AM | topo lines under trees

#3

Kardiff


active

Joined: Fri, Nov 7, 2008
135 Posts
5 Stars: 3 Votes

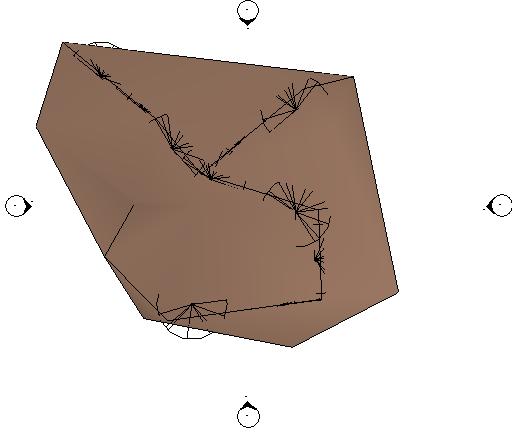

Typhoo i think he means that planting are transparent on plan of that the topo lines cut through them

 My only suggestion is to edit your tree and plant family and place a tree shaped profile above it, and have it hidden in certain views (like how the furniture families tend to work so they appear white on plan even with a legend)



Attached Images


-----------------------------------

- Just trying to help out while I wait in the office for my renders to complete

www.danrossiter.co.uk

This user is offline

View Website

Tue, Feb 16, 2010 at 11:52:42 AM | topo lines under trees

#4

Kardiff


active

Joined: Fri, Nov 7, 2008
135 Posts
5 Stars: 3 Votes

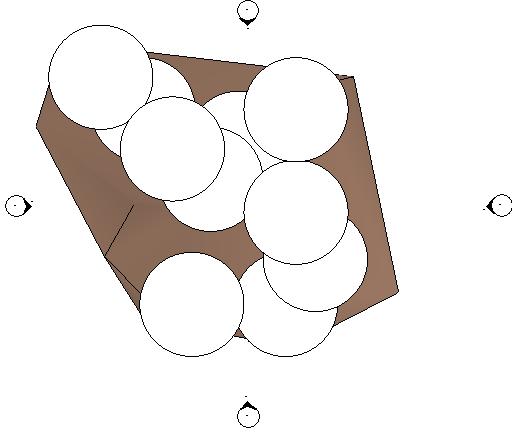

here, by editing my tree and putting a masking reigon at 'reference plane:top'I have made a simple cover for my trees, if you put more detail in, you can get the desired effect you're after



Attached Images


-----------------------------------

- Just trying to help out while I wait in the office for my renders to complete

www.danrossiter.co.uk

This user is offline

View Website

Wed, Mar 3, 2010 at 6:41:32 AM | topo lines under trees

#5

nklank


active

Joined: Wed, Nov 4, 2009
6 Posts
No Rating


I finally got around to trying to do this but when i tried to add the new level, it kept saying that it was invisible in that view and then it said it was visible in the visibility/overrides window.

This user is offline



Wed, Mar 3, 2010 at 9:57:28 AM | topo lines under trees

#6

Kardiff


active

Joined: Fri, Nov 7, 2008
135 Posts
5 Stars: 3 Votes


you dont make a new level

select your tree, press edit

in the family files just draw a mask reigon over your tree and make sure it's reference is reference:top


-----------------------------------

- Just trying to help out while I wait in the office for my renders to complete

www.danrossiter.co.uk

This user is offline

View Website
