Sun, Feb 14, 2010 at 5:19:28 PM | Mesh not rendering to scale???

#1

SirLyons


active
SirLyons Avatar

Joined: Sun, Mar 29, 2009
15 Posts
No Rating


Does anyone know if there is a what to insure that all the holes in the mesh are at the same size and not stretched?



I have attached an image of the surface I am working with.



Attached Images


-----------------------------------
Fay Jones School of Architecture | University of Arkansas | Design Build | 4th Year

This user is offline

View Website

Mon, Feb 15, 2010 at 4:36:26 AM | Mesh not rendering to scale???

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


That image is not clear enough, can you please put some other images with the model you are render and the properties of the material you attrib to the surface?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Feb 15, 2010 at 6:06:32 AM | Mesh not rendering to scale???

#3

Kardiff


active

Joined: Fri, Nov 7, 2008
135 Posts
5 Stars: 3 Votes


an elevational / view of the profile would also be helpfull as it appears to be undulateing

-----------------------------------

- Just trying to help out while I wait in the office for my renders to complete

www.danrossiter.co.uk

This user is offline

View Website

Mon, Feb 15, 2010 at 10:47:28 AM | Mesh not rendering to scale???

#4

SirLyons


active
SirLyons Avatar

Joined: Sun, Mar 29, 2009
15 Posts
No Rating


I have attach a newer rendering as well as a section profile of the wall.



Also, is there a way to render the mesh with a depth?  The mass it is applied to is 1/2 inch thick and I would like the perferations to show that depth.



Attached Images


-----------------------------------
Fay Jones School of Architecture | University of Arkansas | Design Build | 4th Year

This user is offline

View Website

Mon, Feb 15, 2010 at 11:36:29 AM | Mesh not rendering to scale???

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

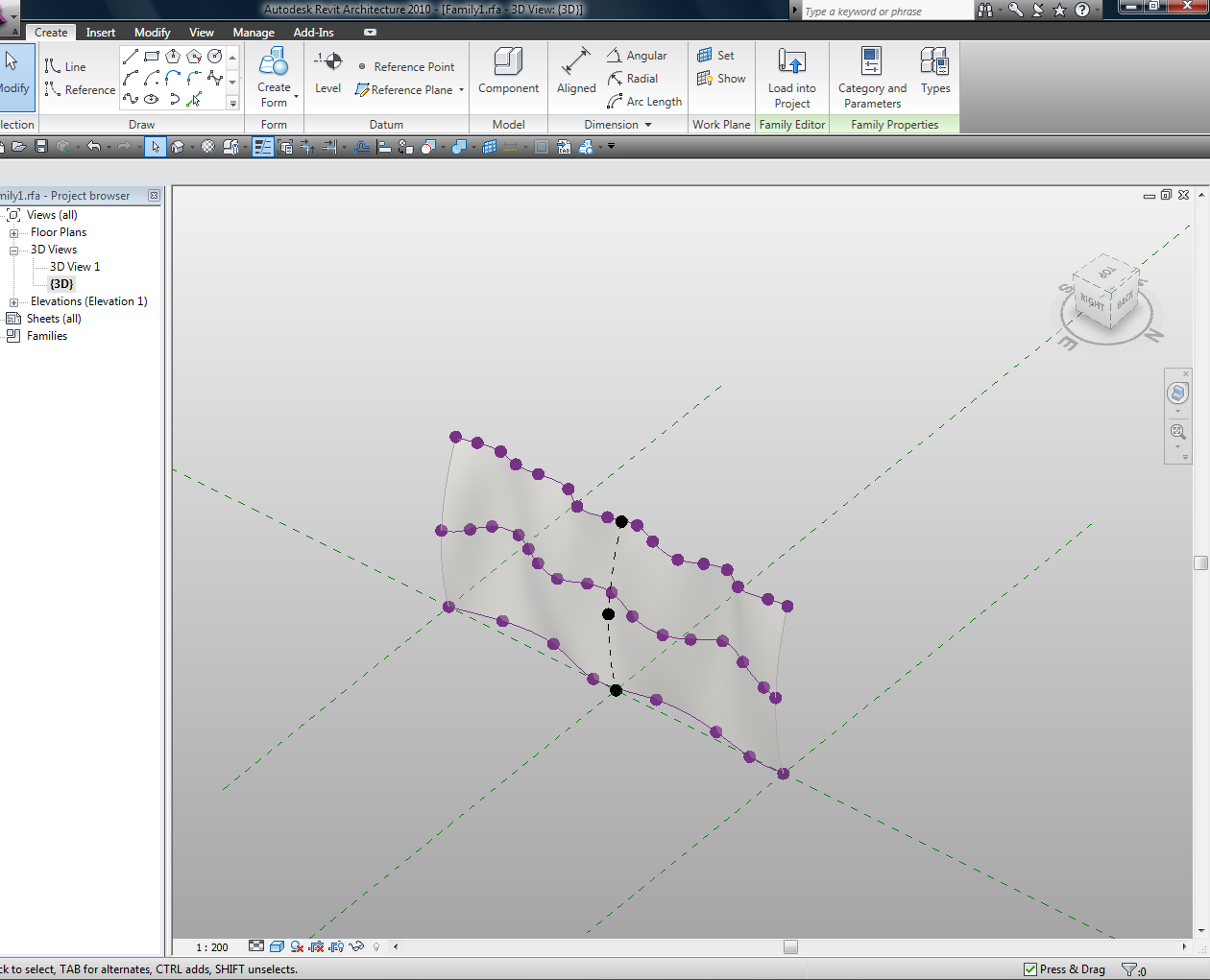

Seems it work with me... What kind of material did you apply to the object?





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Feb 15, 2010 at 12:22:39 PM | Mesh not rendering to scale???

#6

SirLyons


active
SirLyons Avatar

Joined: Sun, Mar 29, 2009
15 Posts
No Rating


That is the material I used.



Maybe I didn't make the form correctly?



I drew the three profile lines in section then created the form.

The lines where made using spline lines, maybe that has something to do with it.



I am still new at creating conceptual masses.


-----------------------------------
Fay Jones School of Architecture | University of Arkansas | Design Build | 4th Year

This user is offline

View Website

Mon, Feb 15, 2010 at 12:24:51 PM | Mesh not rendering to scale???

#7

SirLyons


active
SirLyons Avatar

Joined: Sun, Mar 29, 2009
15 Posts
No Rating


*Correction I used steal satin screen*



Not the steel satin course screen.


-----------------------------------
Fay Jones School of Architecture | University of Arkansas | Design Build | 4th Year

This user is offline

View Website

Mon, Feb 15, 2010 at 12:28:22 PM | Mesh not rendering to scale???

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

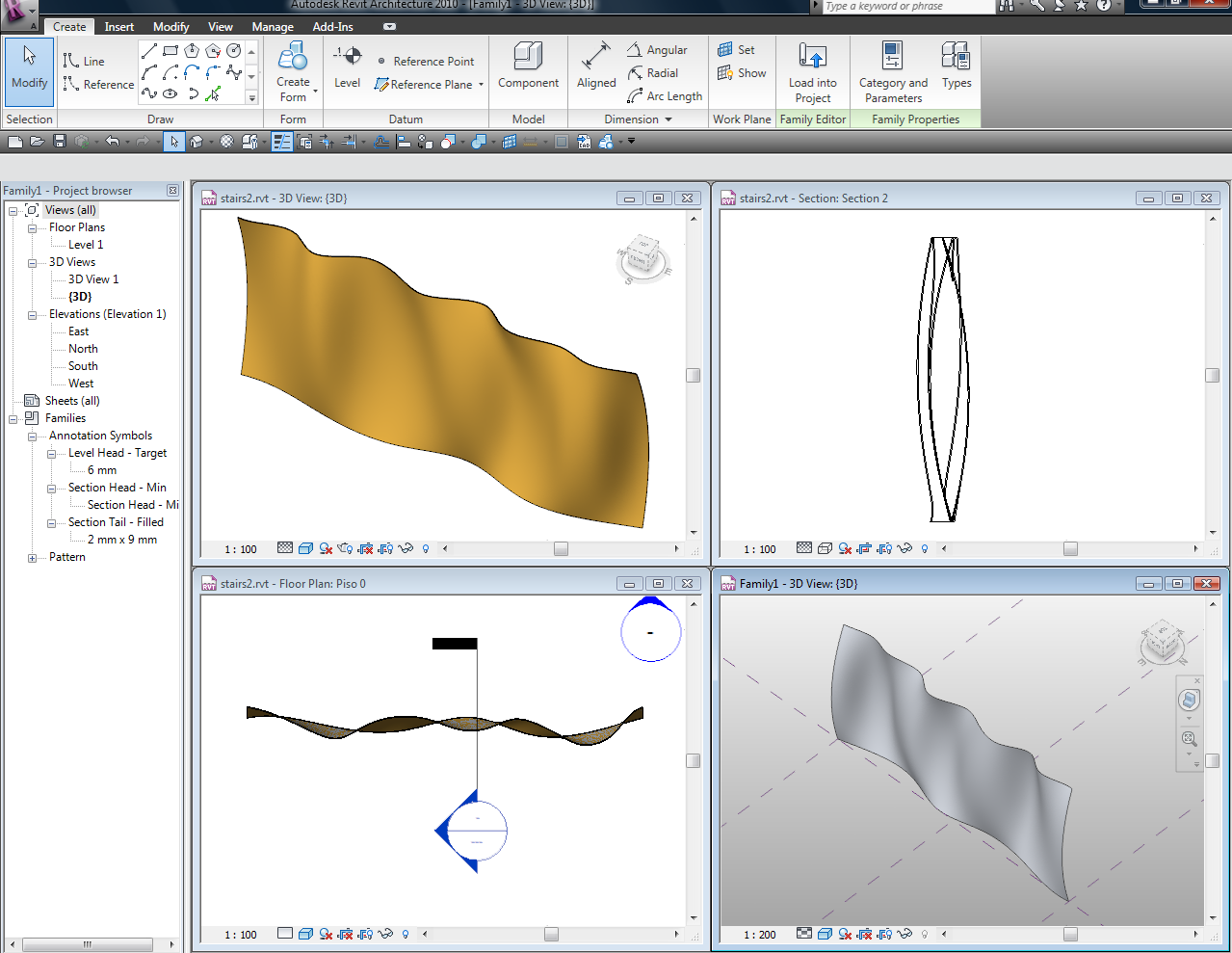

Like you can see in the image attached, i create that in the Conceptual mass with 3 splines too... can you put some  images in the conceptual mass and in project ONLY in 3D view with Shade with edges?







Edited on: Mon, Feb 15, 2010 at 12:39:50 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Feb 15, 2010 at 12:38:20 PM | Mesh not rendering to scale???

#9

SirLyons


active
SirLyons Avatar

Joined: Sun, Mar 29, 2009
15 Posts
No Rating


hmmm... Then I don't know what else to do.  Ill try rerending with the course material and see if that makes a difference.  Otherwise I am going to be making alot of holes.



Also is it possible to give the mess a solid depth to add dimension?


-----------------------------------
Fay Jones School of Architecture | University of Arkansas | Design Build | 4th Year

This user is offline

View Website

Mon, Feb 15, 2010 at 12:43:01 PM | Mesh not rendering to scale???

#10

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Yeah, pick in the mass then pick in "Create Form" again.... BTW can you put some  images in the conceptual mass and in project ONLY in 3D view with Shade with edges?

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
