Forums >> Revit Building >> Technical Support >> Problem creating trapezoidal edge panels for curtain wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Feb 10, 2010 at 11:52:14 PM | Problem creating trapezoidal edge panels for curtain wall

#1

cdsilva


active

Joined: Mon, Jan 11, 2010
11 Posts
No Rating


 using Revit Arch 2010

Hi, I've having trouble creating trapezoidal edge panels for a curtain wall. This particular design is a rectangular plan with an incline in one direction vertically. The front and back walls are therefore vertical parallelograms, with the side walls being inclined rectangles. Inserting custom typical curtainwall panels in both facade types went well. The edge panels for the inclined sides automatically shortened as needed. However, I cannot seem to create the trapezoidal panels for the edge panels of the front and back facades. When I replace a basic glazed panel with my custom panel for the front/back, an error message says that certain panels cannot be created, and it defaults back to the basic glazed panel. I tried to create a custom corner trapezoid panel, but it will not let me replace the panel in the model.

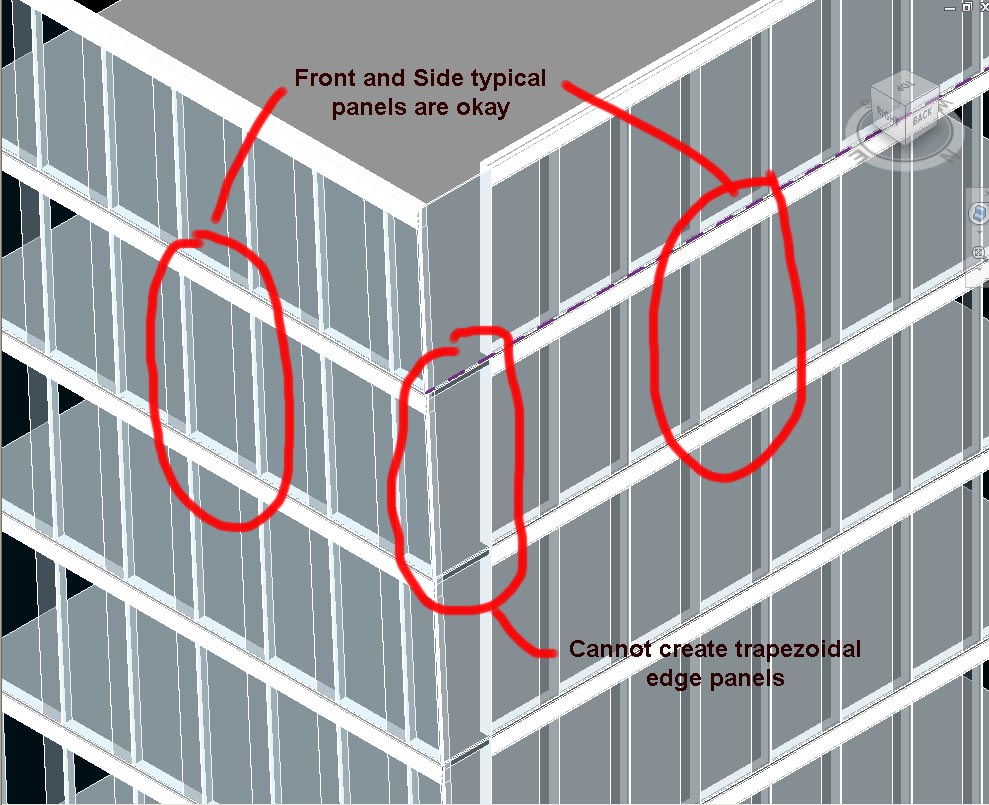

I have attached a screen shot, along with the typical panel and attempted corner panel families. What am I doing wrong? Thanks.



This user is offline



Thu, Feb 11, 2010 at 9:55:16 PM | Problem creating trapezoidal edge panels for curtain wall

#2

cdsilva


active

Joined: Mon, Jan 11, 2010
11 Posts
No Rating


Anyone?

I guess the basic question is whether it is possible to modify an orthagonal curtain wall panel to fit a trapezoidal edge module in a facade (besides the default glazed/solid panels)? Thanks.


This user is offline



Mon, May 9, 2011 at 2:14:16 PM | Problem creating trapezoidal edge panels for curtain wall

#3

stolramon


active

Joined: Wed, Jun 30, 2010
1 Posts
No Rating


I'm having the same problem. I was wondering if you have found a solution for this problem?


This user is offline



Mon, May 9, 2011 at 6:13:18 PM | Problem creating trapezoidal edge panels for curtain wall

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

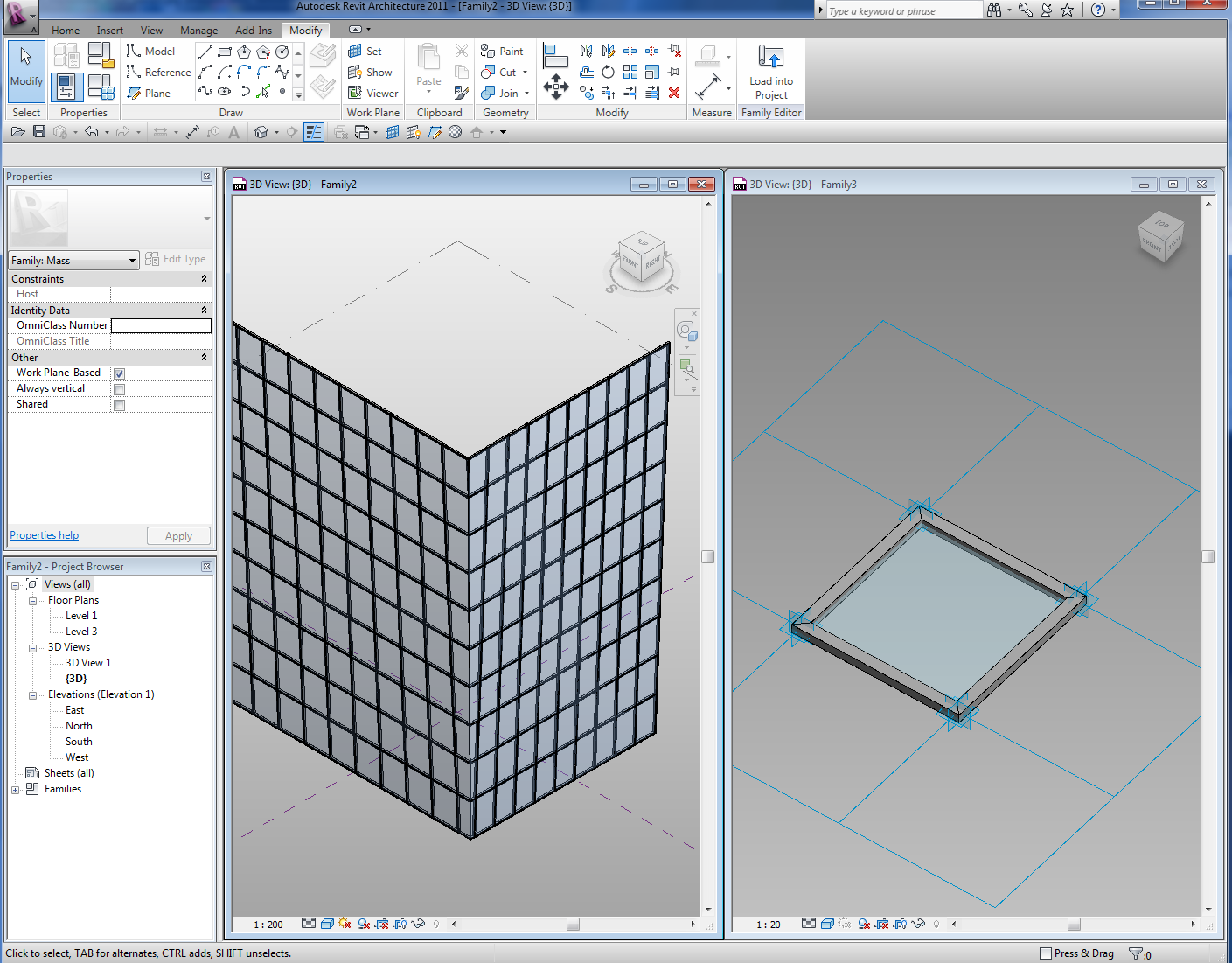

You will need to create that in the "Conceptual Mass" and also, you will need to create one panel in a family "Metric Curtain Panel Pattern Based" then you have what you want, check a simple example in my image.

 By the way, watch this guy: http://buildz.blogspot.com/





Edited on: Mon, May 9, 2011 at 1:19:42 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Mar 5, 2015 at 8:46:30 PM | Problem creating trapezoidal edge panels for curtain wall

#5

marco79revit


active

Joined: Wed, Apr 30, 2008
0 Posts
No Rating


could you send me thedouble panel please:



mbaldassari@handelarchitects.com


This user is offline
