I've read a bunch of posts on here saying that the only way to do a 3d sweep is by picking the edges of a mass. These posts were 2 years ago. I'm on Revit Architecture 2010. Have they made 3D sweeping any easier yet??? Revit is by far the most arduous modelling software I have ever worked with. The last thing I want to do is spend 4 hours trying to model a grab bar with a 45 degree angle. With any other program I've used, it could be done in 5 minutes flat.
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Obviously, a grab bar would be done in a family and you don't need a mass to do it... I can do that family in less tha 5 minutes...
|
This user is offline |
|
|
|
active
Joined: Thu, Oct 8, 2009
25 Posts
No Rating |
Can you explain how to model an angled grab bar as a family without a mass... in less that 5 minutes? Maybe my criticism of Revit's modelling capabilities was misplaced.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
here you have in less than 2 min. watch the video, isn't with 45 dgrees like you want but the process is the same, enjoy: http://www.megaupload.com/?d=32V4ABCB
Edited on: Thu, May 6, 2010 at 12:33:05 PM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Thu, Oct 8, 2009
25 Posts
No Rating |

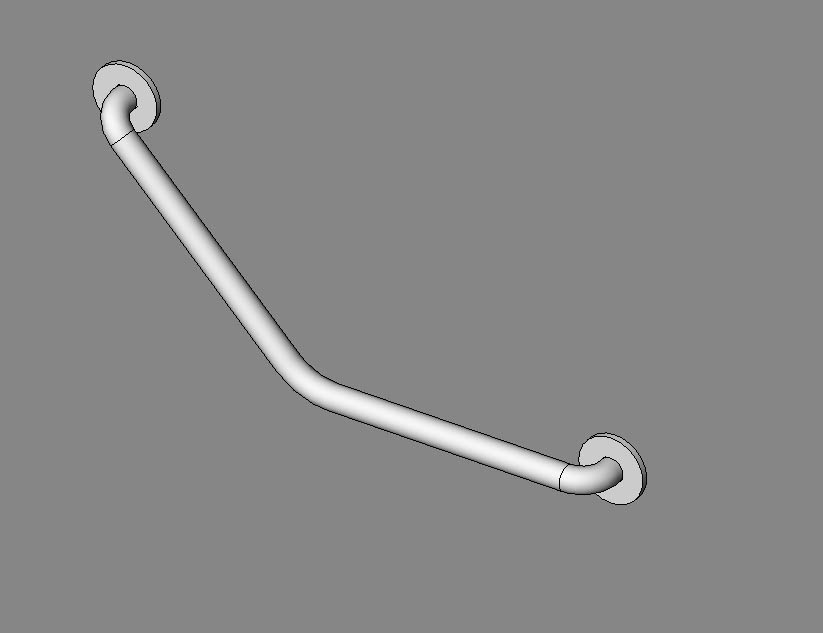

Thanks Typhoon, That was a good tutorial. However, the problem I'm having is how to create a sweep that follows a 3D path (as you demonstrated, a 2D sweep can be done very quickly)... As far as I know, the only way to do a 3D sweep path by using mass edges, which can take a LONG time for a complicated form. The attached image is the family that I ended up modelling. I did it in 3 parts, it took me much longer than 5 minutes. Maybe I'm going about things the wrong way, but Revit seems pretty arduous for modelling complex shapes. That being said, I've only ever used Rhino3D & Sketchup - both of which make complex modelling fast & easy... and cheap.
|
This user is offline |
|
|
|
site moderator|||
Joined: Fri, Feb 10, 2006
1874 Posts
|
i really don't think there is any such thing as a 2d sweep?
-----------------------------------
best regards, coreed,aia bmpArchitects,Inc. "Revit has to be implemented, Not installed." Long Live Revit |
This user is offline |
|
|
|
active
Joined: Thu, Oct 8, 2009
25 Posts
No Rating |
by 2d sweep, I mean: a sweep that follows a 2D path. Sorry.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Attached is a furniture family with a "3D" sweep and I did not use a mass. Perhaps you can learn from that if you edit the sweep.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
If you post that image before you save me the time of the first video, here you have in 3 min and 15 seconds, BTW, I worked in Rhino and Max too, they are very good softwares BUT they aren't PARAMETRIC.... http://www.megaupload.com/?d=1UP83MN7
Edited on: Thu, May 6, 2010 at 12:38:04 PM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Here you have another video using "a sweep that follows a 2D path" like you said: http://www.megaupload.com/?d=P5UQ66IG
Edited on: Thu, May 6, 2010 at 12:44:39 PM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
| |
|
|
active
Joined: Fri, Oct 17, 2008
68 Posts
|
Ty, Nice job man. It´s obvious you handle this soft pretty well.
-----------------------------------
.........................................................................
Not Sure What Revit Can Do?... Find it OUT!!!
“Imagination is more important than knowledge...” -Albert Einstein |
This user is offline |
View Website
|
|
|
active
Joined: Thu, Oct 8, 2009
25 Posts
No Rating |
"Attached is a furniture family with a "3D" sweep and I did not use a mass. Perhaps you can learn from that if you edit the sweep." Thanks WWHub This is exactly what I'm trying to do... However, when I click edit sketch, it says "Modify Picked Path > Sweep > Pick Path". This tells me that the path was done by picking the edges of a mass, but if you could teach me how you drew that without one, I would be very happy. Someone in another thread said that this couldn't be done, if I remember correctly.
|
This user is offline |
|
|
|
active
Joined: Thu, Oct 8, 2009
25 Posts
No Rating |
" If you post that image before you save me the time of the first video, here you have in 3 min and 15 seconds, BTW, I worked in Rhino and Max too, they are very good softwares BUT they aren't PARAMETRIC.... http://screencast.com/t/OTNiNmVmNzEt " Thanks Typhoon, Yeah sorry for the confusion. These are good tutorials. You have a good handle on this stuff.
|
This user is offline |
|
|
|
active
Joined: Thu, Oct 8, 2009
25 Posts
No Rating |
" "Attached is a furniture family with a "3D" sweep and I did not use a mass. Perhaps you can learn from that if you edit the sweep." Thanks WWHub This is exactly what I'm trying to do... However, when I click edit sketch, it says "Modify Picked Path > Sweep > Pick Path". This tells me that the path was done by picking the edges of a mass, but if you could teach me how you drew that without one, I would be very happy. Someone in another thread said that this couldn't be done, if I remember correctly. "
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
I did not use a mass but it was several years ago. Pre 2009, if you had edited this file, it would not just say modify path and we had line tools to add to the path. Ty's second video is very close to what I must have done then and that is a very good process. Just remember that as Ty shows near the end, you can rotate lines from a plane while being in another view not parallel with that plane. You can also copy and move lines from the plane they were created on while working in a view not normal to that original plane..
|
