Forums >> Revit Building >> Technical Support >> Vertical Mass Editing or Vertical Rotation

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Feb 1, 2010 at 6:23:28 PM | Vertical Mass Editing or Vertical Rotation

#1

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating

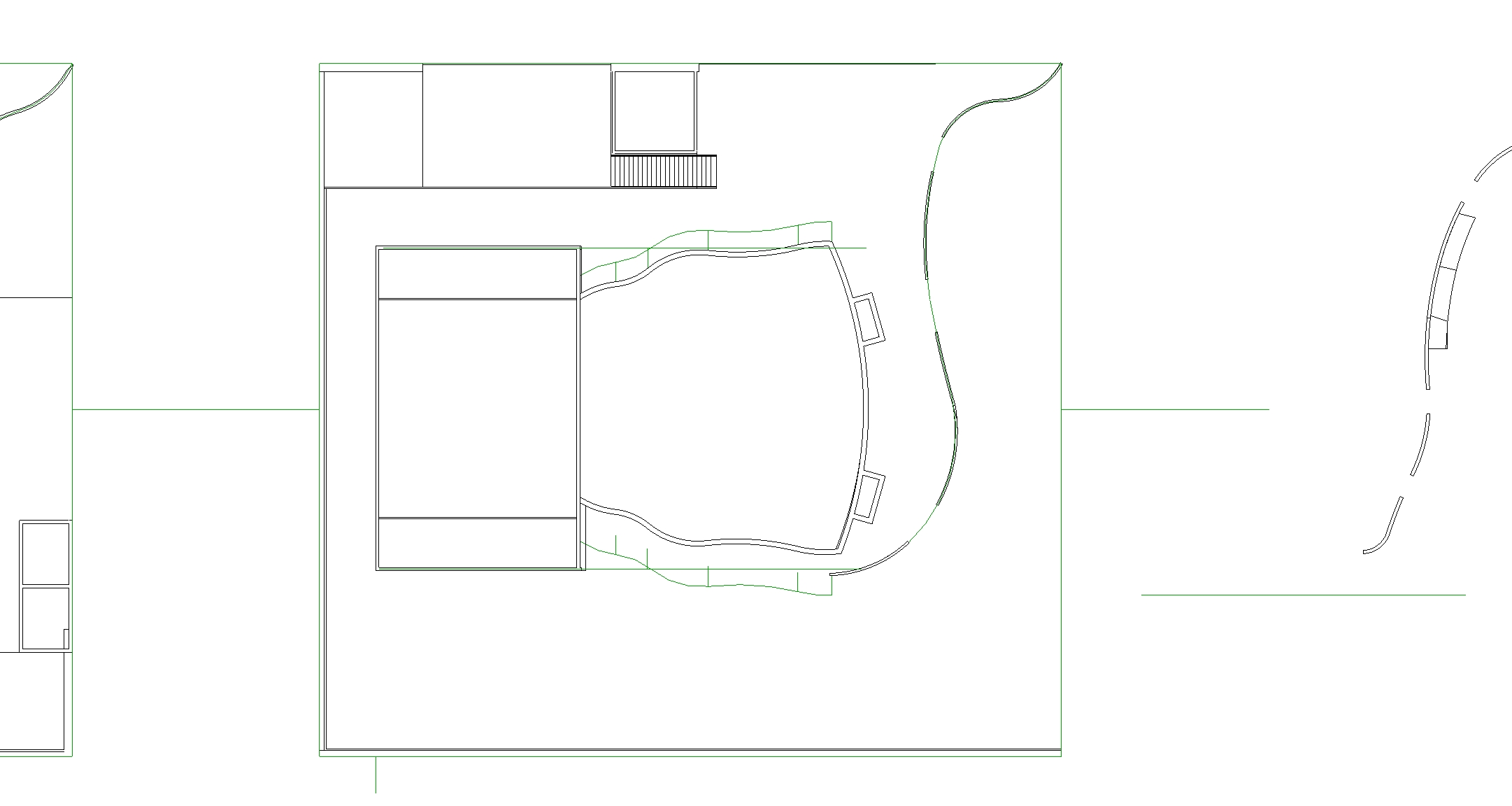

I am currently working on a Dance Theater project and my design requires things I've never done in Revit before.  I've included a couple of images here for reference.



What I am trying to do it create a mass/roof that follows the green model lines vertically, and the curved auditorium walls horizontally.  I figured that the best method for doing this would be to create a mass in the correct shape and then create a roo using that mass, but I cannot seem to model the shape.  I can't seem to get the massing tools to let me create a line in the vertical plane, or to let me select a vertical workplane.

So then I tried to simply rotate the group along the x-axis (lay it on it's side) and I cannot figure out how to do that.



Does anyone know how to either create the massing I need or rotate something along the x-axis?



Thanks in advance, here are those images:



Attached Images


This user is offline



Mon, Feb 1, 2010 at 6:42:19 PM | Vertical Mass Editing or Vertical Rotation

#2

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


Sorry for teh double post, didn't see how to edit my post.



I am using Revit 2010 64-Bit edition.


This user is offline



Mon, Feb 1, 2010 at 6:47:24 PM | Vertical Mass Editing or Vertical Rotation

#3

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


I'm looking for the second image and i ask: those lines (shapes) are symmetric? if so you don't need to create a mass for that, just create that roof by extrusion....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Feb 1, 2010 at 7:00:32 PM | Vertical Mass Editing or Vertical Rotation

#4

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


I'm sorry, but I don't understand what you mean.  I was under the impression that extrusion was a single level across the whole object.



Also, sorry for that last post, I refreshed and it reposted.  Still getting used to this message board system.


This user is offline



Mon, Feb 1, 2010 at 7:08:27 PM | Vertical Mass Editing or Vertical Rotation

#5

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


This is a roof by extrusion.. that's why i ask you IF those lines are Symmetric.....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Feb 1, 2010 at 7:30:03 PM | Vertical Mass Editing or Vertical Rotation

#6

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


They are symmetrical.  the issue is that I need it to also conform to the curved wall horizontally.  So far as I know, and I'm, probably wrong, the depth (y position) of the extrusion face cannot be varied, it has to be constant for the entire roof.



I need a way to vary it.


This user is offline



Tue, Feb 2, 2010 at 9:33:16 AM | Vertical Mass Editing or Vertical Rotation

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


I can't quite figured (by your images) how is the FINAL "Shape-Model" to your roof and YES="the depth (y position) of the extrusion face cannot be varied, it has to be constant for the entire roof." but if it's what i think, after you create your Roof by Extrusion, pick in the roof and in the options bar you have a button "Vertical Opening" (i think this is the right name - i don't have Revit here right now) where you can cut in a plan view that roof by extrusion with the shape you want in Plan....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Feb 2, 2010 at 6:08:27 PM | Vertical Mass Editing or Vertical Rotation

#8

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


That worked ^^  Thank you very much.



Now I'm having troubles getting the walls below the roof to attach to it.  I select the wall, then the roof and it immediately tells me that it can't keep the two object joined.  It works for most of the walls, but there are a couple that it doesn't work for.



Any thoughts as to why that might be?


This user is offline



Tue, Feb 2, 2010 at 6:27:58 PM | Vertical Mass Editing or Vertical Rotation

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


In "Modify" tab try to "Detach" and/or "Unjoin" those walls then try to attach again....





Edited on: Tue, Feb 2, 2010 at 1:23:13 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Feb 2, 2010 at 8:44:54 PM | Vertical Mass Editing or Vertical Rotation

#10

PatrickReynolds


active
PatrickReynolds Avatar

Joined: Tue, Oct 28, 2008
40 Posts
No Rating


Figured it out.  the wall was just barely outside of the roof area, so it wouldn't attach.  Thank you for all the help, I think I got it to where I want it.







Attached Images

71950_Model_003.tif

This user is offline



Mon, May 13, 2013 at 8:39:21 AM | Vertical Mass Editing or Vertical Rotation

#11

cryimage


active

Joined: Mon, May 6, 2013
2 Posts
No Rating


how about an image edting tool for you,  it has all kinds of image processing with c# vb. you might find it is useful.
