Forums >> Revit Building >> Technical Support >> Sill plate?

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jan 28, 2010 at 3:22:08 AM | Sill plate?

#1

Arch145763


active

Joined: Wed, Dec 2, 2009
19 Posts
No Rating


Im trying to attach a sill plate and rim board to a foundation wall. If there is an easier way to do this I would appreciate any additional information but here is my issue.

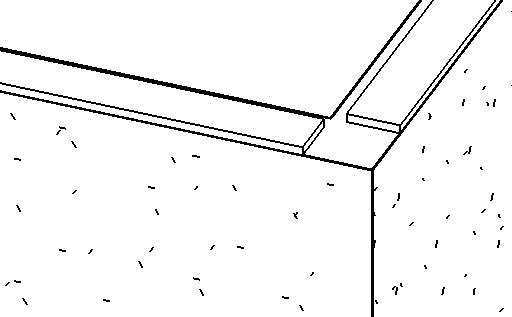

 I loaded dimentional lumber from the structural framing family, I place the sill plate on the wall but it draws it to the inside corner of the wall so the sill plate does not extend to the edge of the foundation wall. I try to align the wall and sill plate but it does not allow me to do it and no error comes up. How do i get the sill plate to go all the way around the top of the foundation wall?





Attached Images


This user is offline



Thu, Jan 28, 2010 at 1:05:51 PM | Sill plate?

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 378 Votes


Most people never model elements that are within a wall.  We just add them as detail components in sections and details.

This user is offline



Thu, Jan 28, 2010 at 1:08:22 PM | Sill plate?

#3

HDDWG2003


active
HDDWG2003 Avatar

Joined: Tue, Feb 19, 2008
71 Posts
3.5 Stars: 11 Votes


You can try making the sill plate with a sweep.

This user is offline



Thu, Jan 28, 2010 at 3:26:44 PM | Sill plate?

#4

TKennedy


active

Joined: Wed, Oct 7, 2009
654 Posts
4 Stars: 7 Votes


When I was doing wood framing I created a profile family that I could place inside the wall for sill and double top plates. I seem to remember putting a dimensional lumber section detail component in the profile, but I can't remember exactly why. I think It had to do with making it look right in a section view.

This user is offline



Thu, Jan 28, 2010 at 11:10:16 PM | Sill plate?

#5

jarosa


active
jarosa Avatar

Joined: Tue, Feb 19, 2008
251 Posts
4 Stars: 5 Votes


Use the align tool. Select the o/s of the wall. Hover over the end of the sill plate. Click tab until you get the shape handle. Select the shape handle.

OR -

Add a sweep to the wall in the type properties. That way when you add, move walls there won't be any extra work.
