Tue, Jan 26, 2010 at 1:49:15 PM | Metalic Structure in Revit Architecture

#1

vrijaya


active

Joined: Fri, Jun 26, 2009
10 Posts
No Rating


I am trying to build a simple metallic structure in Rac.

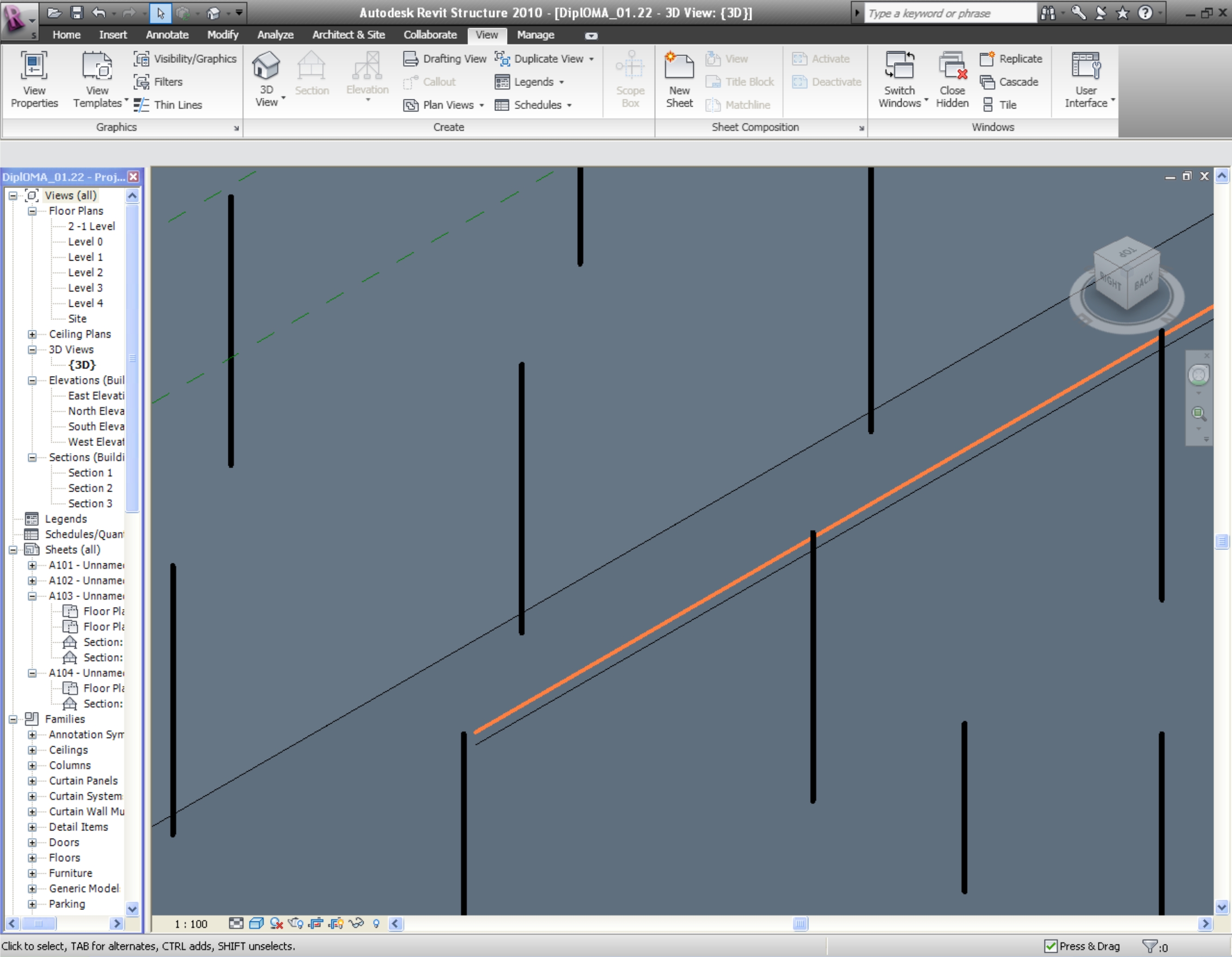

The problem is that I cannot see the columns, beams and braces as they are in 3d view or even plan view. I see only thin lines. [picture attached]

I opened the project with Revit Structure and I have the same problem. Only if I copy the structure to another new folder it seems to be right. So, I concluded that the problem in inside the file setting but I cannot imagine where should I look.

I need the file for 3dmax and as I import FBX from Revit the metallic structure disappears completely.



I use R Architecture 2010 and R Structure 2010.



Attached Images


-----------------------------------
Veronica

This user is offline



Tue, Jan 26, 2010 at 2:00:14 PM | Metalic Structure in Revit Architecture

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 378 Votes


You need to spend some time understanding VG.  Turn on/off the various switches under structural for analytical model / stick symbols.

This user is offline



Tue, Jan 26, 2010 at 2:13:55 PM | Metalic Structure in Revit Architecture

#3

vrijaya


active

Joined: Fri, Jun 26, 2009
10 Posts
No Rating


I switched on all the analytical model and stick symbol concerning structure, it doesn't help...

-----------------------------------
Veronica

This user is offline



Tue, Jan 26, 2010 at 4:11:46 PM | Metalic Structure in Revit Architecture

#4

vrijaya


active

Joined: Fri, Jun 26, 2009
10 Posts
No Rating


I have detected the problem, the detail level was coarse that's why I couldn't see some of the objects...

Now everything works just fine. Smile


-----------------------------------
Veronica

This user is offline



Fri, Dec 3, 2010 at 7:10:10 PM | Metalic Structure in Revit Architecture

#5

jsuarezn89


active

Joined: Wed, Mar 10, 2010
2 Posts
No Rating


Please!! i need some help doing an structure... I can,t Make Atached Beams or Frames To my complez roof... And i think i dont have to make then one by one.. I just need some help, i dont know how to work structure like that.. I just atached a file 4 u..
